Sony VPL-CS5 Service Manual

1-2
VPL-CS5/CX5
1 Six shafts
4 H1 board
3 Button (H1) assy
5 Top panel assy
2 Two screws
(+B 3 x 6)

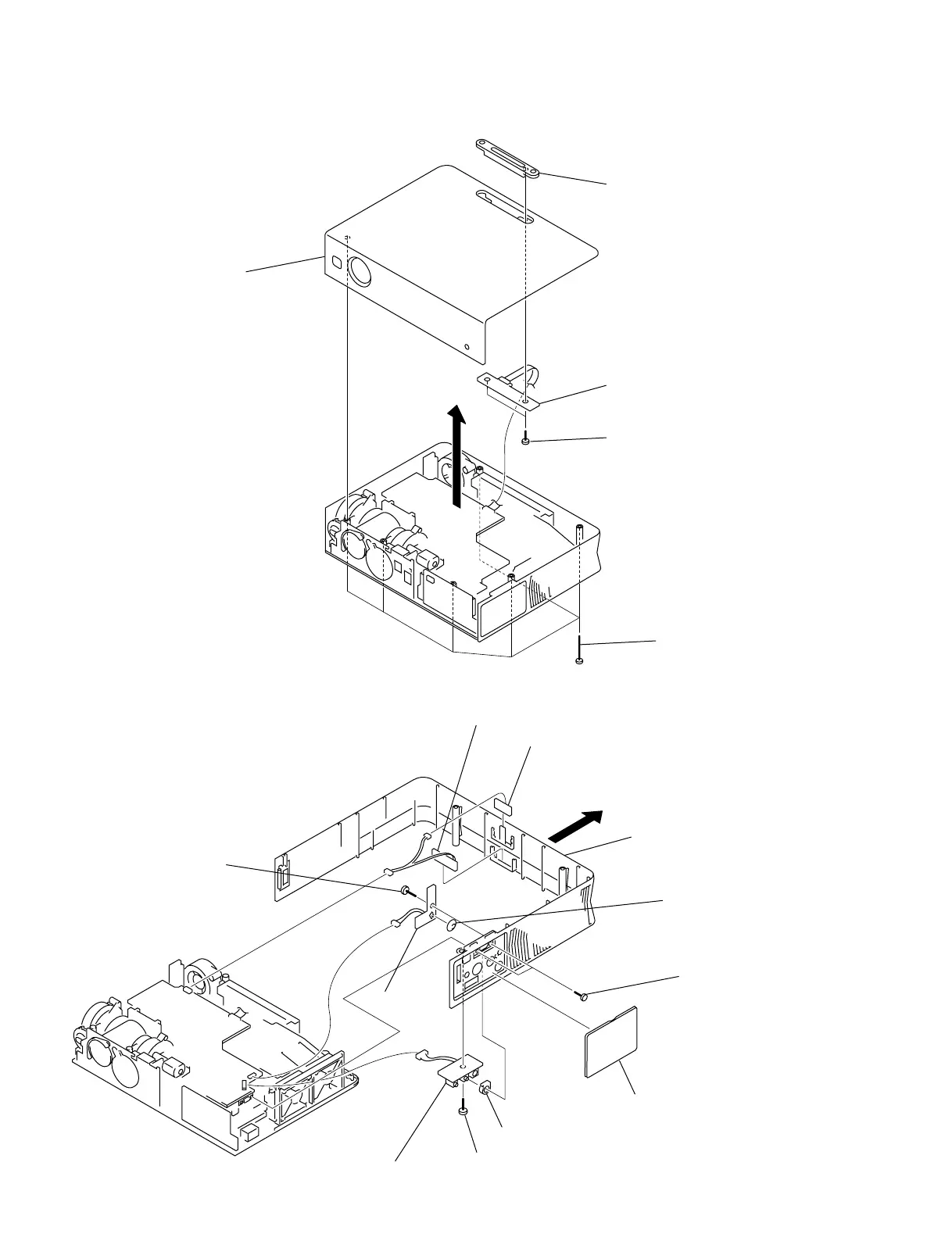

1-2. Disassembly
1-2-1. Top Panel Assy Removal
1-2-2. Side Panel Assy and L, NR, H2, Q Boards Removal
7 Button (H2)
2 Two screws
(+B 3 x 6)
6 Screw
(+B 3 x 6)
9 Screw
(+B 3 x 6)
3 Side panel assy
8 H2 board
1 Connector cover
!- Q board
0 Video sleeve
4 L board
5 NR board
CN914
CN915
CN201
