Sony VPL-CS5 Service Manual

1-3
VPL-CS5/CX5

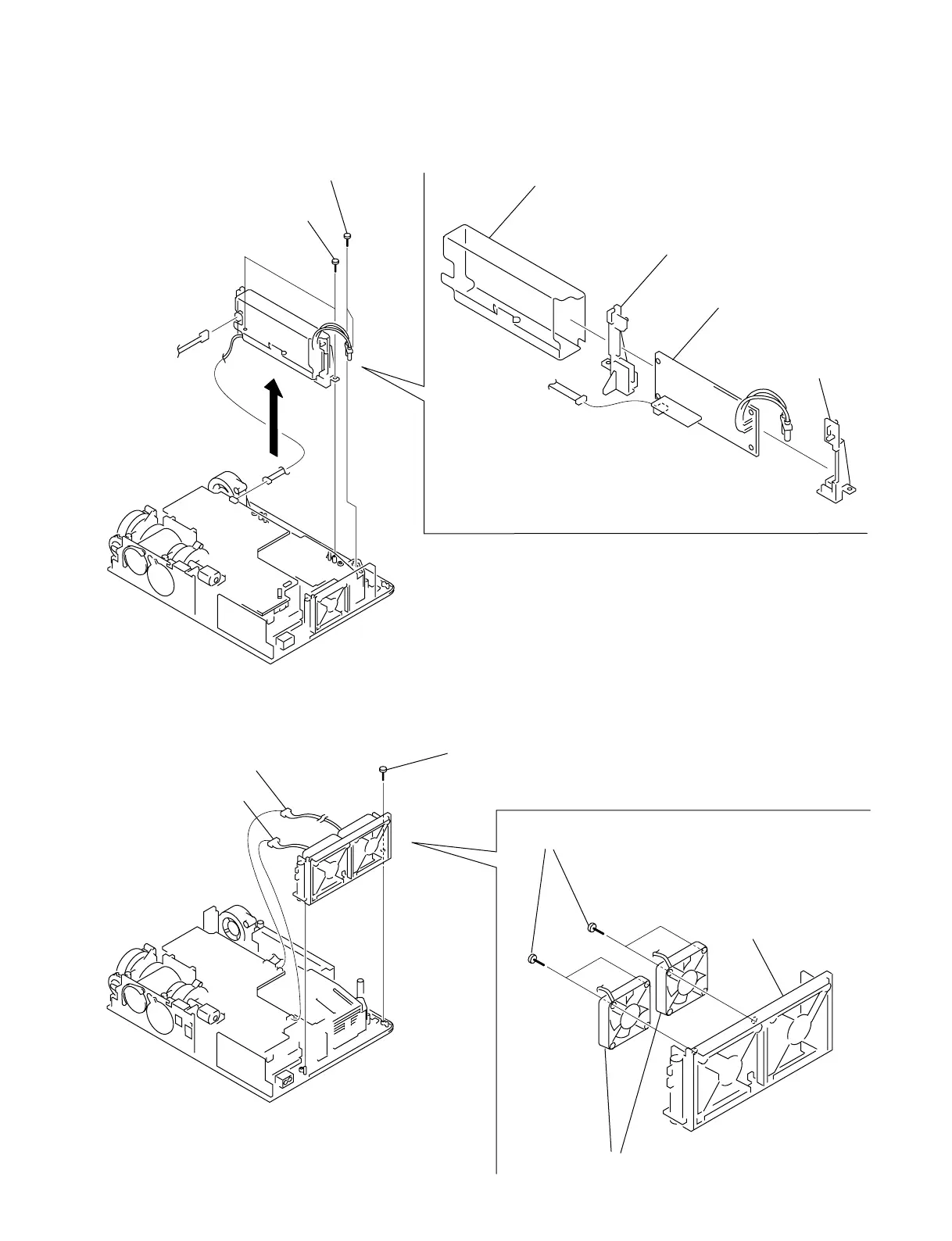

1-2-3. Power Block (Lamp) Removal
3 Holder (LPS2)
4 Holder (LPS1)
5 Sheet (LPS)
6 Power block (Lamp)
1 Two screws
(+PTPWH 3 x 10)
CN1
CN1
CN907
2 Two screws
(+B 3 x 6)
1-2-4. DC Fan Removal
4 Fan holder (EX)
CN908
CN909
3 Two DC fans
2 Four screws
(+B 3 x 20)
1 Screw
(+B 3 x 6)
