Sony VPL-CS5 Service Manual

1-11
VPL-CS5/CX5

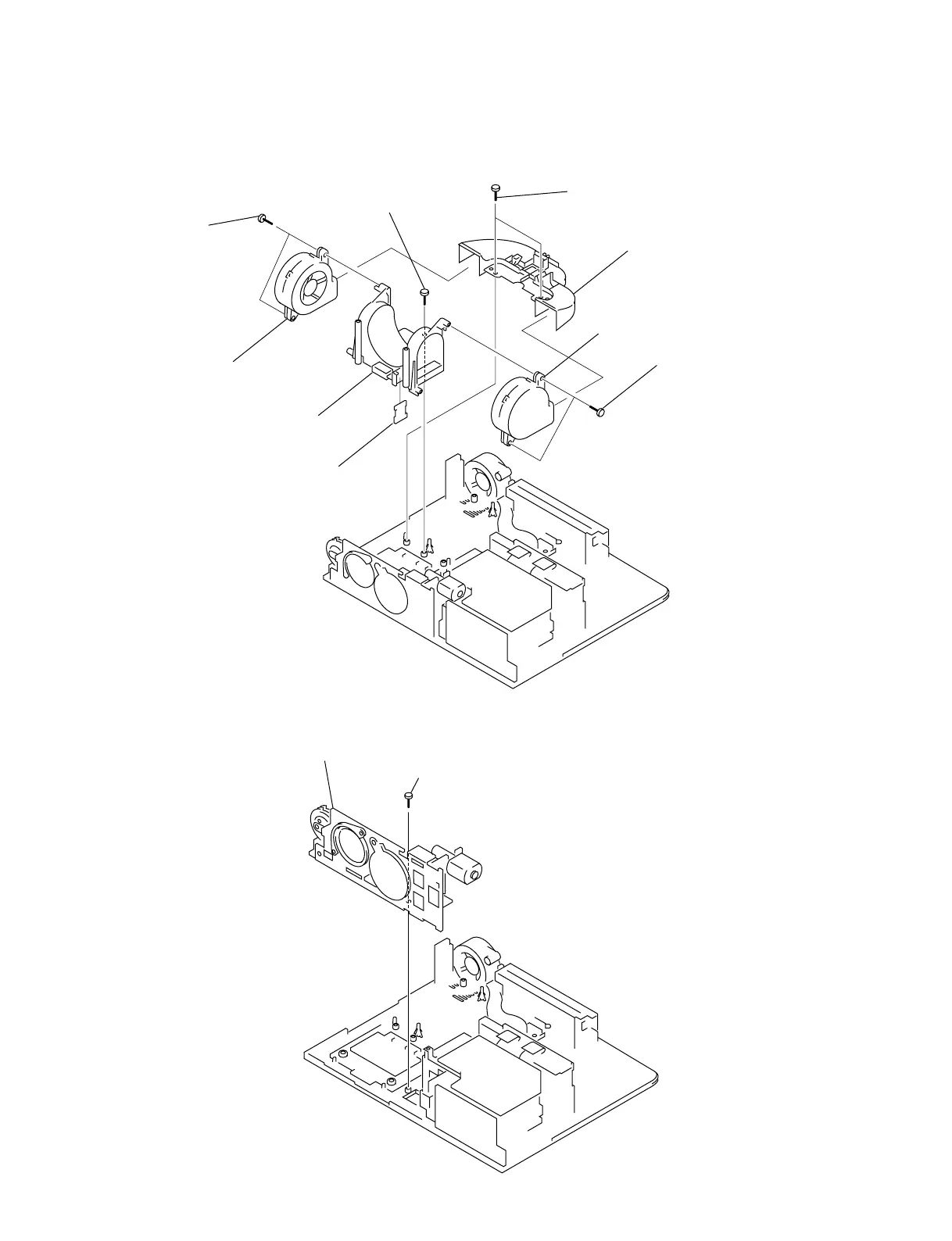

1-2-14. DC Fan (Sirocco) and V Board Removal
To remove the DC fan (sirocco) and V board, remove the C board, optics block assy, lamp assy
and prism block assy beforehand.
2 Prism duct
8 DC fan (sirocco)
7 Two screws
(+BTB 3 x 12)
1 Two screws
(+B 3 x 6)
3 Screw (+B 3 x 6)
6 DC fan (sirocco)
9 Fan holder (IN)
4 V board
5 Two screws
(+BTB 3 x 12)
1 Screw (+B 3 x6)
2 Adjustor unit, Lens gear
1-2-15. Adjustor Unit Removal
To remove the adjustor unit, remove the C board, lamp assy, prism block assy and DC fan
(sirocco) beforehand.

Sony VPL-CS5 Specifications

General

Contrast Ratio	400:1
Display Type	LCD
Projection Technology	3 LCD
Lamp Life	2000 hours (standard mode), 3000 hours (economy mode)
Projection Distance	10.2 m
Lamp Type	UHP
Projection Size	30 - 300 inches
Input Ports	S-Video
