Sony VPL-CS5 Service Manual

1-9
VPL-CS5/CX5

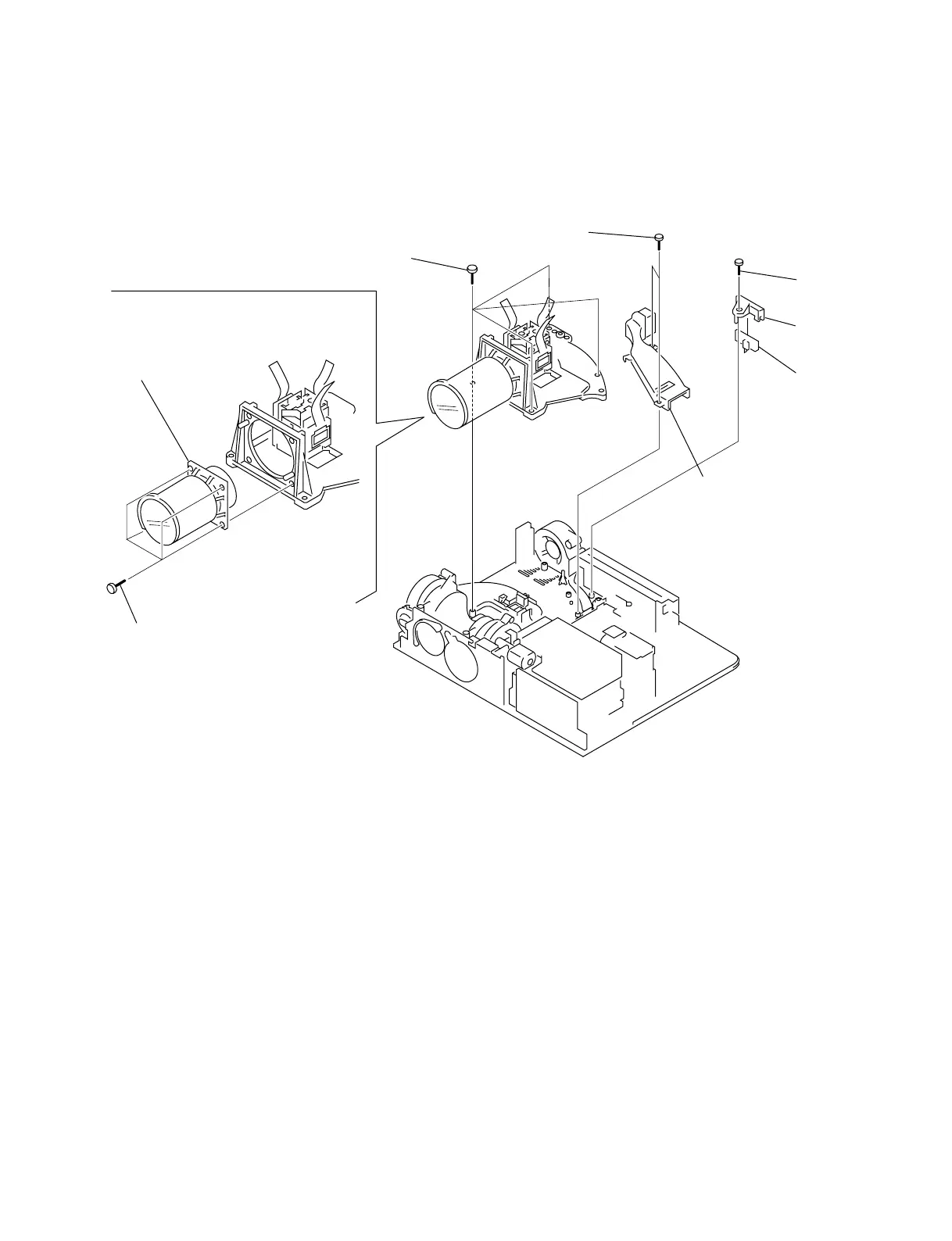

1-2-12. Lens Projection Assy and Lamp Duct Assy Removal
To remove the lens projection assy and lamp duct assy , remove the C board, optics block assy and lamp assy
beforehand.
5 Lamp duct assy
3 Lens projection assy
1 Four screws
(+B 4 x 12)
2 Four screws
(+BSW M3 x 8)
4 Two screws
(+B 3 x 6)
6 Screw
(+B 3 x 6)
7 Holder U
8 U board

Sony VPL-CS5 Specifications

General

Contrast Ratio	400:1
Display Type	LCD
Projection Technology	3 LCD
Lamp Life	2000 hours (standard mode), 3000 hours (economy mode)
Projection Distance	10.2 m
Lamp Type	UHP
Projection Size	30 - 300 inches
Input Ports	S-Video
