43
Specifications
Others

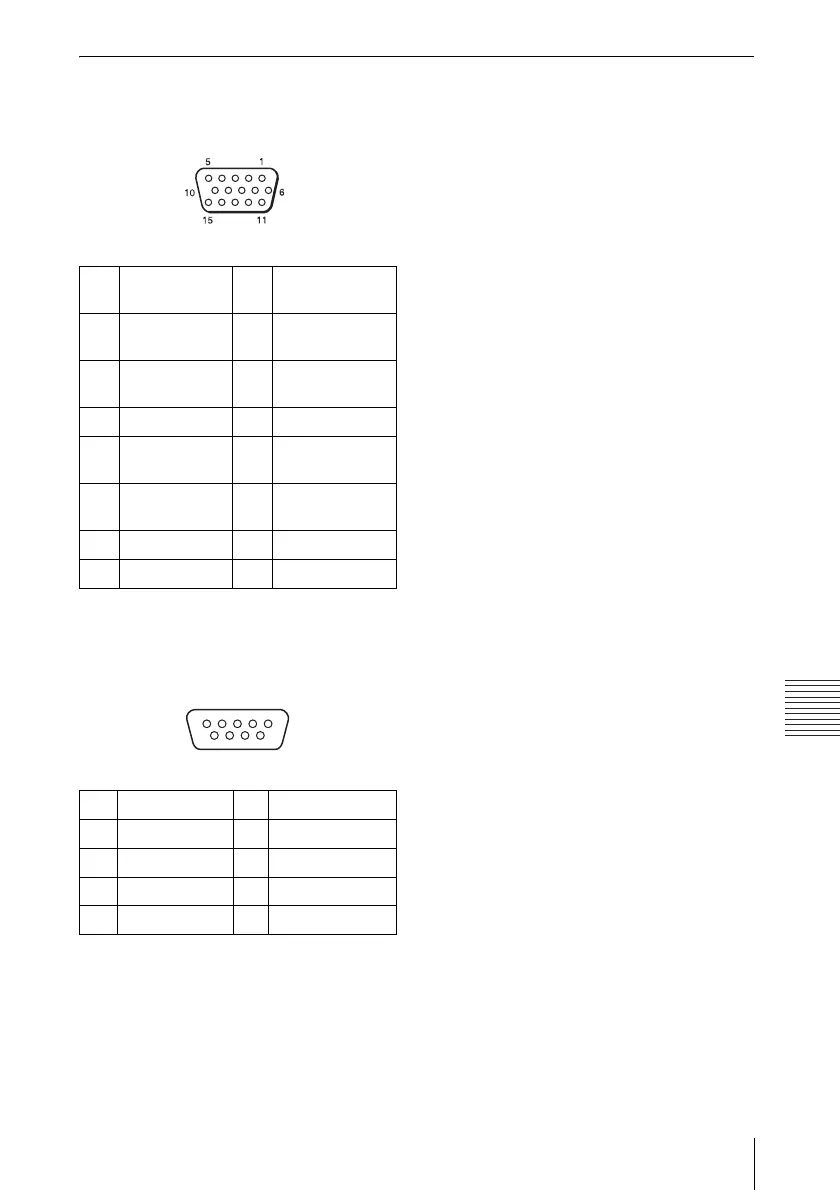

Pin assignment
RGB input connector (Mini D-sub
15-pin, female)
RS-232C connector (D-Sub 9-pin,
female)
1 Video input
(red) R
9 Power supply
input for DDC
2 Video input
(green) G
10 GND
3 Video input
(blue) B
11 GND
4 GND 12 DDC/SDA
5 RESERVE 13 Horizontal sync
signal
6 GND (R) 14 Vertical sync
signal
7 GND (G) 15 DDC/SCL
8 GND (B)
1NC 6NC
2RXDA 7RTS
3TXDA 8CTS
4DTR 9NC
5 GND
51
9
6
