Sony VPL-CW255 - Connecting a Video Equipment

8
Connecting the Projector
Connections with a VHS video deck, DVD player, or BD player are explained for each input
signal.
S VIDEO IN
For connecting video equipment with an S-video output connector.
VIDEO IN
For connecting video equipment with a video output connector.
INPUT A
For connecting video equipment with a YPBPR output connector.

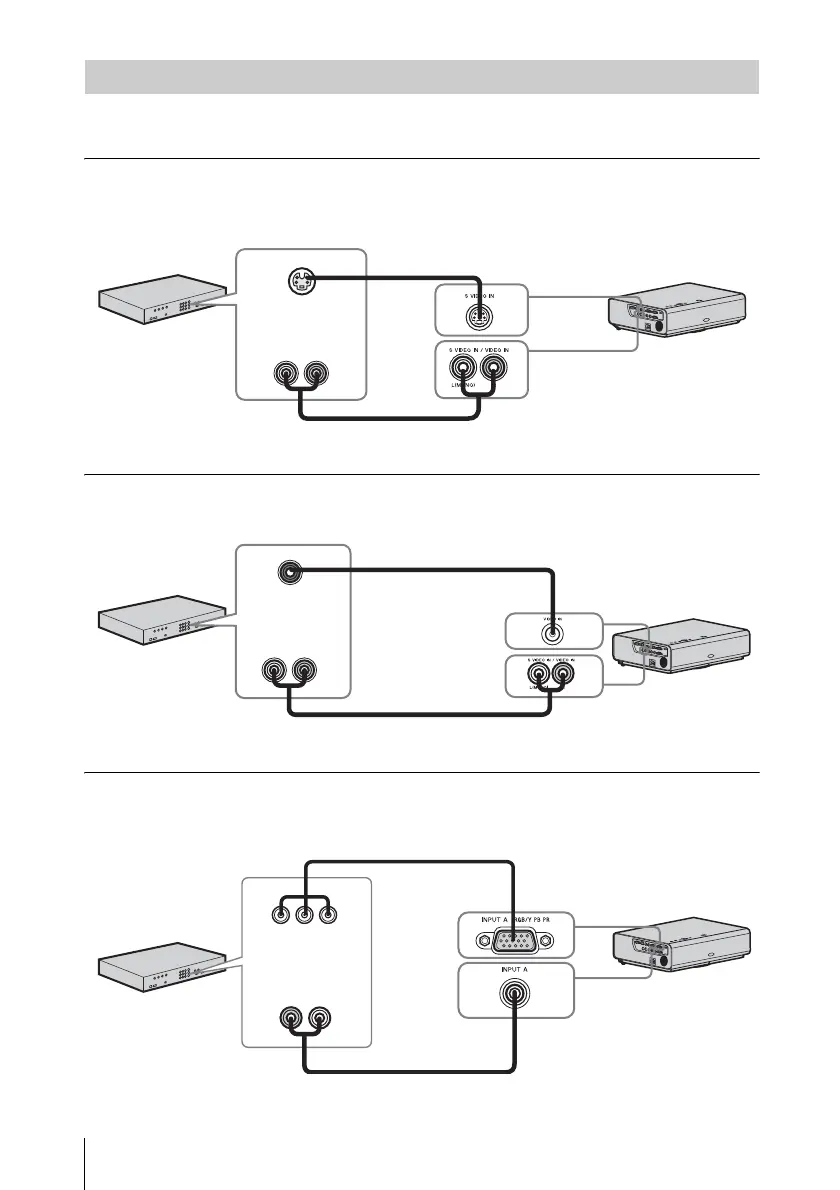

Connecting a Video equipment
S video cable
(not supplied)
Audio cable (Phono plug × 2) (not supplied)
S video output
connector
Audio output
connector
Video equipment
Video cable (not supplied)
Audio cable (Phono plug × 2) (not supplied)
Video output
connector
Audio output
connector
Video equipment
Component – Mini D-sub 15-pin cable (not supplied)
Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)
Video equipment
YP
BPR output
connector
Audio output
connector
