Specifications
Others
F = 2.0
f = 13.1 mm
Manual focus
Projection screen size
60 to 300-inches
Projection distance
100 inches: 1590 mm
200 inches: 3250 mm
300 inches: 4910 mm
Maximum external dimensions
130 × 130 × 242 mm (W × H ×
D)
Weight
1500 g
Middle focus zoom lens VPLL-Z1024
F = 2.0 - 2.3
f = 37.8 to 54.3 mm
Powered focus/zoom
Projection screen size
40 to 600-inches
Projection distance
100 inches: 4840 to 6630 mm
200 inches: 9770 to 13350 mm
300 inches: 14700 to 20060 mm
Maximum external dimensions
97 × 87 × 180 mm (W × H × D)
Weight
1140 g
Long focus zoom lens VPLL-Z1032
F = 2.0 to 2.4
f = 52.6 to 84.3 mm
Powered focus/zoom
Projection screen size
40 to 600-inches
Projection distance
100 inches: 6580 to 10060 mm
200 inches: 13310 to 20240 mm
300 inches: 20040 to 30430 mm
Maximum external dimensions
97 × 87 × 177 mm (W × H × D)
Weight
1140 g
Some of the items may not be available in
some areas. For details, please consult your
nearest Sony dealer.

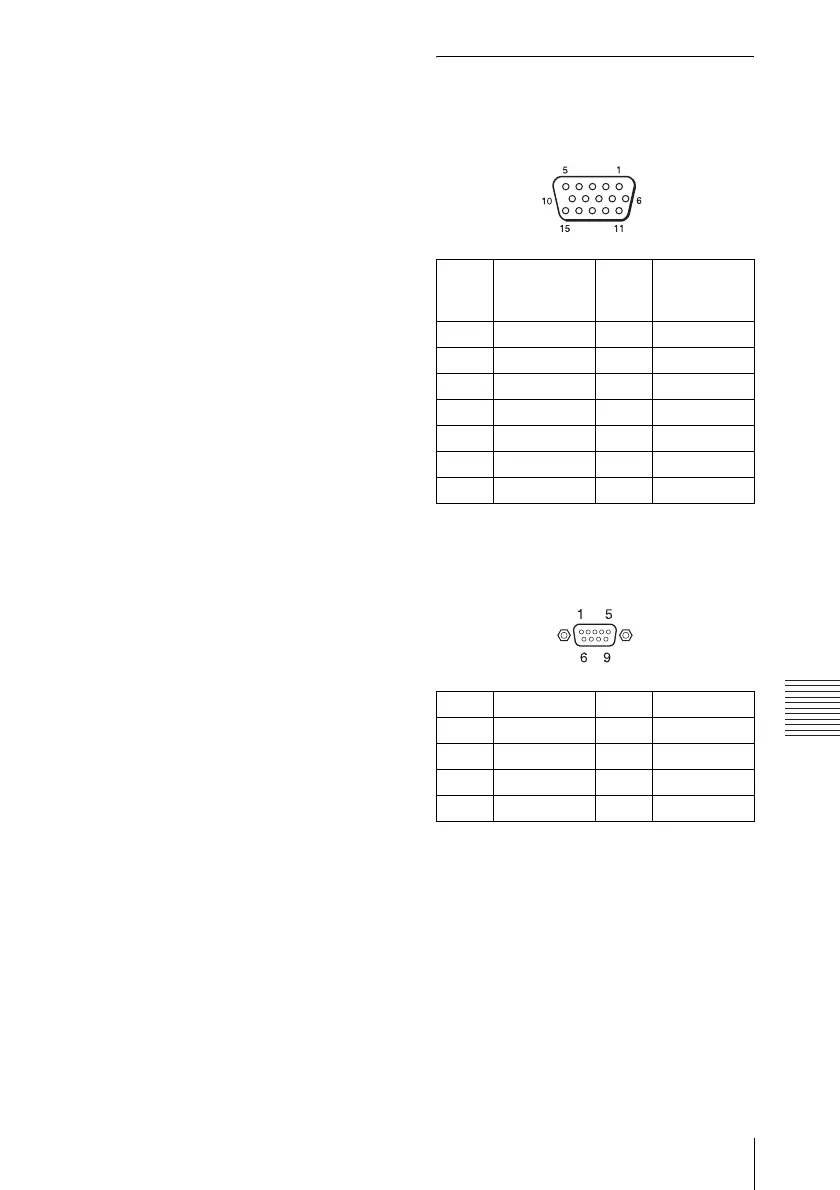

Pin assignment
INPUT A/B
RGB connector (HD D-sub 15-pin,
female)
REMOTE
RS-232C connector (D-sub 9 pin,
female)
1R/R-Y 9Power
supply input
for DDC
2G/Y 10GND
3B/B-Y 11GND
4 GND 12 DDC/SDA
5 GND 13 HD/C.Sync
6 GND (R) 14 VD
7 GND (G) 15 DDC/SCL
8 GND (B)
1DCD 6DSR
2RXDA 7RTS
3TXDA 8CTS
4DTR 9RI
5 GND
