62 Location of Controls

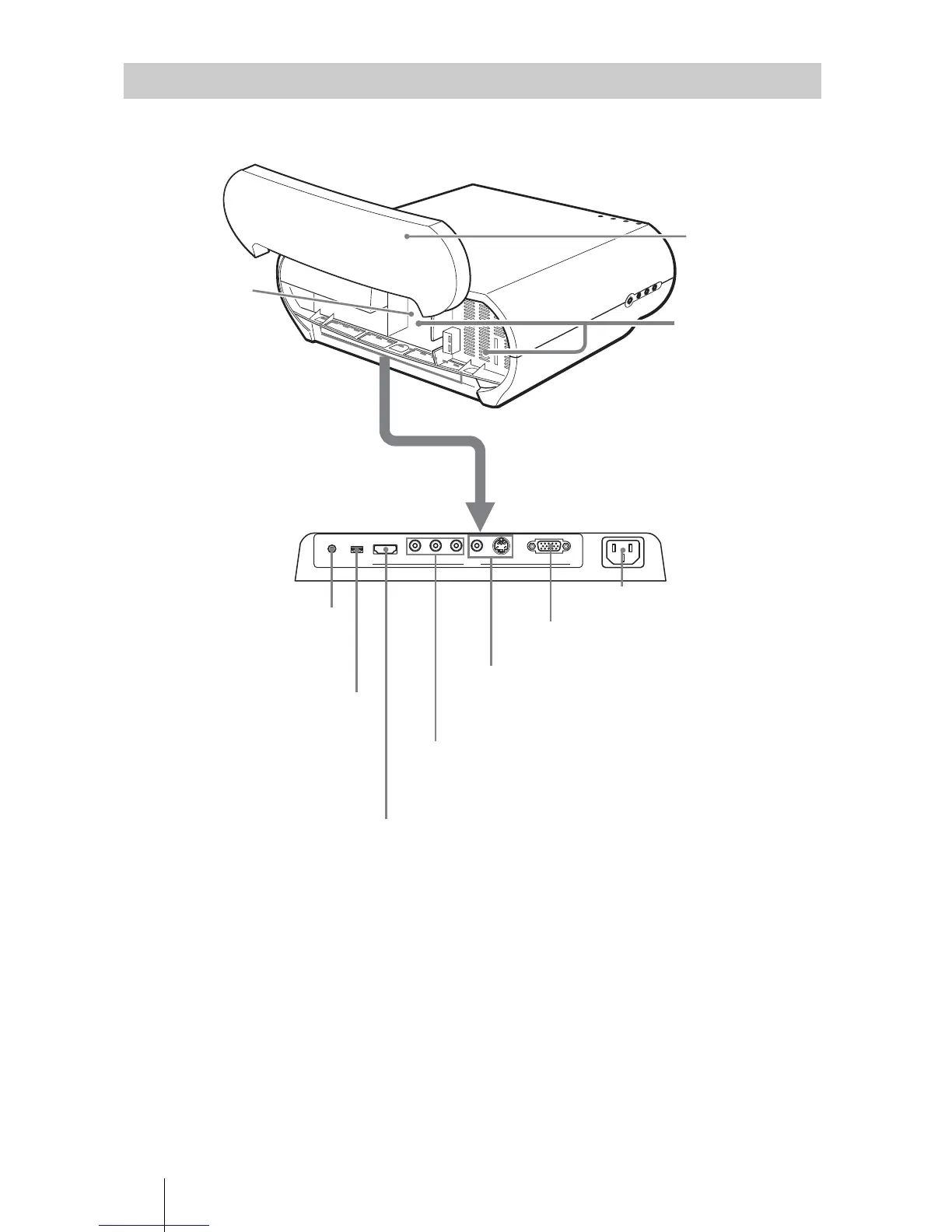

Rear
S VIDEO INPUT A
AC IN
Y
PB/CB PR/CR VIDEO
HDMI
TRIGGER
USB
INPUT
Air filter
(1 page 50)
Air fliter cover
(1 page 50)
Ventilation
holes (intake)
(1 page 9)
TRIGGER jack (minijack)
Outputs a 12 V signal
when the power is on.
~ AC IN socket
HDMI connector (1 page 14)
Y/P
B/CB/PR/CR (phono type) (1 page 13)
INPUT A connector (1 page 16)
S VIDEO INPUT connector (mini DIN 4-pin)/
VIDEO INPUT jack (phono type) (1 page 15)
USB connector (VPL-HS51 only)
Connects to a computer with the
USB cable (A y mini-B: not
supplied) when performing
“Gamma Correction” using the
specified controller,
“ImageDirector.” (1 page 38)
