1-5 (E)
VPL-VW520

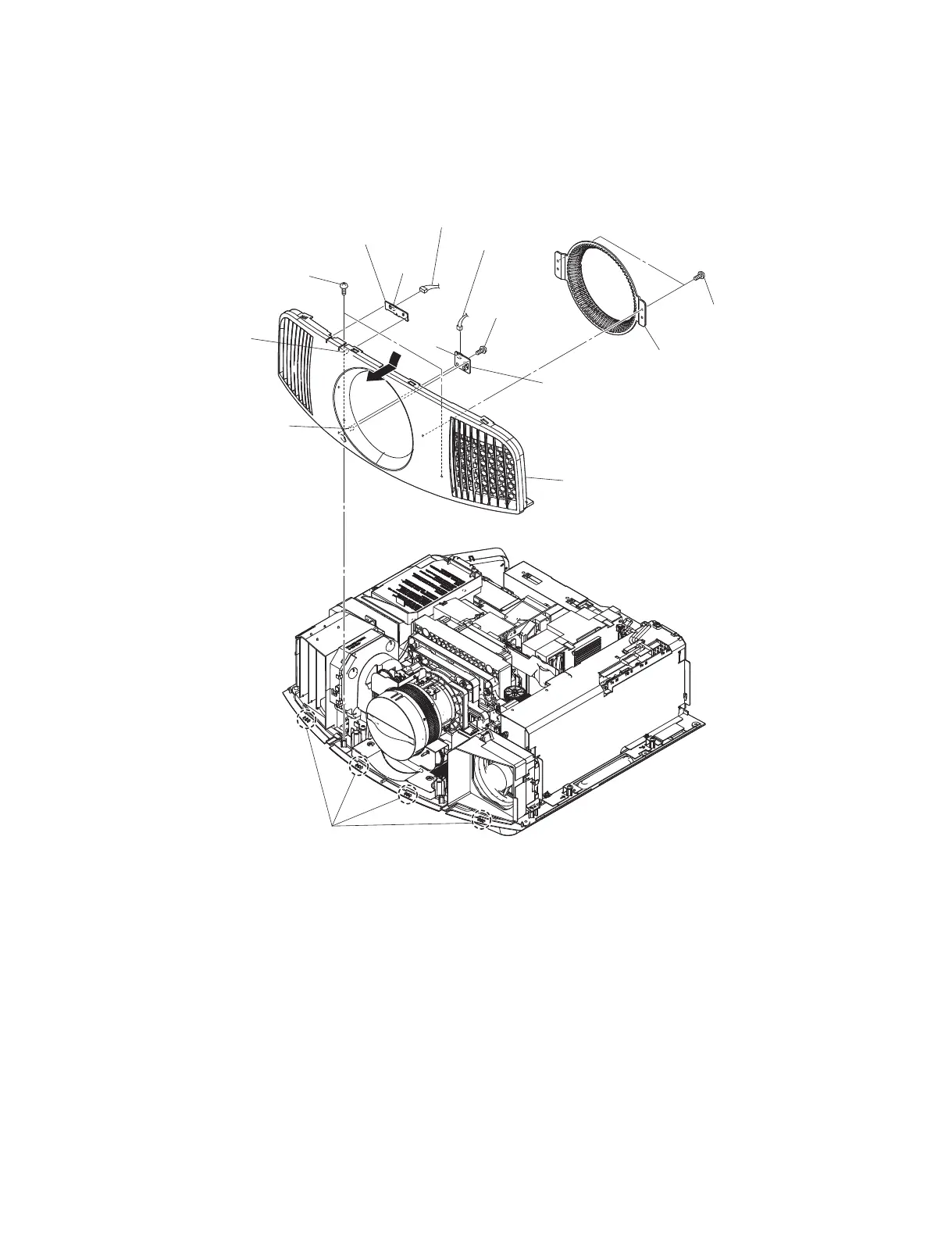

1-4-2. Front Panel Assembly/NF Board/HB Board
. Remove the top cover assembly and rear cover assembly. (Refer to Section 1-4-1.)
CN50
CN40
1 Two screws
(BVTP3 ) 12)
(SILVER)
4 Two screws
(BVTP3 ) 12)
(SILVER)
7 Screw
(BVTP3 ) 8)
8 Hook
!- Two hooks
6 Harness
0 Harness
9 NF board
!= HB board
2 Four hooks
3 Front panel assembly
5 Fin
