1-4. Disassembly
n
Remove parts in the order of numbers shown in the figure, in this section.

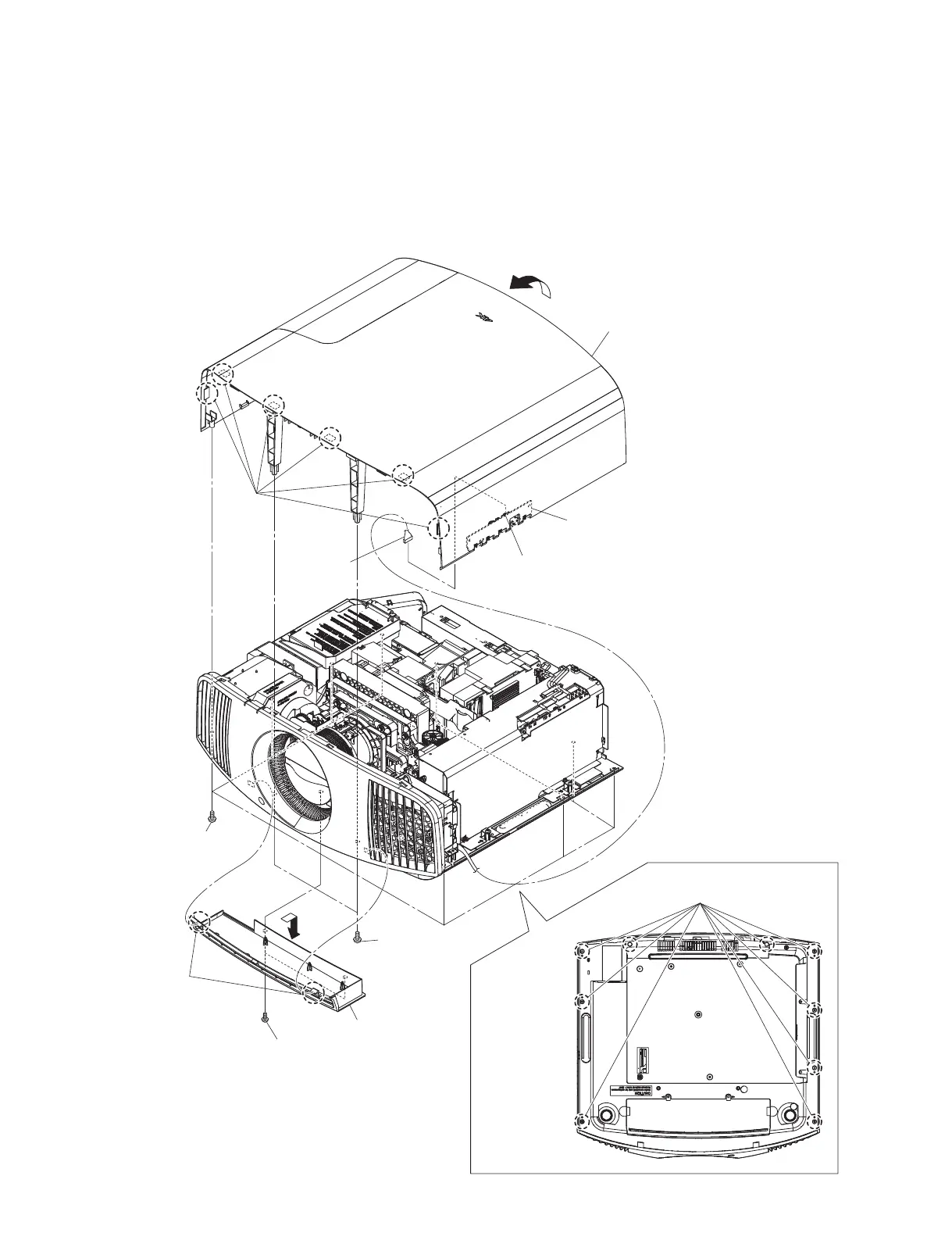

1-4-1. Top Cover Assembly/Rear Cover Assembly/NR Board/HA Board/BT Module
1 Nine screws
(BVTP3 ) 12) (BLACK)
1 Nine screws
(BVTP3 ) 12)
(BLACK)
4 Two screws
(BVTP3 ) 12)
(SILVER)
2 Two screws
(BVTP3 ) 12)
(BLACK)
5 Harness
3 Filter cover
Six hooks
Two hooks
HA board
Bottom side
CN60
6 Top cover assembly
