Sony VPL-VW528 - DC Fan (for Intake);M Board

1-12 (E)
VPL-VW520

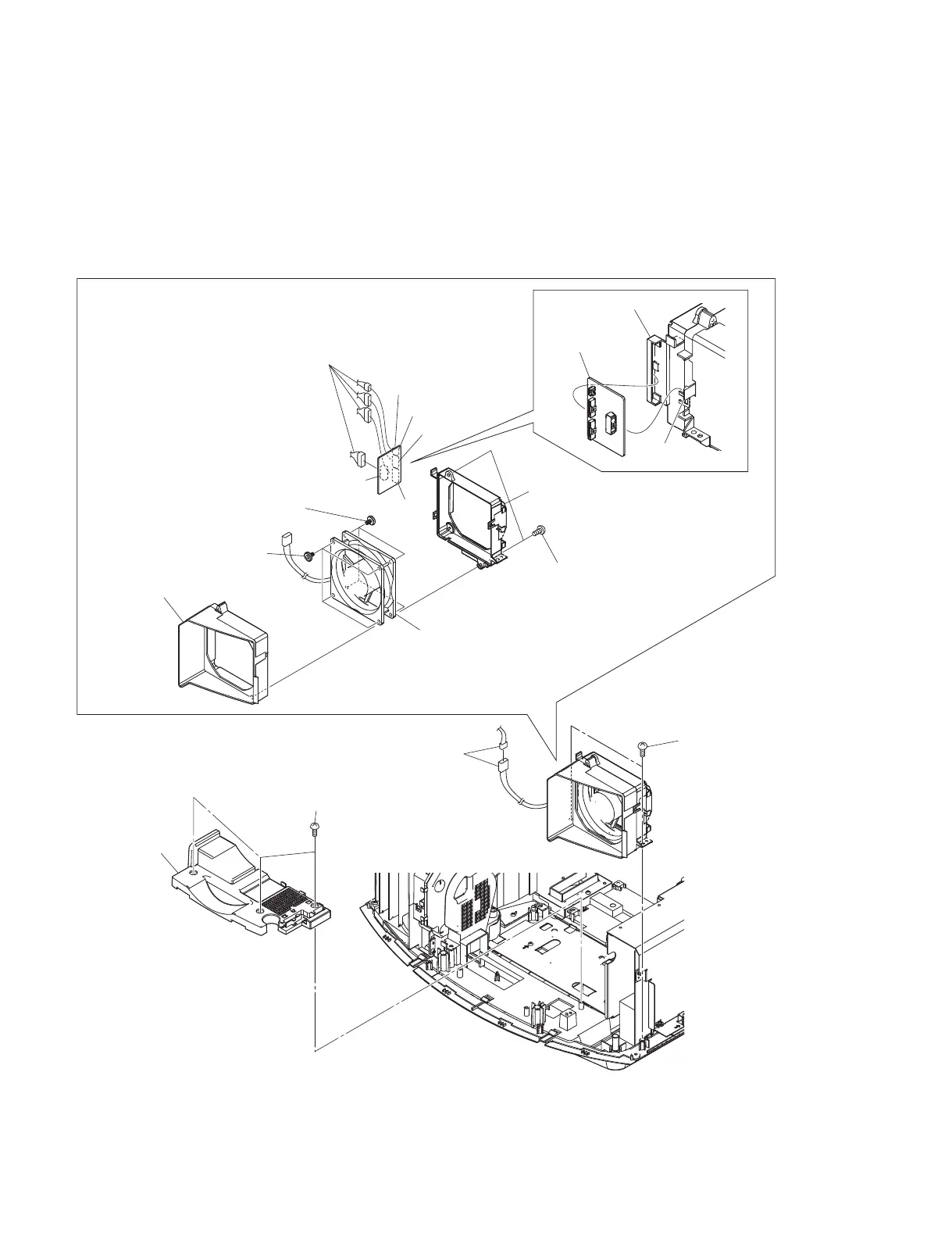

1-4-7. DC Fan (For Intake)/M Board
. Remove the top cover assembly and rear cover assembly. (Refer to Section 1-4-1.)
. Remove the front panel assembly. (Refer to Section 1-4-2.)
. Remove the lamp house (UP). (Refer to Section 1-4-3.)
. Remove the power supply assembly. (Refer to Section 1-4-4.)
. Remove the optical block. (Refer to Section 1-4-5.)
8 Four fan dampers
0 Four fan dampers
5 M board
5 M board
4 Hook
3 Four harnesses
9 DC fan
!- Fan holder (FR)
7 Fan holder (RE)
7 Fan holder (RE)
8 Screw
(BVTP3 ) 12)
(SILVER)
CN307
CN304
CN303
CN308
2 Two screws
(BVTP3 ) 12)
(SILVER)
![ Intake cover
!= Three screws
(BVTP3 ) 12)
(BLACK)
1 Relay connectors
