Sony VPL-VW528 - Q Board

1-16 (E)
VPL-VW520

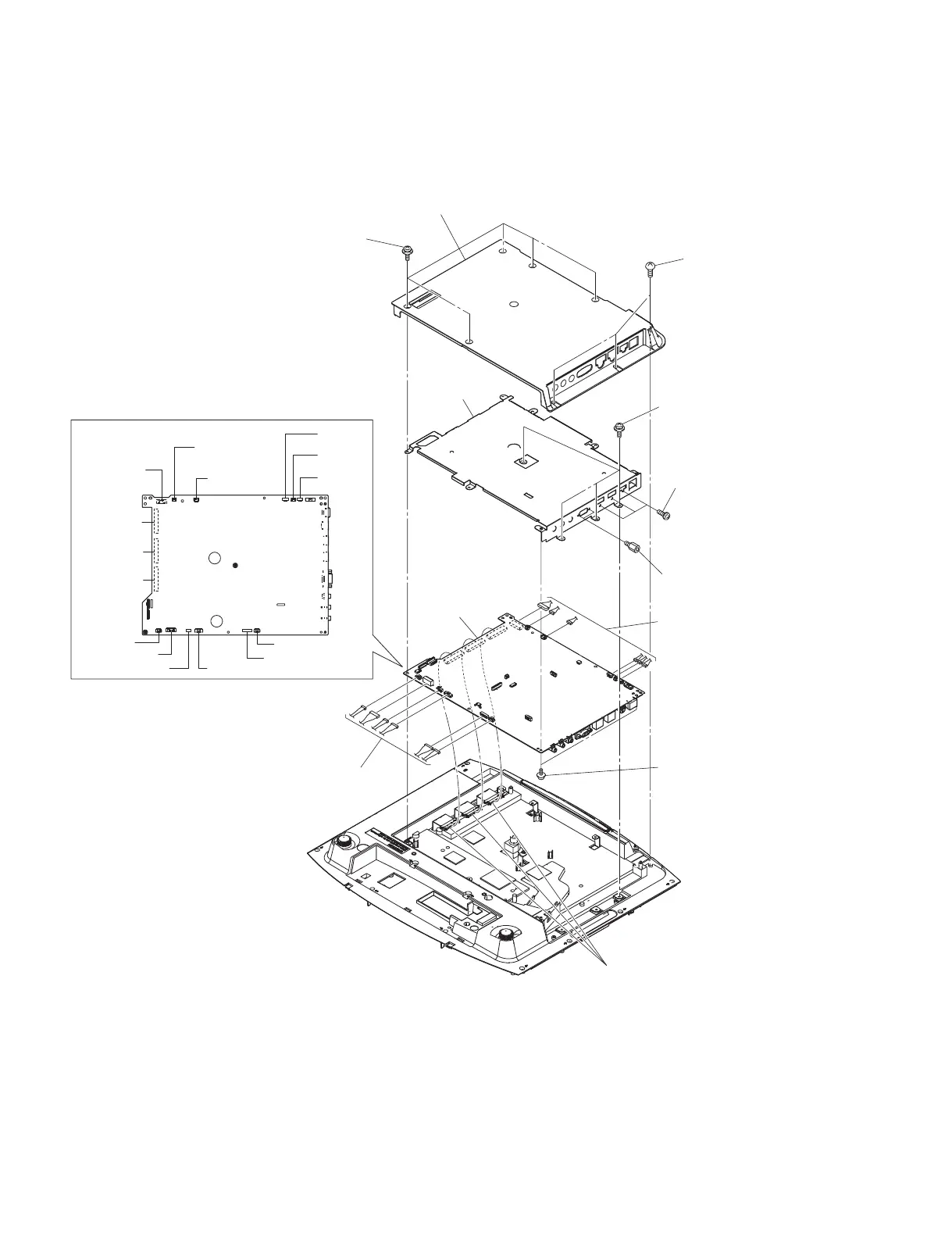

1-4-11. Q Board
. Remove the each parts. (Refer to Sections 1-4-1 to 1-4-9.)
Q board (B side)
CN1001
CN1401
CN1403
CN1404
CN1000
CN5200
CN5201
CN5100
CN6201
CN6200
CN6003
CN1402
CN6001
CN1400
CN6002
1 Five screws
(PSW3 ) 8)
2 Three screws
(BVTP3 ) 12)
(BLACK)
7 Four screws
(PSW3 ) 8)
9 Three screws
(PS3 ) 8)
0 Two connector
screws
3 Bottom cover
8 取付板
(Q board)
!= Q board
4 Six harnesses
5 Six harnesses
6 Three flexible flat cables
with connector
!- Two screws
(PSW3 ) 8)
