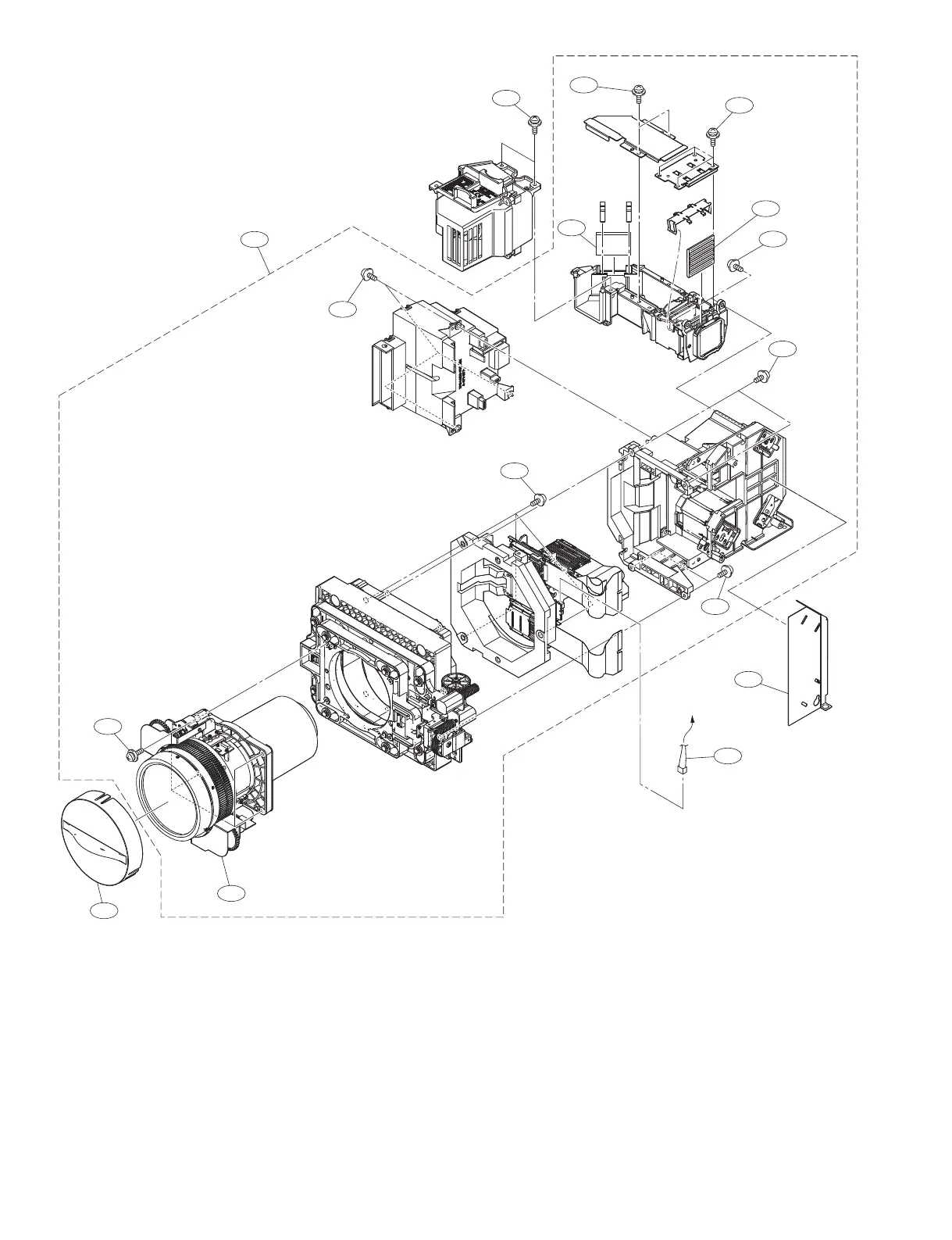

Sony VPL-VW528 - Page 58

4-14
VPL-VW520
To Q board
706
705
705
705
705
705
702
707
711
703
704
710
701
708
705
709
No. Part No. SP Description
701 A-1973-449-A s PRJECTION LENS (SVC)
702 A-2085-961-A s OPTICAL UNIT ASSY (SVC)
703 1-969-774-11 s CL CONNECTOR ASSY, 5P
704 2-580-602-01 s SCREW, +PSW M4X12
705 4-382-854-11 s SCREW (M3X10), P, SW (+)
706 4-475-764-01 s PS CONVERTER
707 4-475-856-01 s REFLECTION MIRROR
708 4-478-644-01 s CAP, LENS
709 4-489-326-01 s SHEET (UNIT CVR)
710 4-489-493-01 s SHAFT, SHIFT FIX
711 4-172-393-01 s SCREW (M3), STOPPER
Optical Block
