10
WM-EX921

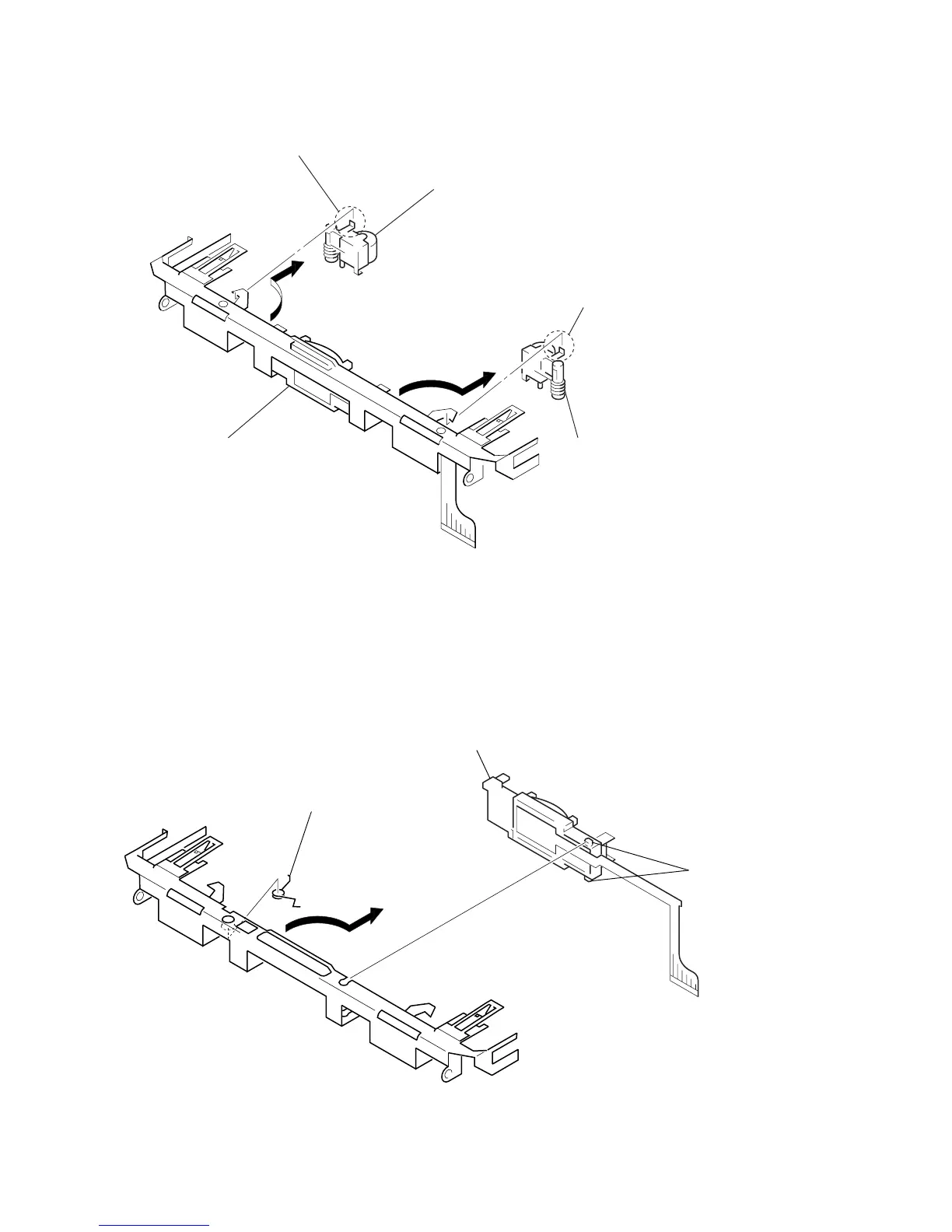

3-9. “LEVER (N2) ASSY, PINCH”, “LEVER (R2) ASSY, PINCH”
3-10. HEAD, MAGNETIC (PLAYBACK) (HP901)
1
claw
3
claw
2
Remove “lever (R2) assy, pinch”
in the direction of the arrow.
4
Remove “lever (N2) assy, pinch
”
in the direction of the arrow.
holder (FA) assy
4
head, magnetic (playback)
(HP901)
1
spring (HDA)
3
two bosses
2
