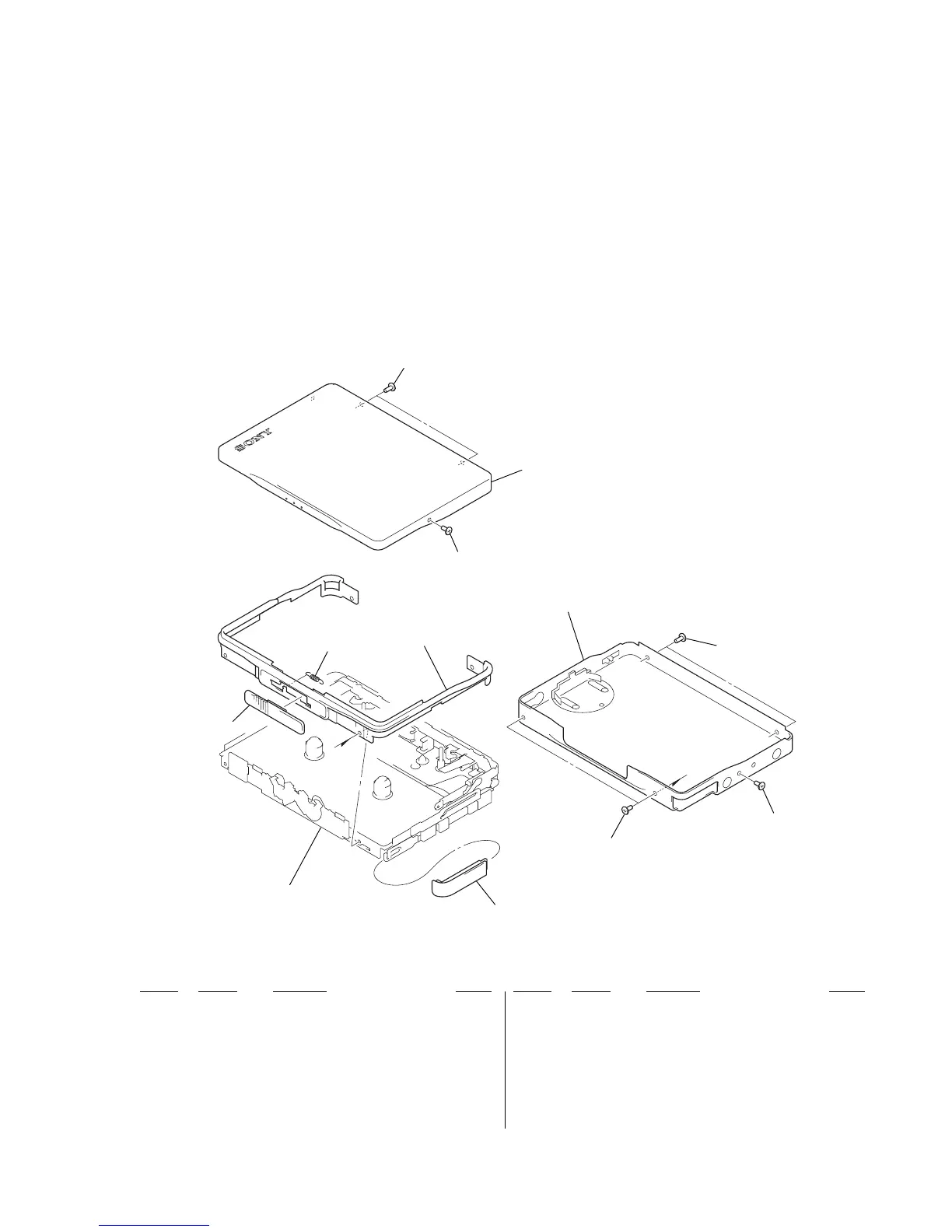

7-1. CASSETTE LID ASSY SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
CH : Chinese model
EE : East European model
FR : French model
JE : Tourist model
KR : Korean model
main board section
case section
4
3
4
4
4
5
2
7
6
1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-233-770-01 LID, BATTERY CASE (SILVER)
1 3-233-770-11 LID, BATTERY CASE (BLUE)
1 3-233-770-21 LID, BATTERY CASE (RED)
2 3-029-220-11 SPRING, TENSION
3 X-3380-991-1 LID ASSY, CASSETTE (SILVER) (EXCEPT KR)
3 X-3380-992-1 LID ASSY, CASSETTE (BLUE) (EXCEPT KR)
3 X-3380-993-1 LID ASSY, CASSETTE (RED) (EXCEPT KR)
3 X-3381-247-1 CASSETTE ASSY, LID (SILVER) (KR)
3 X-3381-248-1 CASSETTE ASSY, LID (BLUE) (KR)
3 X-3381-249-1 CASSETTE ASSY, LID (RED) (KR)
4 3-225-996-11 SCREW (M1.4) (EG), PRECISION PAN
5 3-225-996-05 SCREW (M1.4) (EG), PRECISION PAN
6 3-221-628-13 ORNAMENT (OPEN) (SILVER)
6 3-221-628-21 ORNAMENT (OPEN) (BLUE)
6 3-221-628-31 ORNAMENT (OPEN) (RED)
7 3-221-629-01 KNOB (OPEN)
