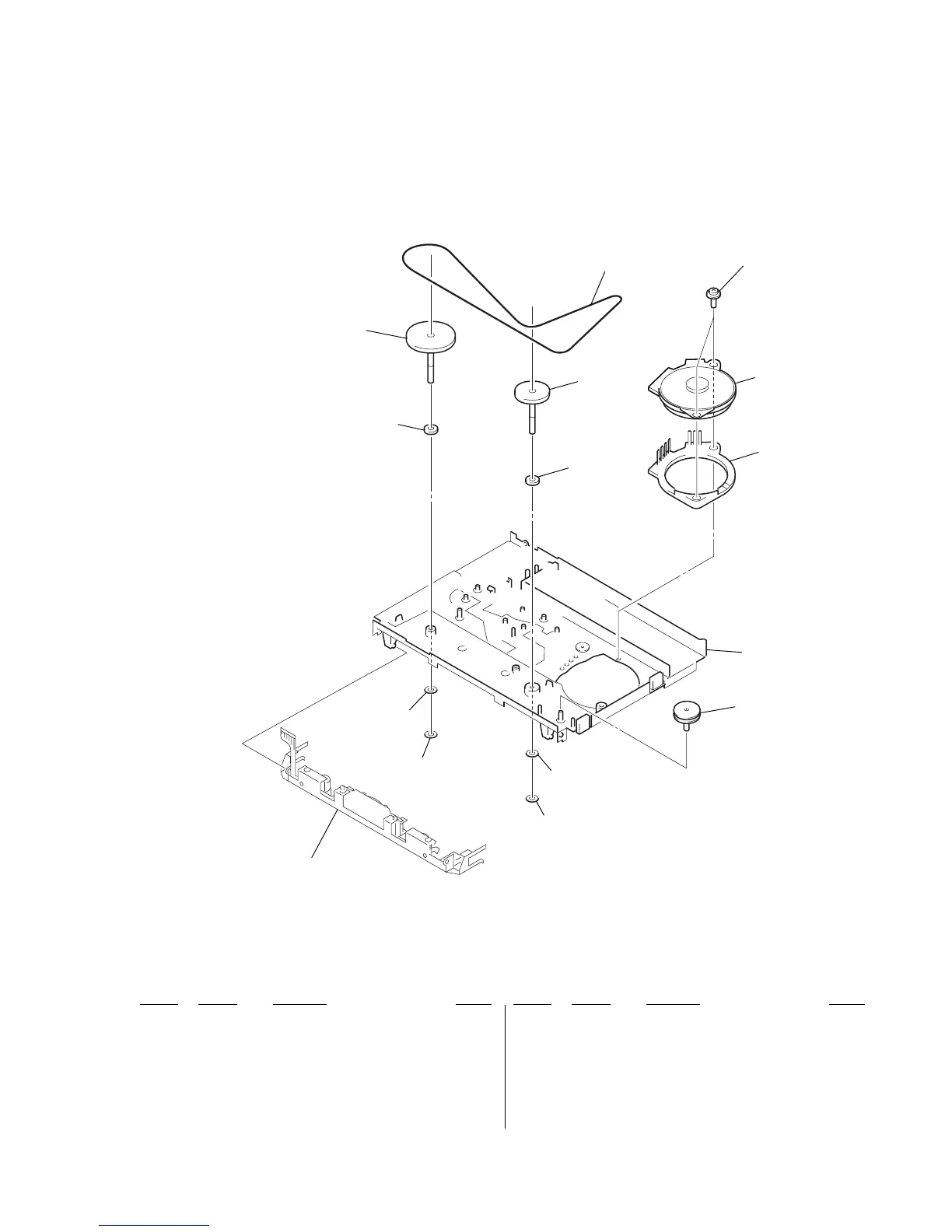

7-5. MECHANISM DECK SECTION-2
(MT-WMEX921-162)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 3-029-276-02 WASHER (STOPPER R)
202 3-029-289-01 WASHER
203 3-029-275-01 WASHER (STOPPER N)
204 3-029-278-01 WASHER
205 3-386-694-01 WASHER
206 3-029-306-21 FLYWHEEL (N), INSERT
207 3-221-357-01 BELT (F0)
208 3-007-428-01 WASHER (R)
209 3-029-268-21 FLYWHEEL (R), INSERT
210 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
211 3-029-883-01 RETAINER (F1), MOTOR
212 X-3377-584-5 CHASSIS ASSY (FA)
213 3-029-288-01 PULLEY, REVERSE
M601 1-763-559-12 MOTOR, DC (CAPSTAN/REEL) (WITH PULLEY)
206
M601
205
208
209
210
211
202
212
213
201
204
203
207
