Sony WM-EX921 - 6-5. SCHEMATIC DIAGRAM - MAIN Board (1;2)

WM-EX921
1818

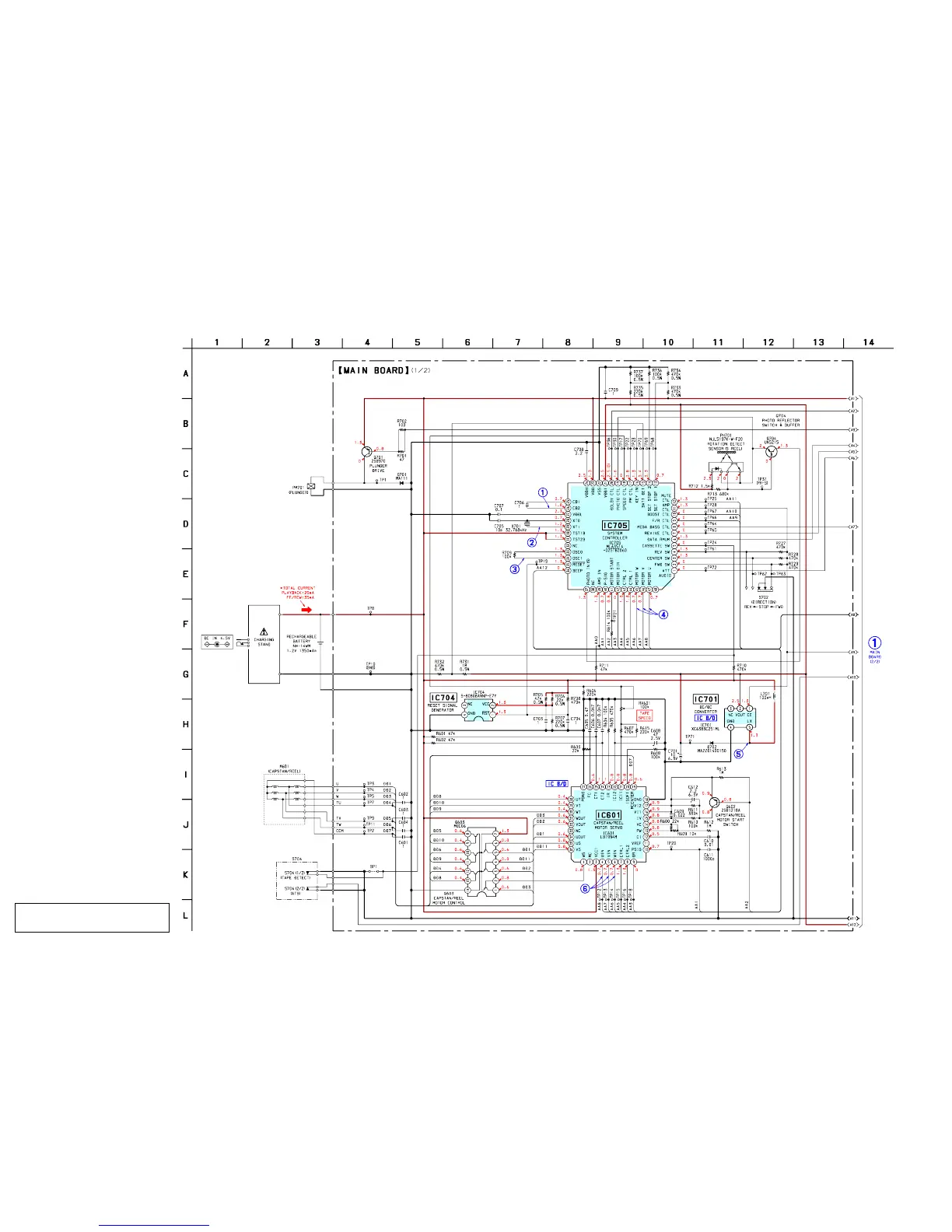

6-5. SCHEMATIC DIAGRAM – MAIN Board (1/2) –• See page 14 for Waveforms. • See page 15 for IC Block Diagrams.
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 19)
