WM-EX921

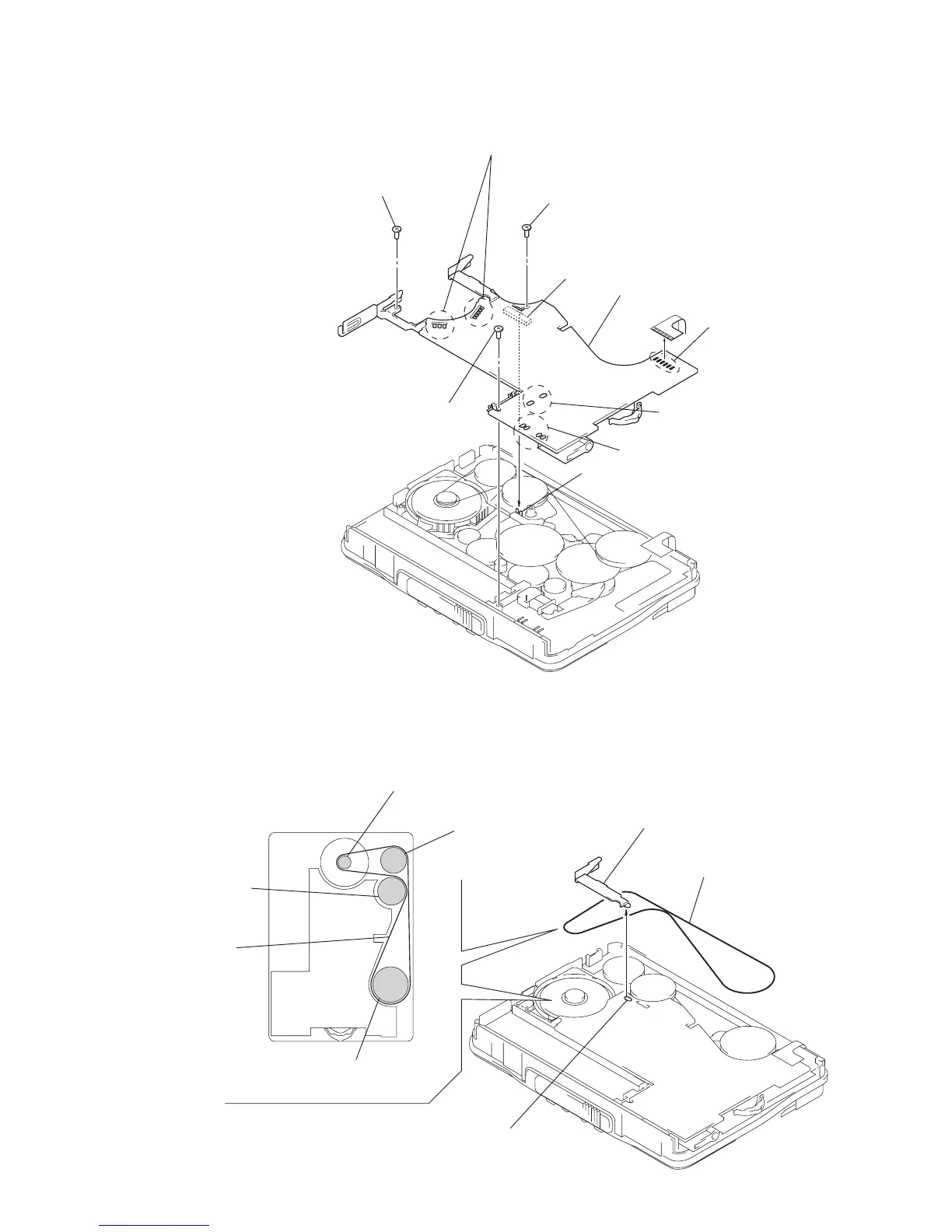

3-3. MAIN BOARD
3-4. BELT (F0)
2 screw (M1.4) (toothed lock)
3 MAIN board
2 screw
2 screw
1 Remove six solders of
head flexible board.
1 Remove seven solders of “motor, DC (M601)”.
1 Remove two solders of
“solenoid, plunger”.
1 Remove four solders of
“switch, leaf (S704)”.
slider
S702
Note: On installation
MAIN board adjust
the S702 and slider.
2 terminal board, battery
1 Remove solder of
“terminal board, battery”.
3 belt (F0)
pulley, motor
pulley, reverse
flywheel (R),
insert
belt (F0)
flywheel (N), insert
