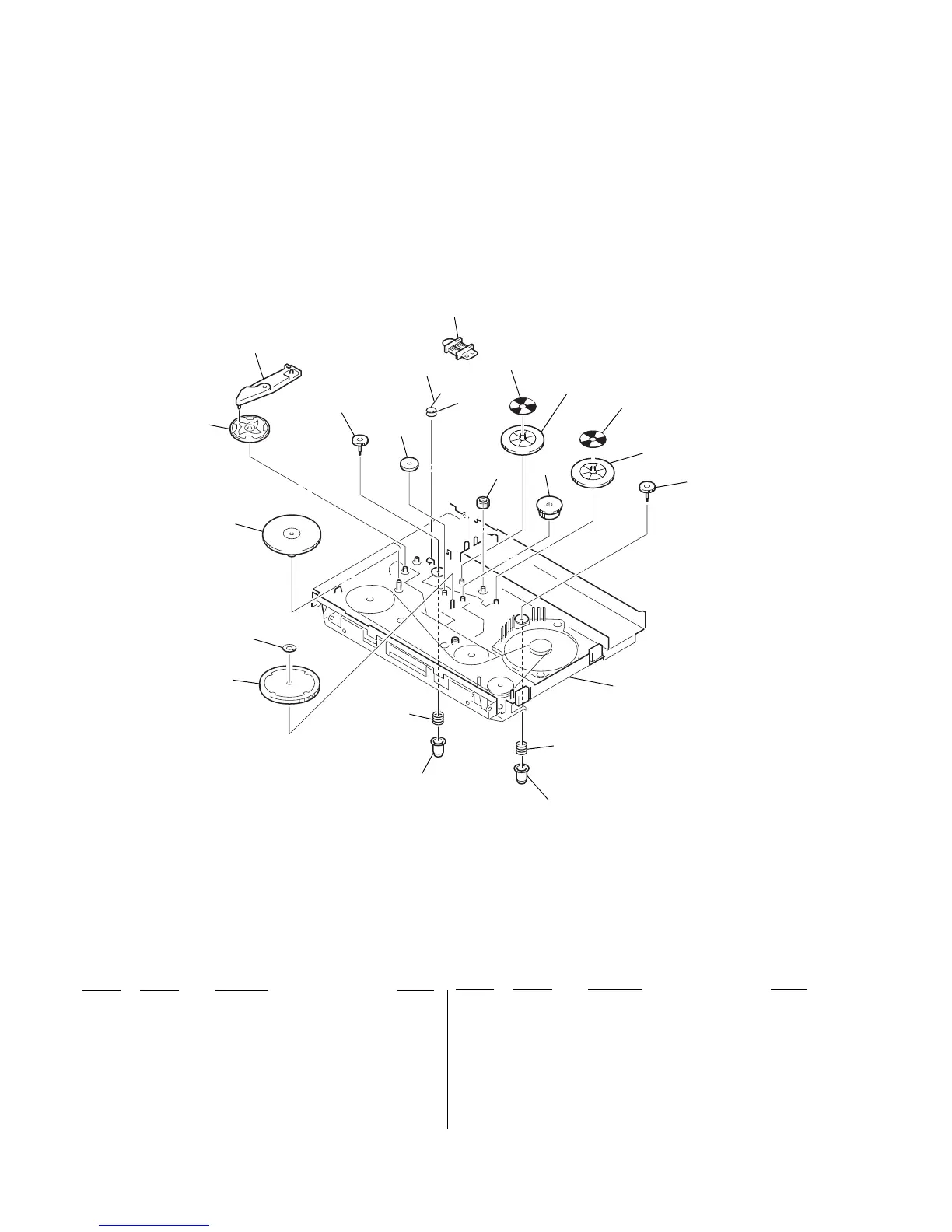

7-4. MECHANISM DECK SECTION-1
(MT-WMEX921-162)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 3-010-274-02 TABLE, REEL
152 3-010-954-01 SPRING (BT), COMPRESSION
153 X-3376-813-1 CLUTCH ASSY (F)
154 3-932-724-21 WASHER
155 3-029-282-12 GEAR (Y)
156 3-029-285-02 GEAR, CAM
157 3-029-284-13 LEVER, TRIGGER
158 3-010-273-02 GEAR (REEL)
159 3-029-281-01 GEAR, IDLER (B)
160 3-040-897-04 SPRING (TGA), TORSION
161 3-029-273-01 GEAR (FR)
162 3-007-433-12 SHEET (N), REFLECTION
163 3-029-283-02 GEAR, IDLER (A)
164 3-029-286-01 GEAR (NR)
PM701 1-454-674-32 SOLENOID, PLUNGER
PM701
154
153
160
162
162
151
151
152
152
155
156
157
159
158
158
161
163
163
164
mechanism deck
section-2
