Sony WM-FX271

– 20 –

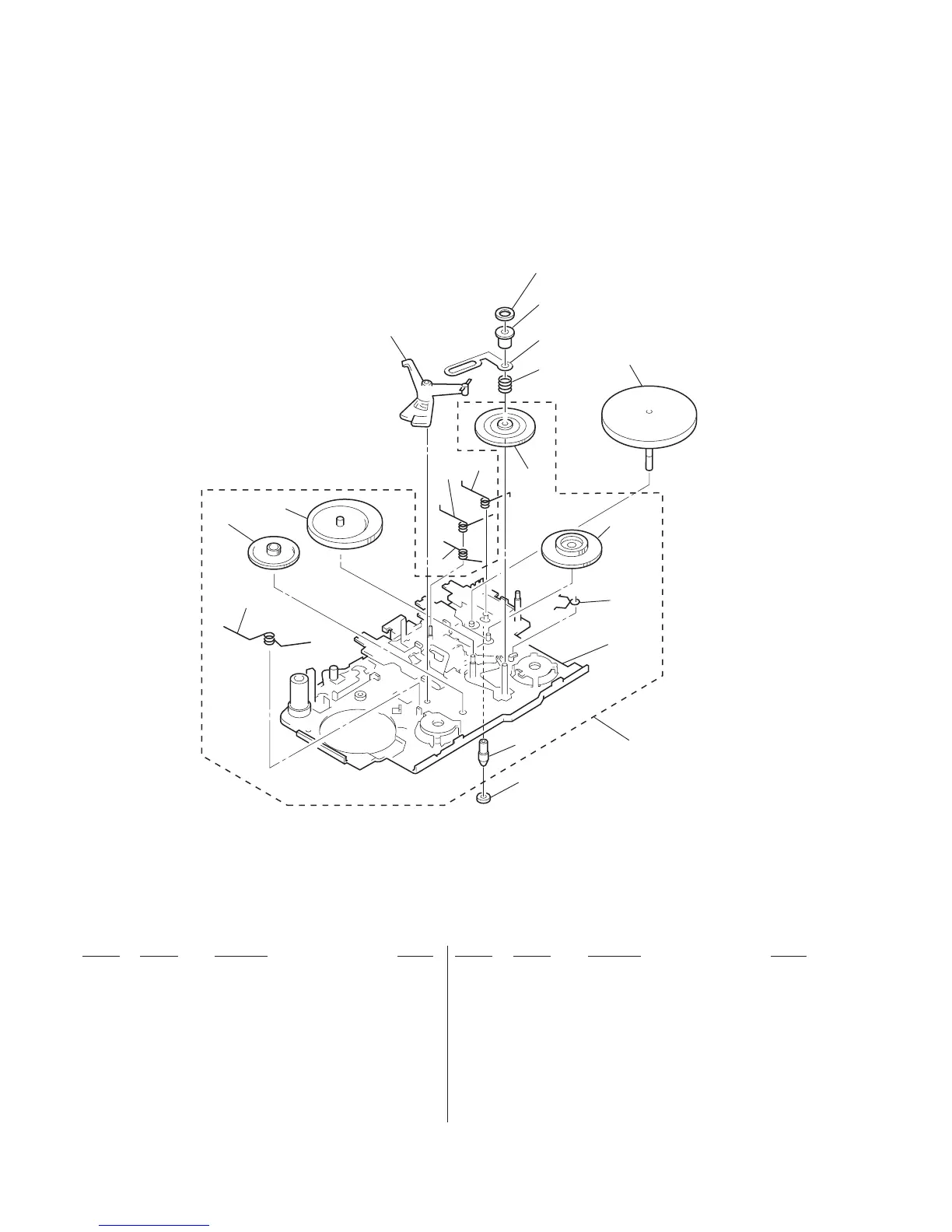

6-3. TAPE MECHANISM SECTION-2
(MF-WMFX171-114)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
105
108
104
109
110
111
112
113
114
115
116
117
119
102
101
103
107
106
118
101 3-921-797-01 WASHER
102 3-921-003-01 BEARING
103 3-938-628-01 SPRING (PLAY-CP)
104 3-920-999-01 GEAR (A)
105 X-3375-837-1 CLUTCH ASSY
106 3-013-142-01 SPRING (FR-CP)
107 3-015-436-01 SPRING (STOP)
108 3-938-613-04 LEVER (OW), DETECTION
109 3-728-091-01 WASHER, STOPPER
110 3-923-530-01 SLEEVE (M)
111 3-921-335-03 WASHER, LEVER
112 3-920-990-01 SPRING (UD), COMPRESSION
113 3-921-050-01 GEAR (B)
114 X-3372-619-2 WHEEL ASSY (NP), CAPSTAN
115 3-921-043-01 GEAR (D)
116 3-014-709-01 SPRING (FR LEVER OW)
117 X-3375-054-3 CHASSIS ASSY (GL-02)
118 3-016-989-01 SPRING (SW-CP)
119 X-3376-931-1 CHASSIS (COMP) ASSY (GL-02-REC)
