Sony WM-FX271 Service Manual

– 5 –

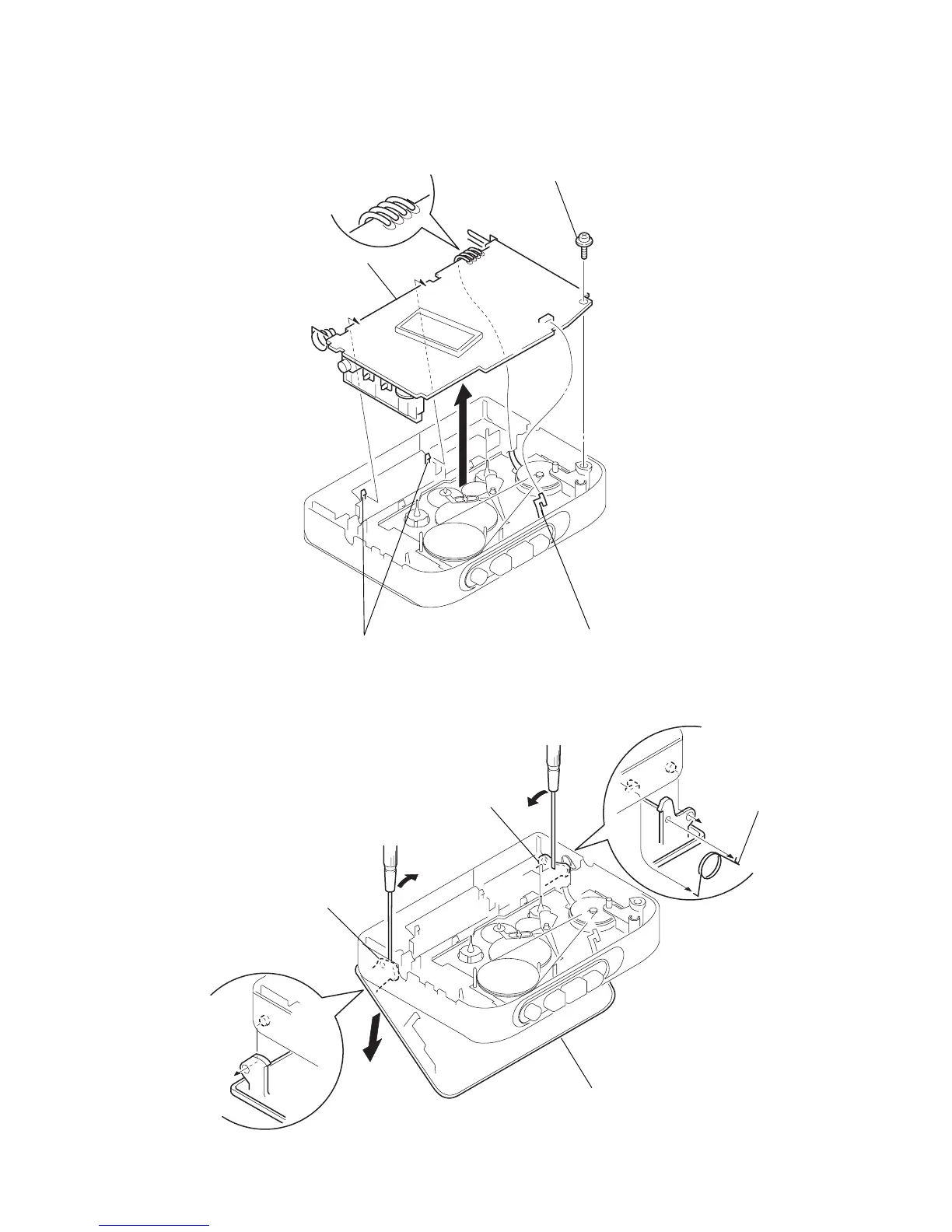

2-2. MAIN BOARD
4 two claws
1 HEAD FLEXIBLE board (CN301)
2 Unsolder the 4 places.
5 MAIN board
3 screw (M1.4), toothed lock (WH)
1 Open the holder (sub) assy, cassette.
4 holder (sub) assy, cassette.
A
B
5
spring (torsion
)
2-3. HOLDER (SUB) ASSY, CASSETTE
2 Insert a precision screwdriver
(1.4 mm flat-blade) vertically
into portion A to release the
hinge plate.
3 Portion B to release the
hinge plate.
