SECTION 2
DISASSEMBLY
2-1. CABINET (FRONT) SUB ASSY
Note : When installing, fit the knobs and switches.
Cabinet (front) sub assy Main boardSet Holder (sub) assy, cassette Belt and Motor
Mechanism deck
1

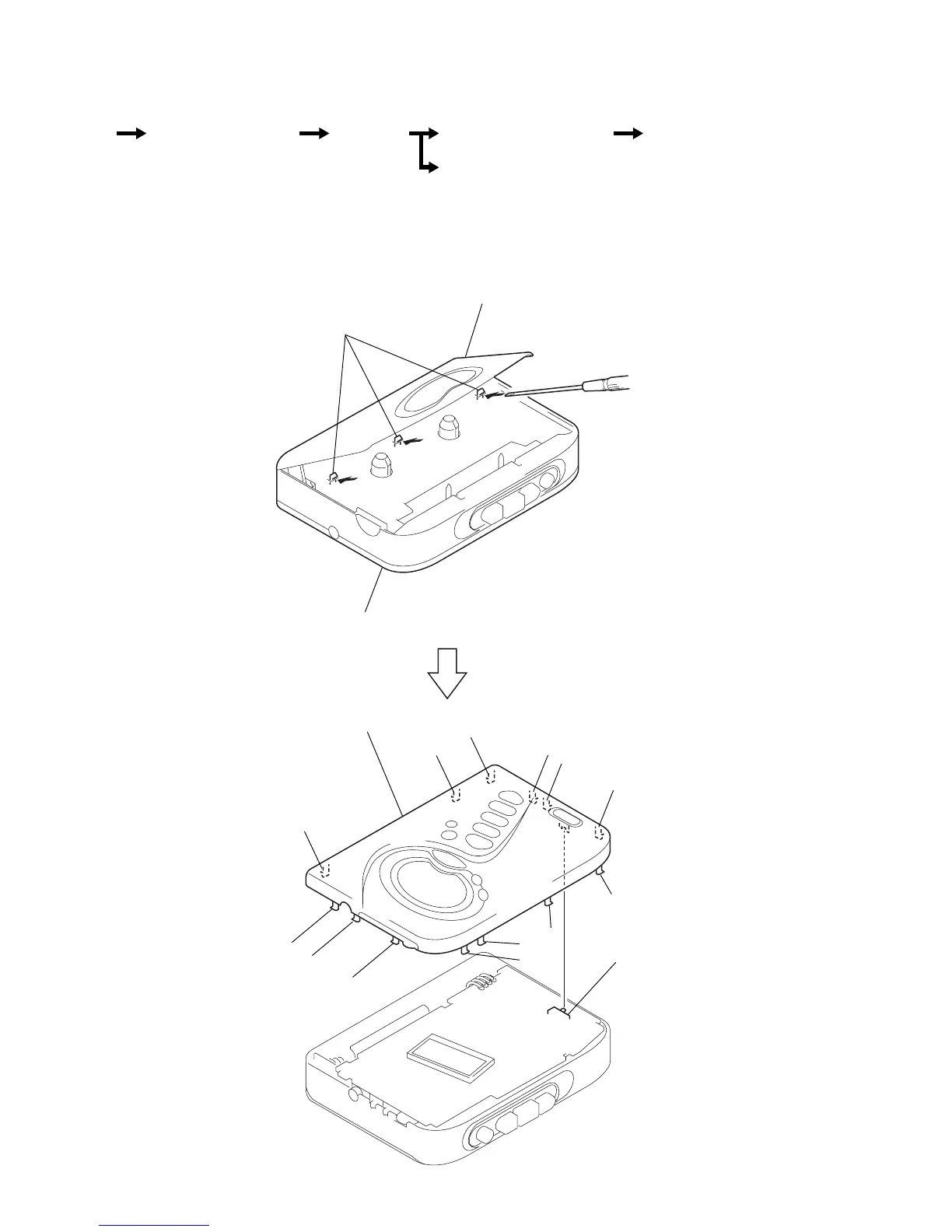

Insert the precision screwdriver
(1.4 mm flat-blade) into the slit
at claw
A
and release the claw.
2
Remove the cabinet (front) sub assy.
(Release all claws
B
to
N
in
alphabetical order.)
• The equipment can be removed using the following procedure.
A
cabinet (front) sub assy
holder (sub) assy, cassette
B
C
D
E
F
H
I
J
K
S71
G
L
M
N
cabinet (front) sub assy
Note :When removing the cabinet, put cloth
on the end of a screwdriver or use a
polyacetal driver to avoid damage to
the cabinet.
Note : Follow the disassembly procedure in the numerical order given.
