– 6 –

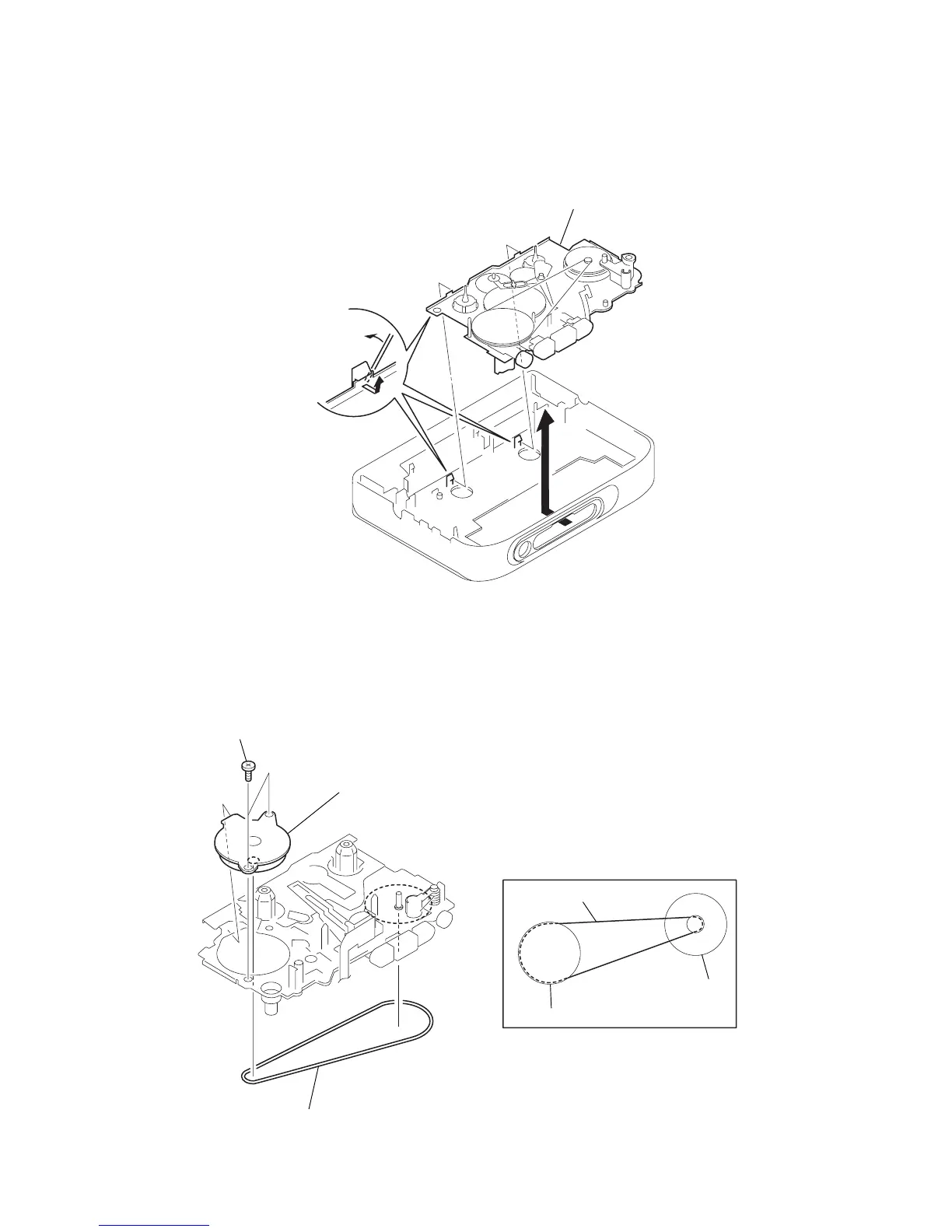

2-4. MECHANISM DECK
2-5.
BEL
T AND MOT
OR
1
Insert the precision screwdriver
(1.4 mm flat-blade) into the slit
and release three claws.
2
Remove the mechanism deck
in the direction of the arrow.
• How to apply the belt
1
belt
3
motor
2
two screws (screw (M1.4), special head)
wheel assy (NP), capstan
belt
M901
5
7
