WM-FX522
10

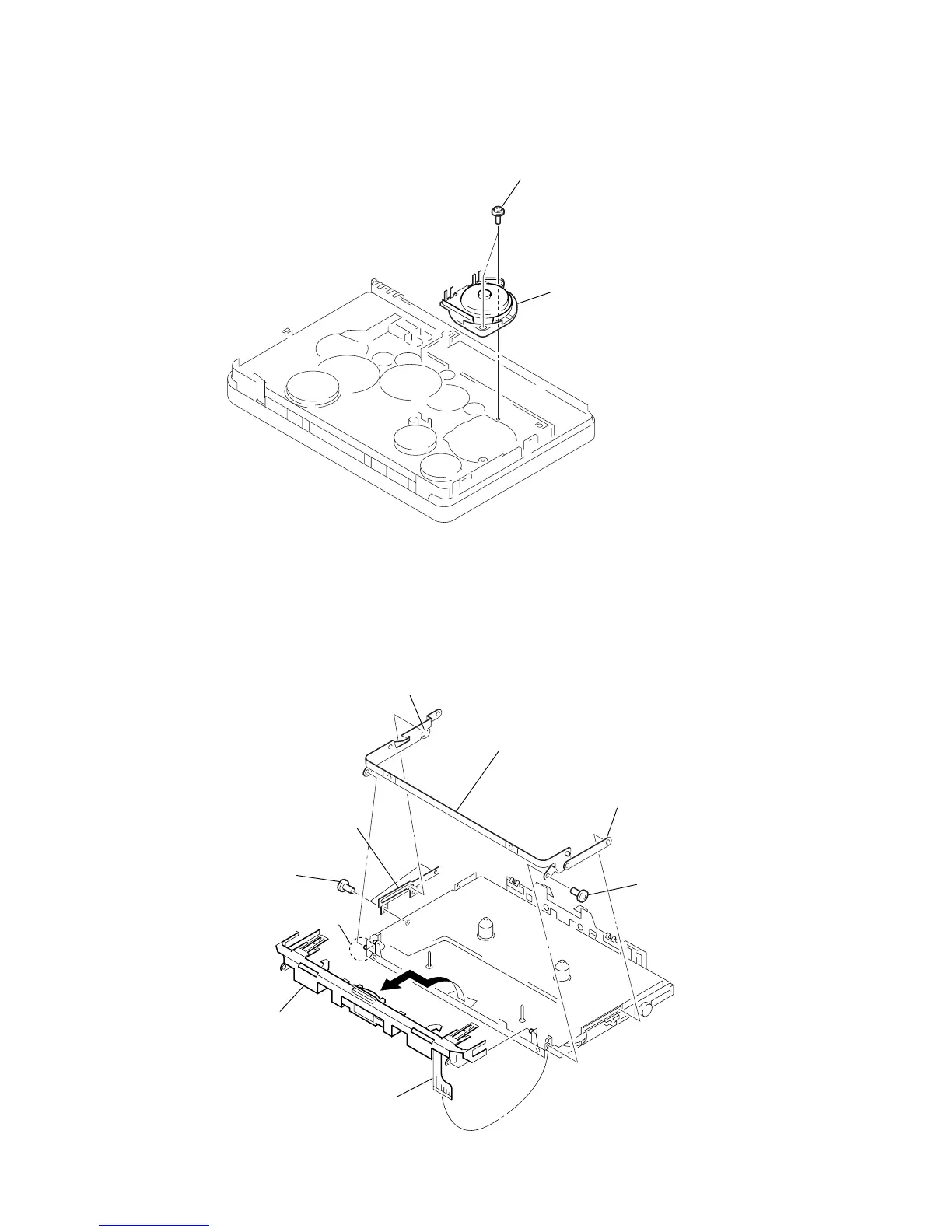

3-8. MOTOR (CAPSTAN/REEL) (M901)
3-9. HOLDER (FS) ASSY
1
two screws
(M1.4)
2
motor (capstan/reel
)
(M901)
1
two screws
(IB lock)
2
boss
3
lock lever (B)
(/M)
7
bracket (cassette) assy (/M)
5
lock lever (S) (/M)
4
screw (M1.4
)
6
boss
9
Remove the holder (FS) assy
to direction of the arrow.
8
Remove six solders
of flexible board.
