WM-FX522
11

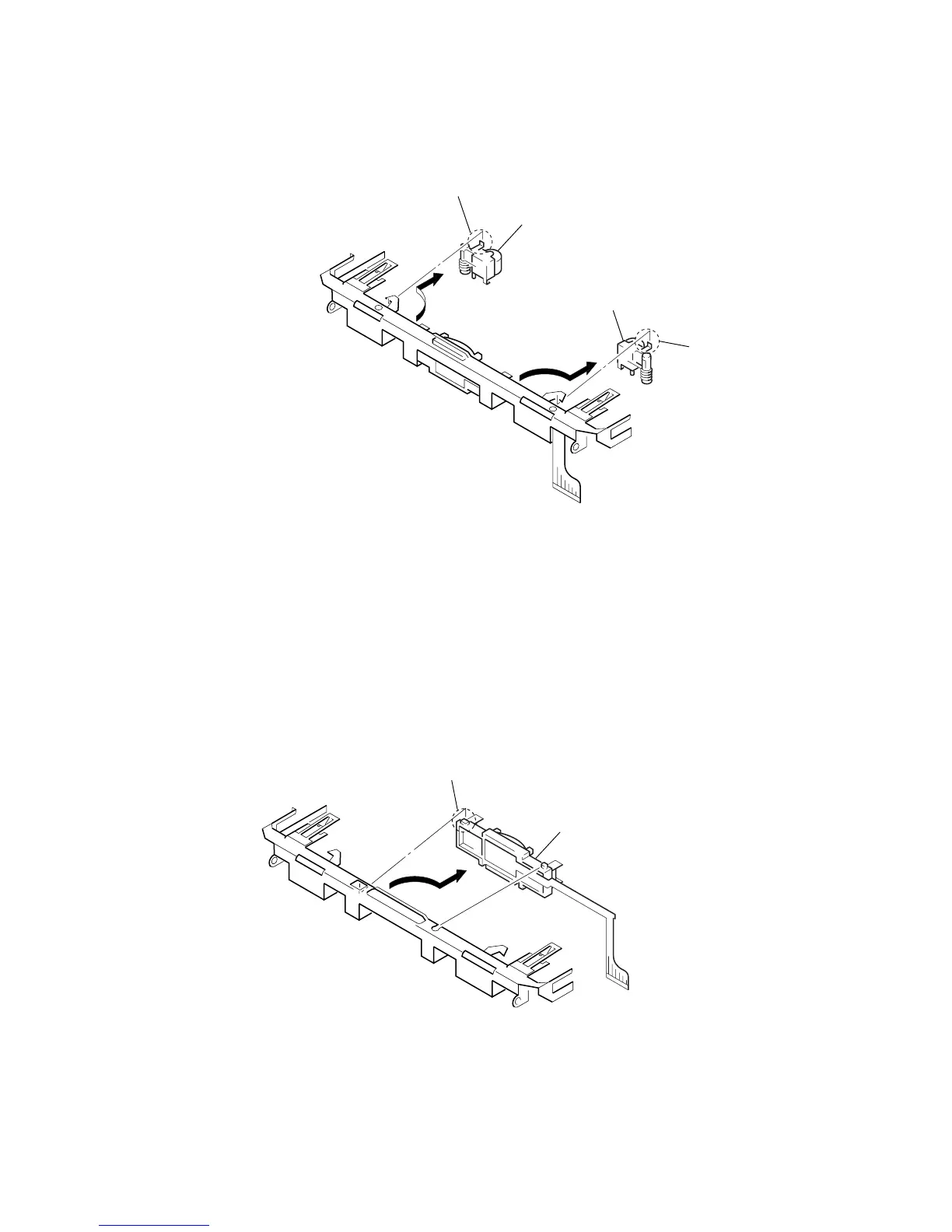

3-10. PINCH LEVER (N) ASSY, PINCH LEVER (R) ASSY
1 claw
2 Remove the pinch lever (R) assy
to direction of the arrow.
4 Remove the pinch lever (N) assy
to direction of the arrow.
3 cla
w
3-11. MAGNETIC HEAD (PLAYBACK) (HP901)
1
claw
2
Remove the magnetic head (HP901
)
to direction of the arrow.
