WM-FX522
7

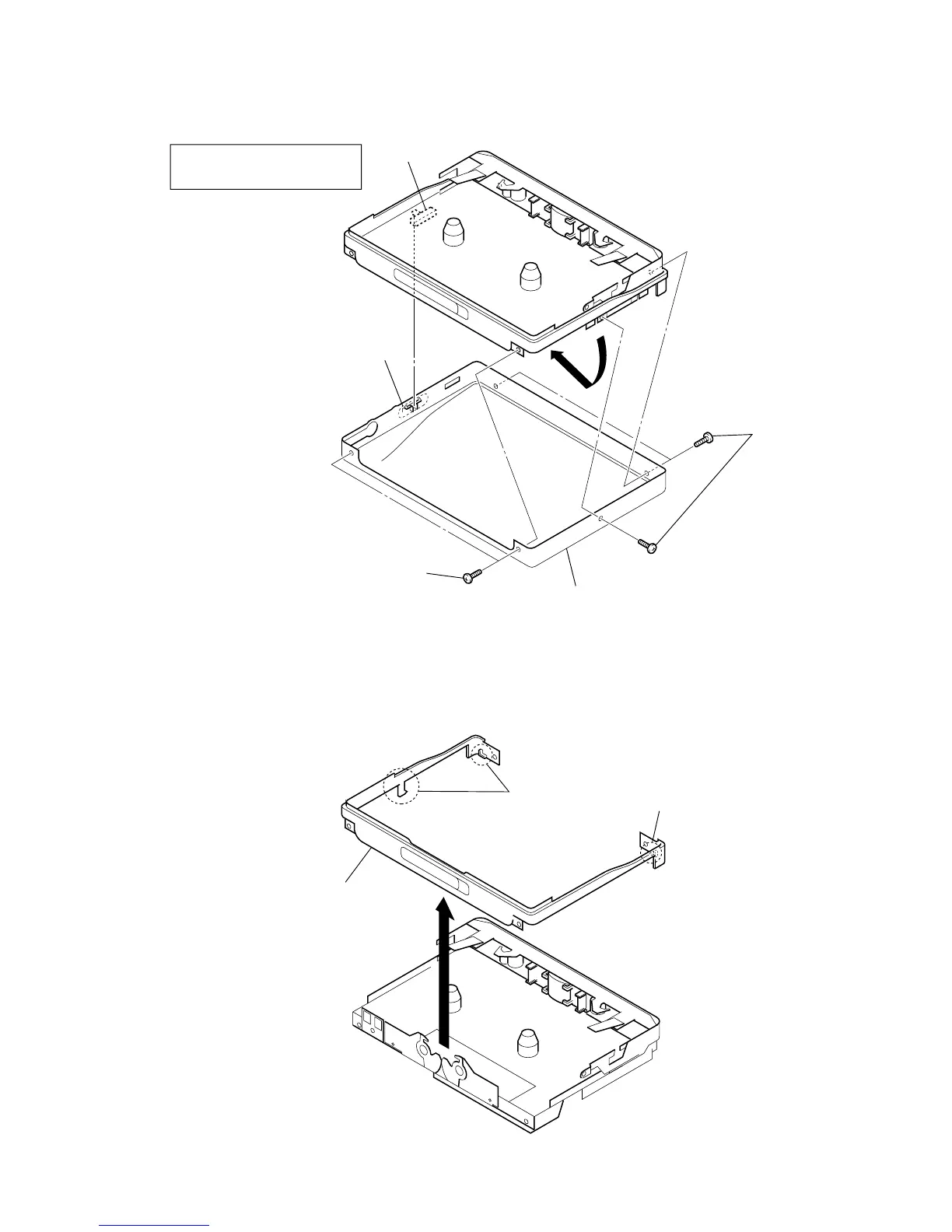

3-3.
CASE BLOCK ASSY
3-4.
ORNAMENT REEL
1
three screws
(M1.4)
1
two screws
(M1.4)
2
Remov
e the case bloc
k assy
to direction of the arrow
.
knob (hold)
S701
On installation case bloc
k assy
,
adjust the S701 and knob (hold).
1
two claws
2
ornament reel
1
claw
6
8
Table of Contents
Default Chapter
2
Table of Contents
2
1 Servicing Notes
3
2 General
5
3 Disassembly
6
Disassembly Flow
6
Cassette Lid Assy
6
Case Block Assy
7
Ornament Reel
7
Battery Holder
8
Belt (F2)
8
MAIN Board
9
Motor (Capstan/Reel) (M901)
10
Holder (FS) Assy
10
Pinch Lever (N) Assy, Pinch Lever (R) Assy
11
Magnetic Head (Playback) (HP901)
11
4 Mechanical Adjustments
12
5 Electrical Adjustments
12
6 Diagrams
15
Block Diagram - TUNER Section
15
Block Diagram - MAIN Section
16
Note for Printed Wiring Board and Schematic Diagrams
17
Schematic Diagram - MAIN Board (1/2)
18
Schematic Diagram - MAIN Board (2/2)
19
Printed Wiring Board
20
IC Block Diagrams
21
IC Pin Function Description
23
7 Exploded Views
25
Case Section
25
Bracket, MAIN Board Section
26
Mechanism Deck Section (MT-WMEX505-162)
27
8 Electrical Parts List
28
Revision History
32
