WM-FX522

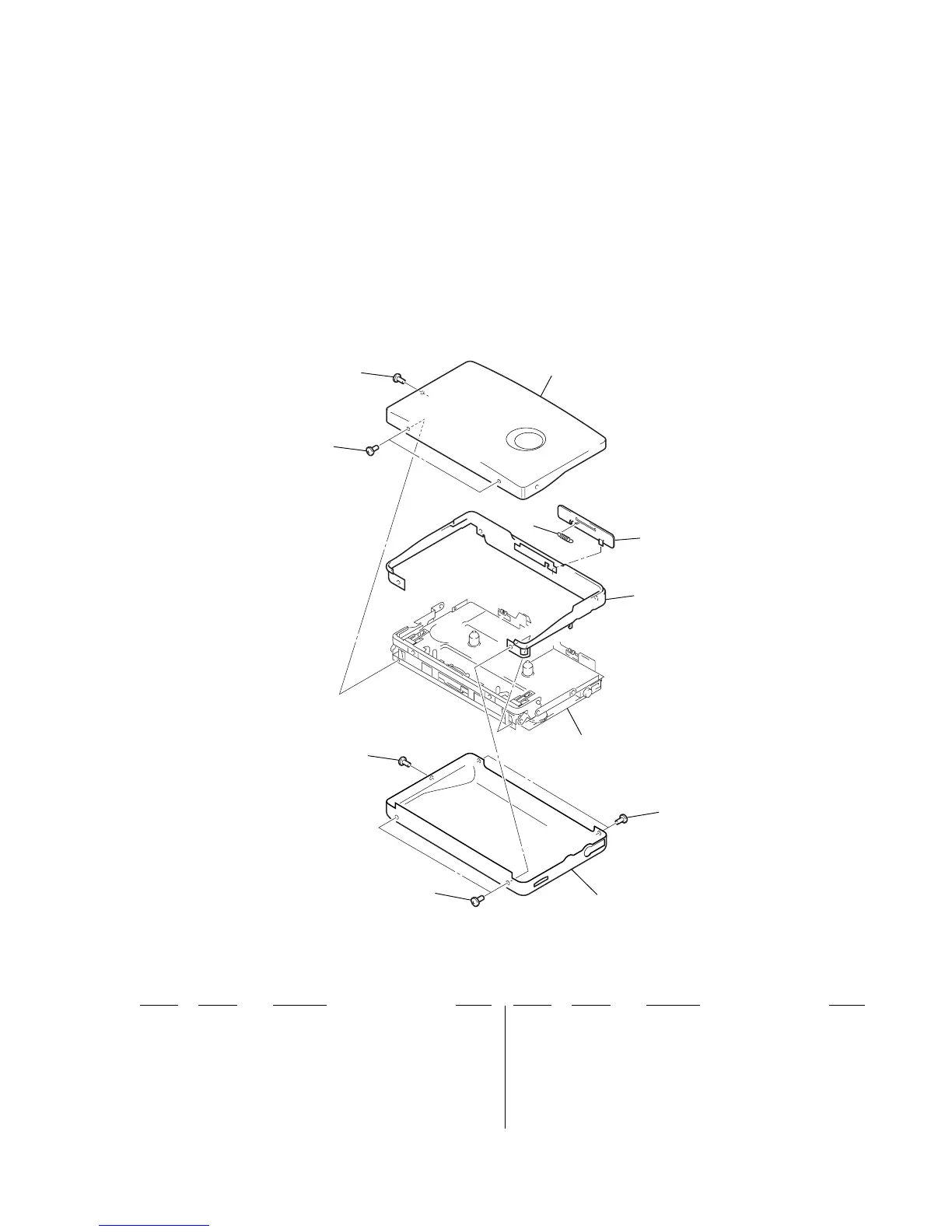

7-1. CASE SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-3382-977-1 LID ASSY, CASSETTE (S) (SILVER)
1 X-3382-978-1 LID ASSY, CASSETTE (L) (BLUE)
1 X-3382-979-1 LID ASSY, CASSETTE (R) (RED)
2 3-225-996-09 SCREW (M1.4) (EG), PRECISION PAN
3 3-029-219-61 KNOB (OPEN) (for SILVER)
3 3-029-219-71 KNOB (OPEN) (for BLUE, RED)
4 3-029-220-11 SPRING, TENSION
5 3-233-968-41 ORNAMENT REEL (for SILVER)
5 3-233-968-51 ORNAMENT REEL (for BLUE, RED)
6 3-225-996-11 SCREW (M1.4) (EG), PRECISION PAN
7 X-3382-685-1 BLOCK (S) ASSY, CASE (SILVER)
7 X-3382-686-1 BLOCK (L) ASSY, CASE (BLUE)
7 X-3382-687-1 BLOCK (R) ASSY, CASE (RED)
6
2
7
