Sony WM-FX855 - Page 25

– 36 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 3-011-277-01 COVER (B) (Y), MD
102 3-704-413-31 SCREW (M1.4X7.2)
103 3-007-434-01 PULLEY (REVERSE)
104 X-3372-850-1 PINCH LEVER (N) ASSY
105 3-007-439-01 SLIDER (LOCK)
106 3-007-428-01 WASHER (R)
107 3-386-694-11 WASHER
108 X-3372-851-1 FLYWHEEL (R) ASSY
109 X-3372-852-1 FLYWHEEL (N) ASSY
110 3-007-430-01 BELT
111 3-007-960-01 SPRING (EJECT) (Y), TORSION
112 3-007-456-01 SPRING (N), TORSION
113 3-007-436-01 SPRING (TRIGGER), TORSION
114 X-3372-848-1 CLUTCH ASSY (M)
115 3-932-724-21 WASHER
116 3-007-454-01 SPRING (FR), TORSION
117 3-007-435-01 GEAR (FR)
118 X-3372-853-1 LEVER (FRG) ASSY
119 3-007-432-01 SHEET (R), REFLECTION
* 120 3-010-272-01 BELT, RETAINER
121 3-007-427-01 SCREW (IB LOCK)
122 X-3374-094-1 CHASSIS (S) ASSY (Y)
123 3-007-457-01 SPRING (TEN), TENSION
124 X-3372-849-1 PINCH LEVER (R) ASSY
125 3-010-954-01 SPRING (BT), COMPRESSION
126 3-010-274-02 TABLE, REEL
127 3-366-017-01 BUSHING (CAPSTAN)
128 3-918-943-01 WASHER, STOPPER
129 3-007-455-01 SPRING (R), TORSION
130 3-007-429-01 WASHER (R), STOPPER
131 3-007-458-01 SPRING (H/B), TENSION
HP901 1-500-280-11 HEAD, MAGNETIC (PLAYBACK)
M901 1-698-885-11 MOTOR (REEL/CAPSTAN)
PM901 1-454-674-31 SOLENOID, PLUNGER
117
118
119
120
121
123
122
124
125
126
126
127
101
102
103
104
105
107
106
108
109
110
112
116
113
114
115
PM901
M901
HP901
111
131
130
127
125
129
128

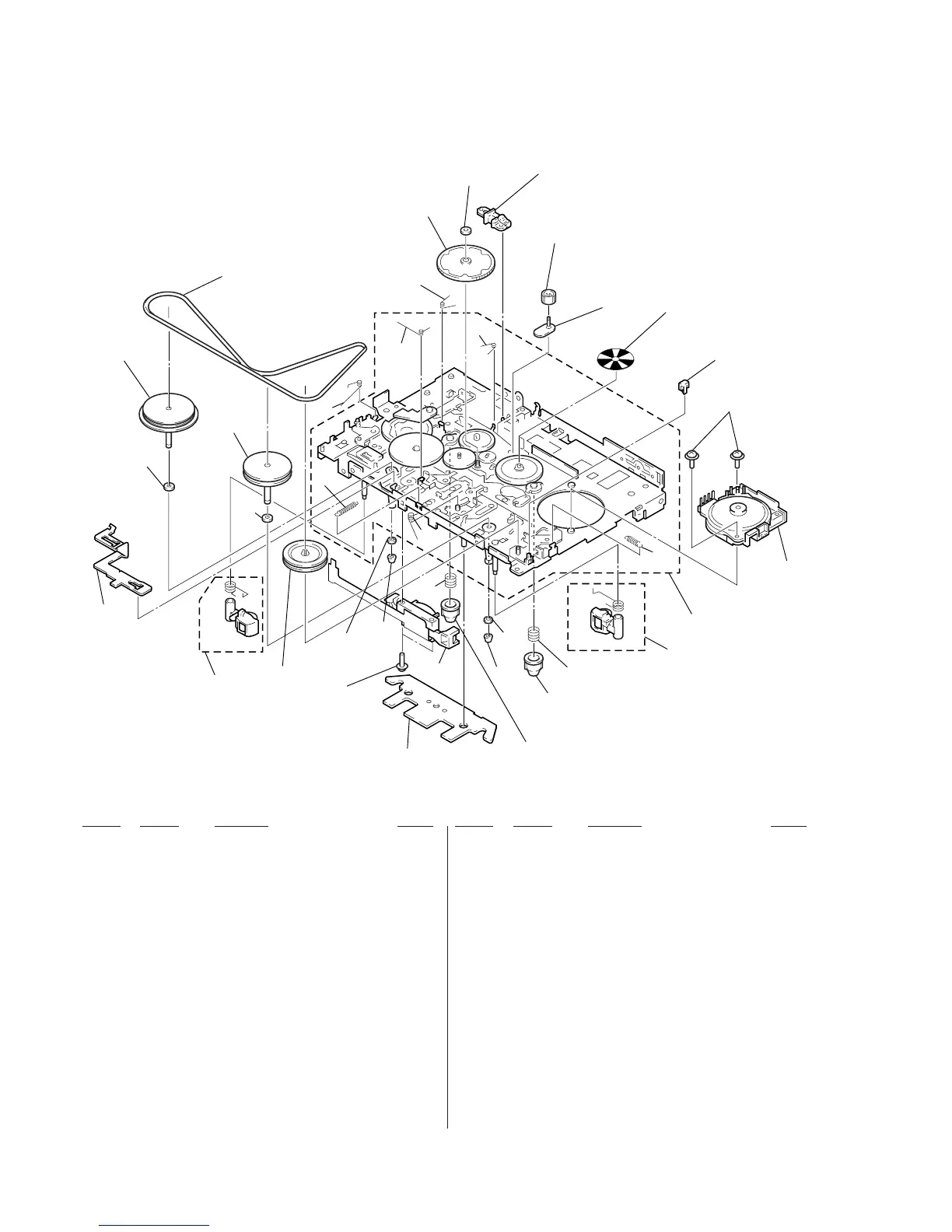

(3) MECHANISM DECK SECTION
(MT-WMEX655-125)
