ZS-RS70BT/RS70BTB

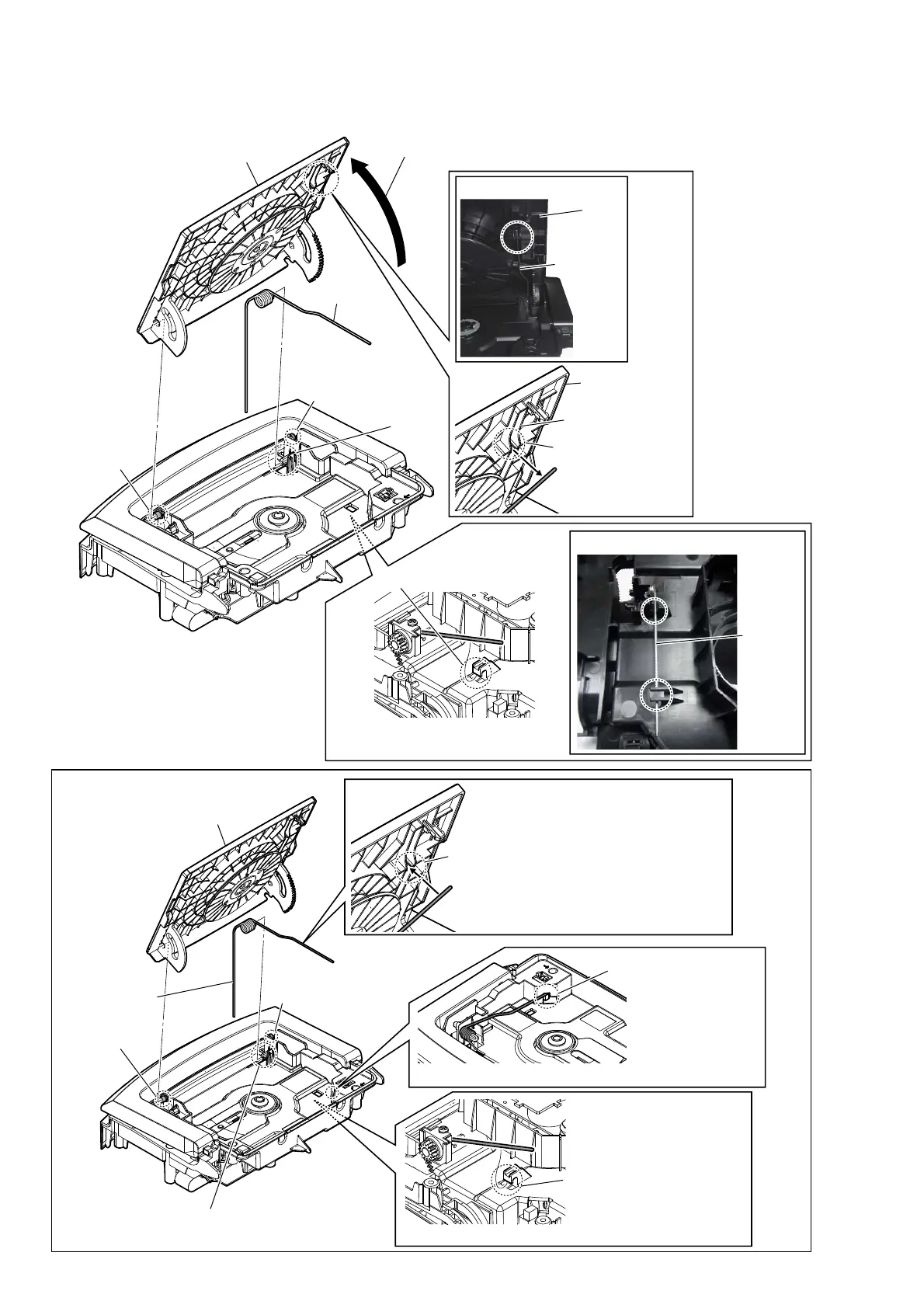

2-5. SPRING (CD)

1 Open the CD lid.

4 CD lid assy

6 spring (CD)

spring (CD)

4 shaft

3 shaft

6SULQJ&'VHWWLQJ

CD lid

2 Remove the spring

(CD) from the ditch

of CD lid.

ditch

CD spring

CD lid

3 shaft

1 Insert the

spring (CD).

6 Remove the spring (CD) from the ditch of the

cabinet (upper), insert to the ditch of the CD lid.

2 Insert the shaft to the spring (CD).

$VVHPEOLQJSURFHGXUHRIWKHVSULQJ&'

5 Insert the shaft to

the CD lid assy.

CD lid assy

5 Insert the shaft

to the CD lid

assy.

4 Hook the spring (CD) on claw.

–&DELQHWXSSHUEORFNERWWRPYLHZ–

5 claw

3 Hook the spring (CD) to

the ditch temporarily.

–&DELQHWXSSHUEORFNUHDUYLHZ–
