Sony ZS-RS70BT - Cabinet (Front) Block-1

ZS-RS70BT/RS70BTB
8

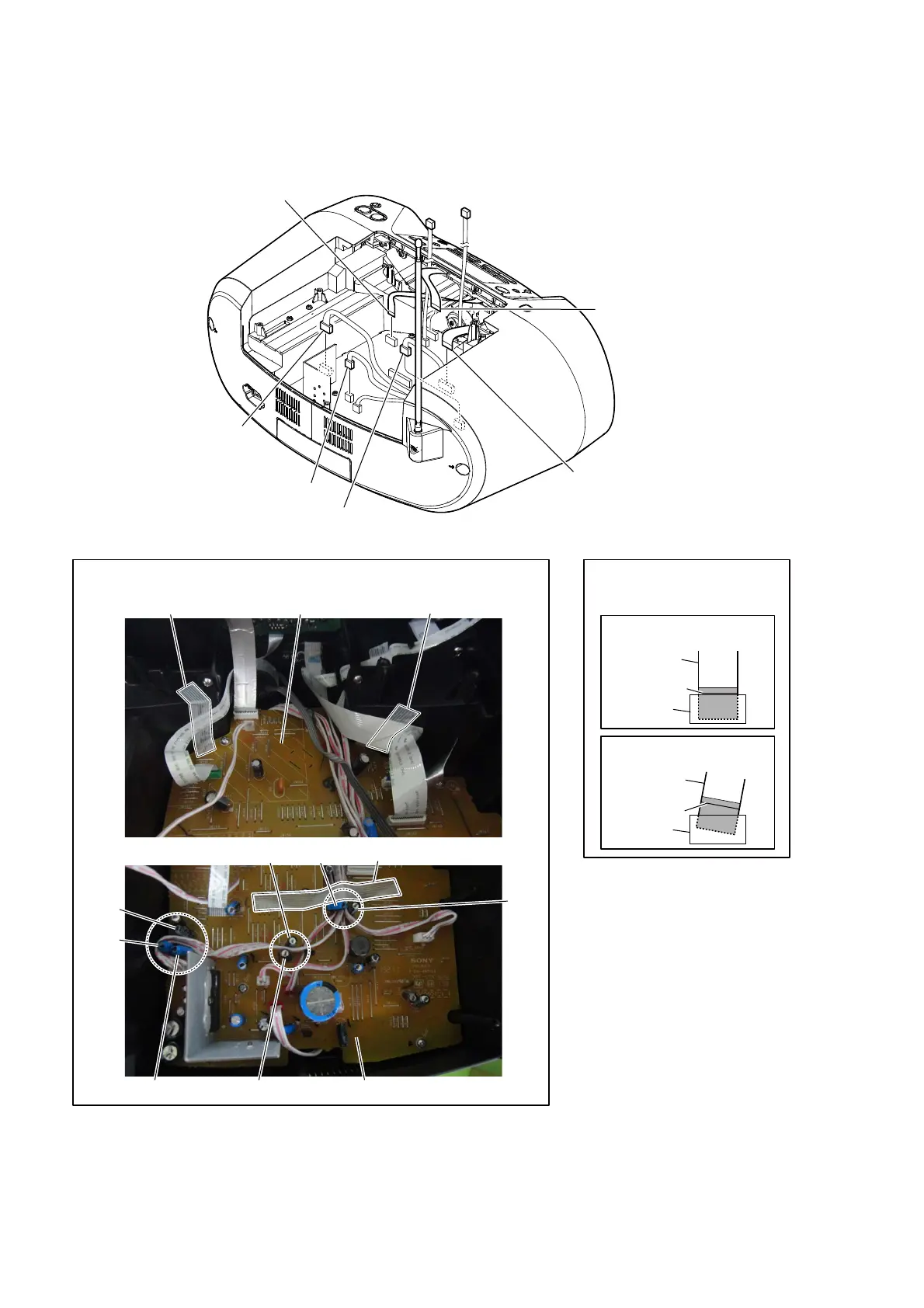

2-3. CABINET (FRONT) BLOCK-1
1 flexible flat cable (14 core)
(CN807)
5 connector
(CN902)
6 connector
(CN301)
4 connector
(CN303)
3 flexible flat cable (8 core)
(CN804)
2 flexible flat cable (11P)
(CN801)
:LUHVHWWLQJ
tape (sub material) MAIN board
MAIN board
C426
C720
tape (sub material)
tape (sub material)
–7RSYLHZ–
C932
C928C139
C239
C301
colored line
colored line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
OK
NG
Note:
When installing the flexible flat
cable, ensure the colored line.
No slanting after insertion.
–5HDUYLHZ–
