ZS-RS70BT/RS70BTB
7
Note: Follow the disassembly procedure in the numerical order given.

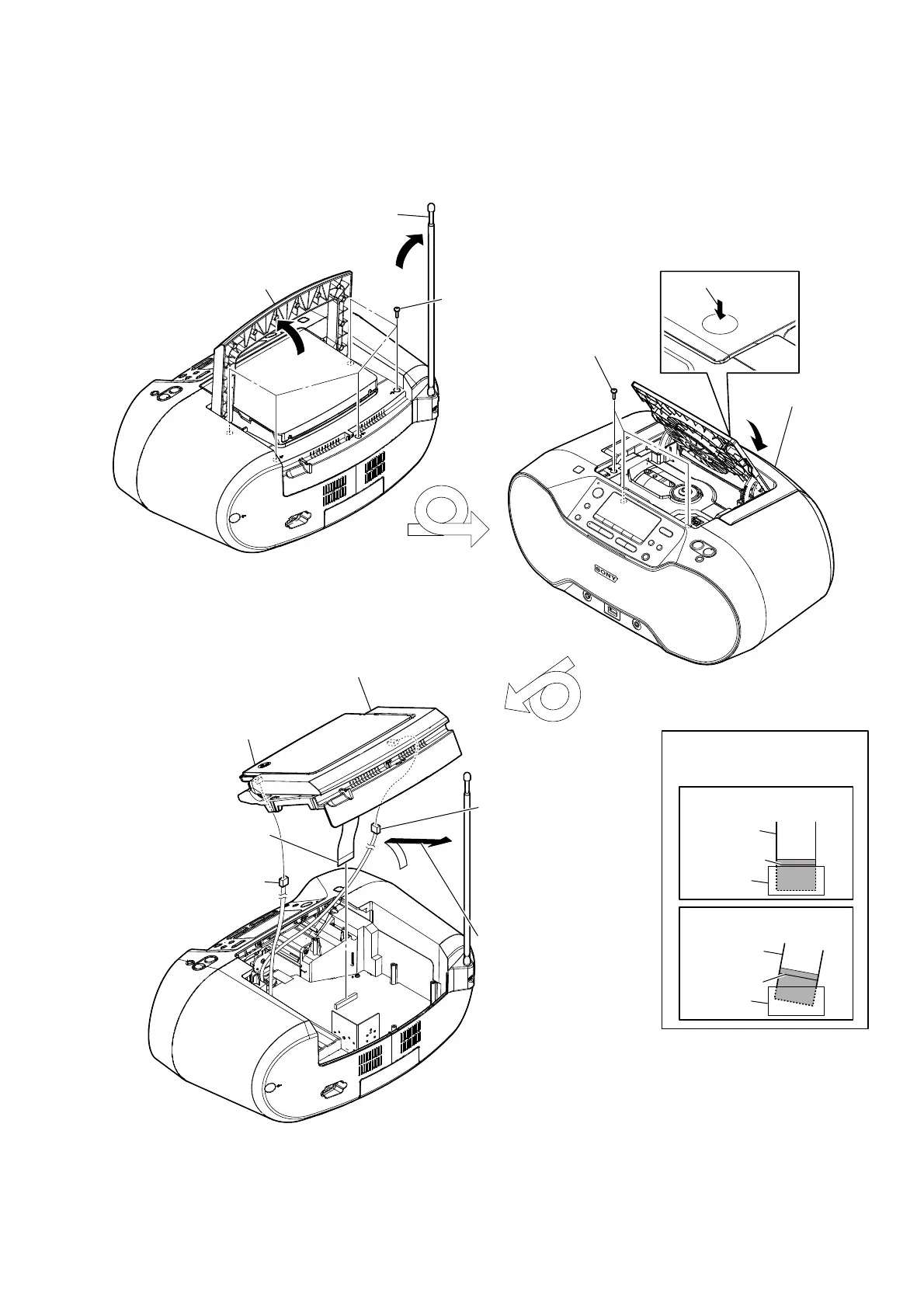

2-2. CABINET (UPPER) BLOCK
1
Lift up the hundle.
8
Remove the cabinet (upper)
block in the direction of an
arrow.
qs
cabinet (upper) block
4
Put away the handle.
PUSH
OPEN/CLOSE
Z
– Rear view –
– Rear view –
– Front view –
0 connector
(CN703)
9 connector
2 Lift up the telescopic
antenna.
5 Open the CD lid.
7 Close the CD lid.
3 five tapping screws
(BV B2.6)
6 three tapping screws
(BV B2.6)
qa flexible flat cable (27 core)
(CN806)
colored line
colored line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
OK
NG
Note:
When installing the flexible flat
cable, ensure the colored line.
No slanting after insertion.
To Next Page
