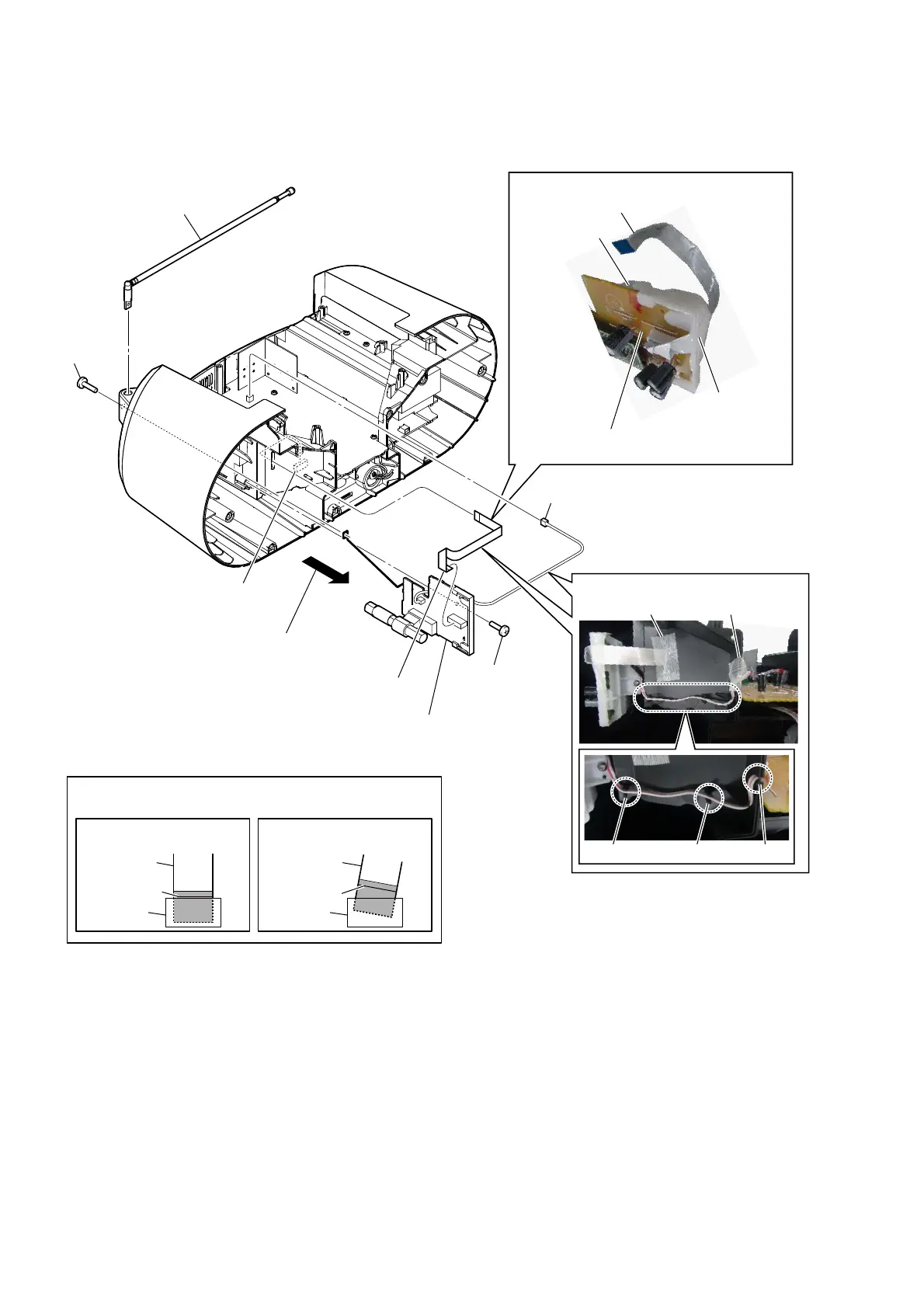

2-13. TUNER BOARD (RS70BT)/DAB BOARD (RS70BTB)
:LUHVHWWLQJ
5 tapping screw
(BV B2.6)
1 screw
(P M3)
2 telescopic antenna
(ANT1)
3 connector
(CN903)
4 connector
(CN808)
tape
(sub material)
7 flexible flat cable (11P)
(CN4)
flexible flat cable (11P)
6 Remove the speaker TUNER/DAB board
block in the direction of an arrow.
8 TUNER board (RS70BT)/
DAB board (RS70BTB)
TUNER board (RS70BT)/
DAB board (RS70BTB)
holder (PWB, TU)
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat
cable
flexible flat
cable
connectorconnector
OK
NG
Note:
When installing the flexible flat cable,
ensure the colored line.
No slanting after insertion.
tape (sub material) tape (sub material)
–)URQWYLHZ–
rib rib ditch
