SOOKOOK P3M - External Dimensions

8
Sookook Corporation

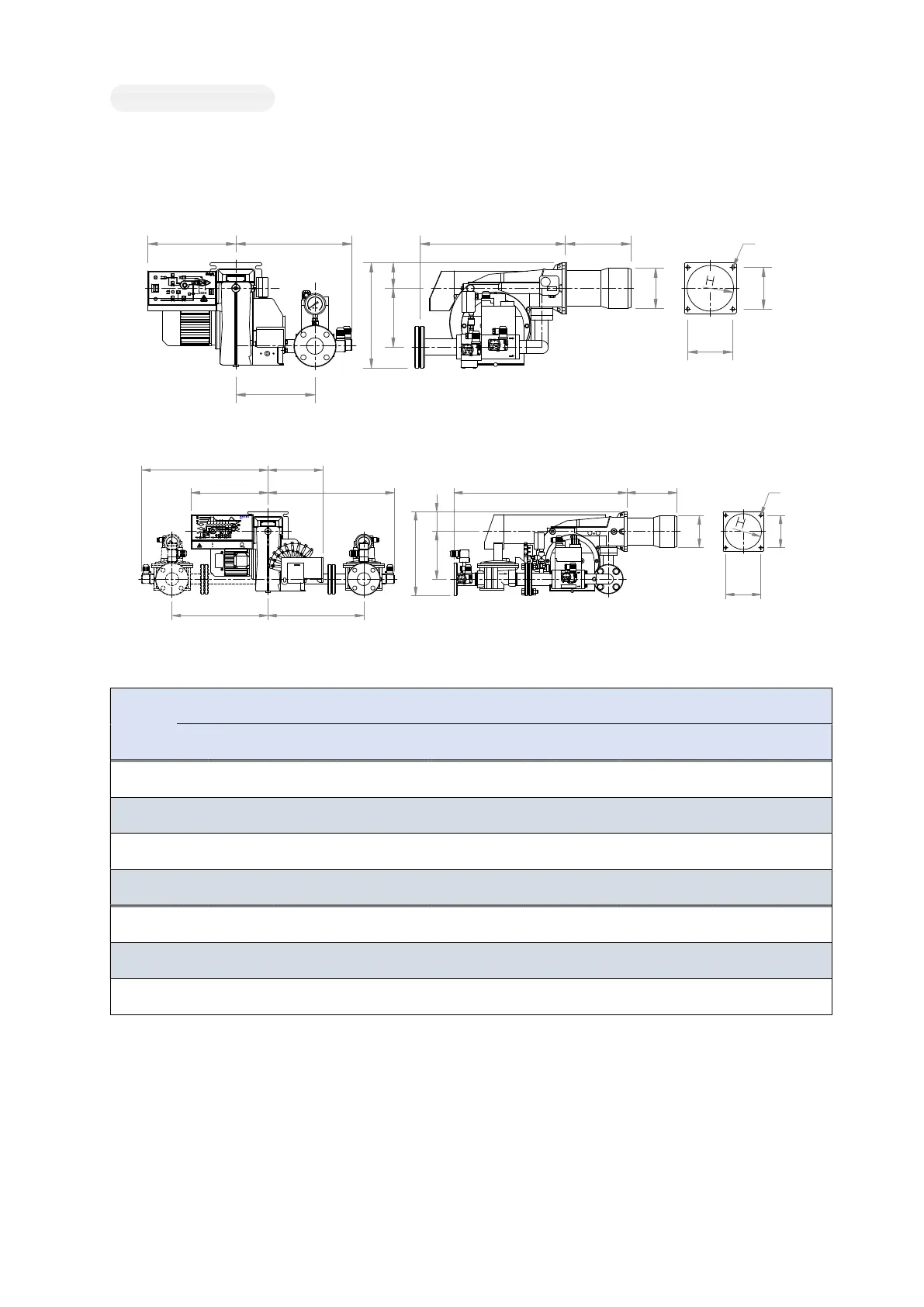

1D. External Dimensions
This is the main dimensions of the standard product and may change slightly depending on assembly tolerances. For non-standard
models, please refer to the detail assembly drawing.
[Figure 1D-A. P3M - P60M, P4M LX - P60M LX (Low-Gas Pressure, Standard Model)]
[Figure 1D-B. P3M - P60M, P4M LX - P60M LX (Mid-Gas Pressure, Progressive High-Low / Modulating Model)]
[Table 1D-A. P3M – P60M, P4M LX – P60M LX Dimension]
Model
Dimension[mm] Boiler Dimension[mm]
B C C1 E E1 E2 F F1 F2 G J Z W U U1 U2 H P R M
P3M 230 650 810 320 360 600 430 600 260 150 220 95 400 290 450 450 170 165 155 4 – M10
P4M 230 650 810 320 360 600 430 600 260 150 220 95 400 290 450 450 170 165 155 4 – M10
P5M 240 720 830 370 380 640 480 640 300 184 250 120 460 345 500 500 200 205 190 4 – M10
P60M 240 720 830 370 380 640 480 640 300 184 250 120 460 345 500 500 200 205 190 4 – M10
P4M LX 230 650 810 320 360 600 430 600 260 150 220 95 400 290 450 450 170 165 155 4 – M10
P5M LX 350 720 830 370 380 640 480 640 300 184 250 120 460 345 500 500 200 205 190 4 – M10
P60M LX 350 720 830 370 380 640 480 640 300 184 250 120 460 345 500 500 200 205 190 4 – M10
C – Gas filter (low gas pressure, P ≤ 30mbar), C1 – Governor (high gas pressure, P > 30mbar)
E, F, U – High/Low
E1, F1, U1 – (Progressive) High/Low, Modulating)
E2, F2, U2 – Gas train with Left Side
GW 50 A5
0036
P
M
R
F
E
GV1
GV2
EV1
EV2
MV
LB
TA
DM
LOW
AUTO
HIGH
NORMAL
RESET
PBLK
LK
High voltage
DANGER
B
C
U
G
J
Z
W
GW 50 A5
0036
NORMAL
RESET
PBBS
경 고
설치 및 사용전에 사용설명서의 안전상 주의사항을
커버를 열기 전에 입력전원을 차단한 후 감전사고를
방지하기 위해서 3분 이상 기다려 주십시오.
상해 및 감전의 우려가 있습니다.
읽고 지켜주십시오.
FGDR50/40
F1
B
G
C1
J
Z
W
E1
U1U2
E2
EV1GV2
GV1
PGSL
CRTV
EV2PGLK PGSH
RESET
PBLK
NORMAL
DM
Ⅰ
LS
Ⅴ
Ⅳ
Ⅲ
Ⅱ
TA
LTV LTALTU LBLKLEV1
LGV1
LRDLEV2
LGV2
DMV-D 512
P
M
R
0.74 KW
거명 모텍
2370077
http://www.sookook.co.kr
50/40
GW 500 A5
0036
F2
GW 500 A5
0036
