Gas Governor Setting
If the gas supply pressure is over 3.3kPa (330mmH2O) or in the case of severe gas pressure fluctuations, a gas governor is installed to supply
the gas with a constant pressure to the burner. In this case, it is necessary to correctly adjust the gas pressure suitable for the gas usage.
 Pressure adjustment and spring change method
- Gas Governor adjustment
FGDR – FSDR – FG1B – ST4B
SKP25
1. Open the cap A.
2. Turning B clockwise direction, pressure will increase
3. Turning B counter-clockwise direction, pressure will decrease.
4. Set the correct pressure.
5. Close the cap A.
- Spring Change
1. Open the cap A.
2. Disassemble B & C.
3. Pull out spring D.
4. Apply new spring.
5. Assemble B & C, and adjust the pressure.
6. Close the cap A.

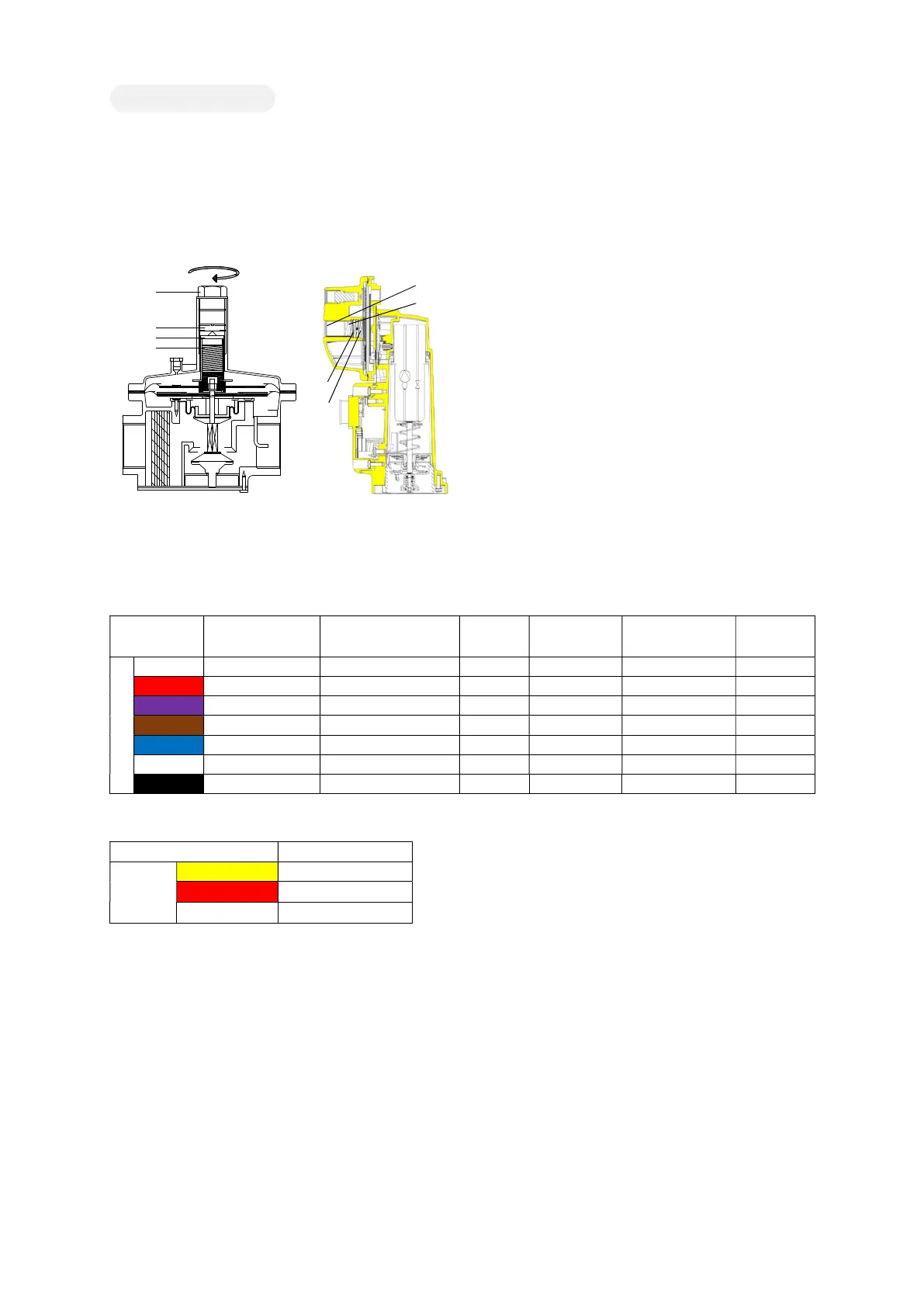

[Figure 2B-B. Gas governor]
 Spring Application
[Table 2B-A. GIULIANI ANELLO - FGDR, FSDR, FG Type Spring application (mbar)]
Spring
FGDR 15 – 20 - 25
FG1B 15 – 20 - 25
FGDR 32 – 40 - 50/40
FG1B 32 – 40 - 50/40
FGDR 50
FG1B 50
FSDR 65 – 80
FG1B 65 - 80
ST4B
20 – 25 – 32 - 40
ST4B 50
C
o
l
o
r
NEUTRAL 10 – 30 10 - 25 10 - 35 10 - 30 10 - 25 10 – 30
RED - - - 25 - 80 - -
VIOLET 25 – 80 20 - 70 30 - 80 60 - 120 20 - 70 20 - 70
BROWN 70 – 160 65 - 130 70 - 220 - 65 - 120 65 - 150
BLUE 150 – 280 - 210 - 350 100 - 220 - -
WHITE 270 - 350 120 - 250 - 200 - 350 110 - 230 140 - 270
BLACK 240 - 350 - - 220 - 340 260 - 380
[Table 2B-B. SIEMENS - SKP25 Spring application (kPa)]
Spring SKP25
Color
YELLOW 1.5 - 12
RED 1 - 25
BLANK 10 - 36
 Unit (mmAq = mmH2O)
- mbar = 10 mmAq
- kPa = 100 mmAq
A
B
C
D
A
B
C
D
