Note: Before placing the PoE injector:
Ì Do not cover the PoE injector or block the airflow to the PoE with any
foreign objects. Keep the PoE away from excessive heat and humidity and
free from vibration and dust.
Ì Ensure that the cable length from Ethernet network source to the AP50
does not exceed 100 m (330 ft). The PoE is not a repeater and does not
amplify the Ethernet data signal.
LED display
Off Power off
Yellow continuously Power on
Green continuously A remote terminal is connected
Green blinking Overload state or short-circuit
Interfaces
Input (Data In) 1 x 10/100/1000 Base-TX
Output (Data & Power Out) 1 x 10/100/1000 Base-TX, plus 50 VDC
Installing the PoE injector
1. Connect an Ethernet cable to the Data & Power Out interface.
2. Connect the other end of this Ethernet cable to the Ethernet interface of
the AP50.
3. Connect an Ethernet cable to the Data In interface.
4. Connect the other end of this Ethernet cable to your network switch.
5. Connect the AC power cord from the scope of supply to the
PD-9001GR/AC.
6. Connect the AC power cable to an AC outlet (100 – 240 VAC).

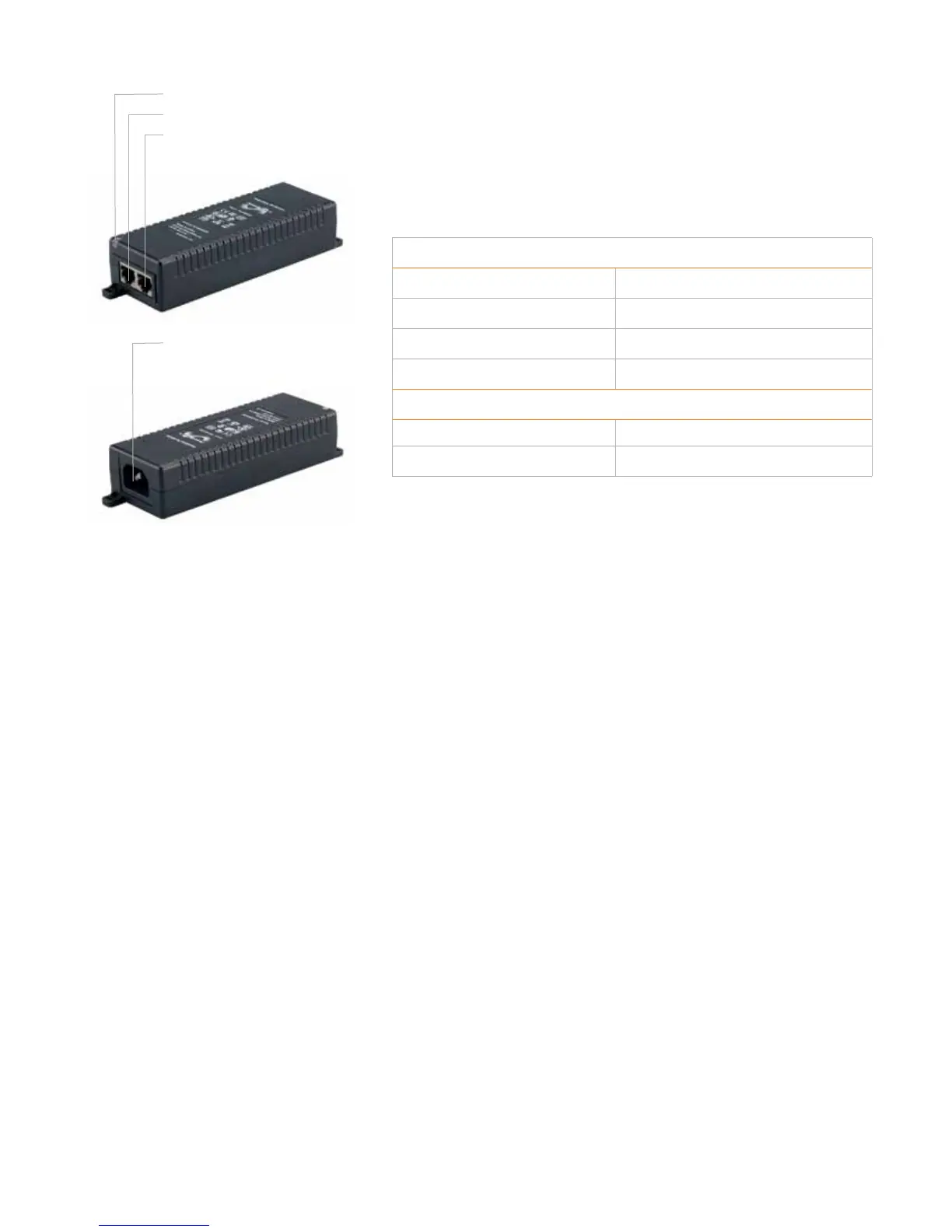

LED
