9
Placing into operation
Scope of supply
The supplied parts are indicated in the Sophos Access Points Quick Start
Guide.
Mounting instructions
All access points can be put on a stable horizontal surface or can be
mounted on the wall. The Sophos AP30 can also be mounted on the ceiling.
Please take note of the following security hints:
Warnings and precautions
The access point can be operated safely if you observe the following notes
and the notes on the device itself.
General precautions
Review the electrical and general safety precautions that came with the
components you are adding to your access point. Allow the power supply
modules to cool before touching them.

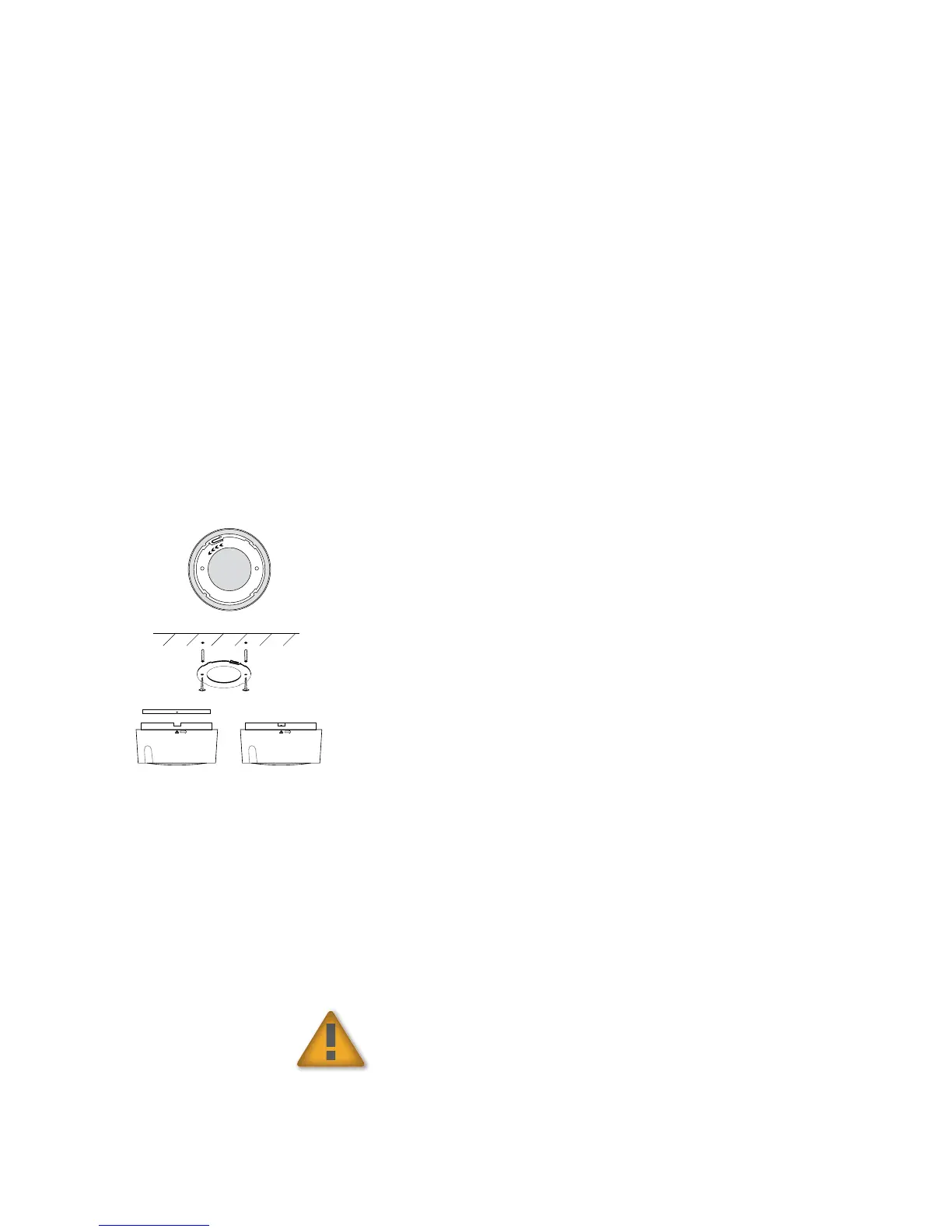

Sophos AP30 mounting instructions
The Astaro AP30 can be mounted on the ceiling. Screws are included
in delivery. Use the screws from the scope of supply or screws whose
dimensions correspond with the mounting holes in the bracket.
1. Remove the bracket from the housing:
Unlock the bracket on the backside by turning it (approx. 5°) anticlockwise.
Then you can take off the bracket.
2. Mount the bracket on the ceiling:
Use the screws and anchors from the scope of supply.
3. Place the access point on the bracket:
Place the housing on the bracket and lock it by turning clockwise until stop.
Connection and configuration
How to connect the access point to the internal network is described in the
Sophos Access Points Quick Start Guide.
Power-over-Ethernet injector
(optionally included with AP30)
The PoE injector PD-3501/AC converts AC power to 50 V; DC power is then
provided over the Ethernet cable. This PoE injector supports up to 10/100
Mbps pass through data rates. The single port PD-3501/AC can be powered
via universal AC input and can provide up to 15.4 W.
Warning: Do not use cross over cable between the PoE injector PD-3501/AC
output port and the Access Point.
Sophos AP30 Operating Instructions
