UTM 110/120 Operating Instructions
CE Labeling, FCC and Approvals
The UTM 110/120 appliance complies with FCC Class B, CE, C-Tick, VCCI
and UL.
Important Note: For computer systems to remain CE and FCC compliant,
only CE and FCC compliant parts may be used. Maintaining CE and FCC
compliance also requires proper cable and cabling techniques.

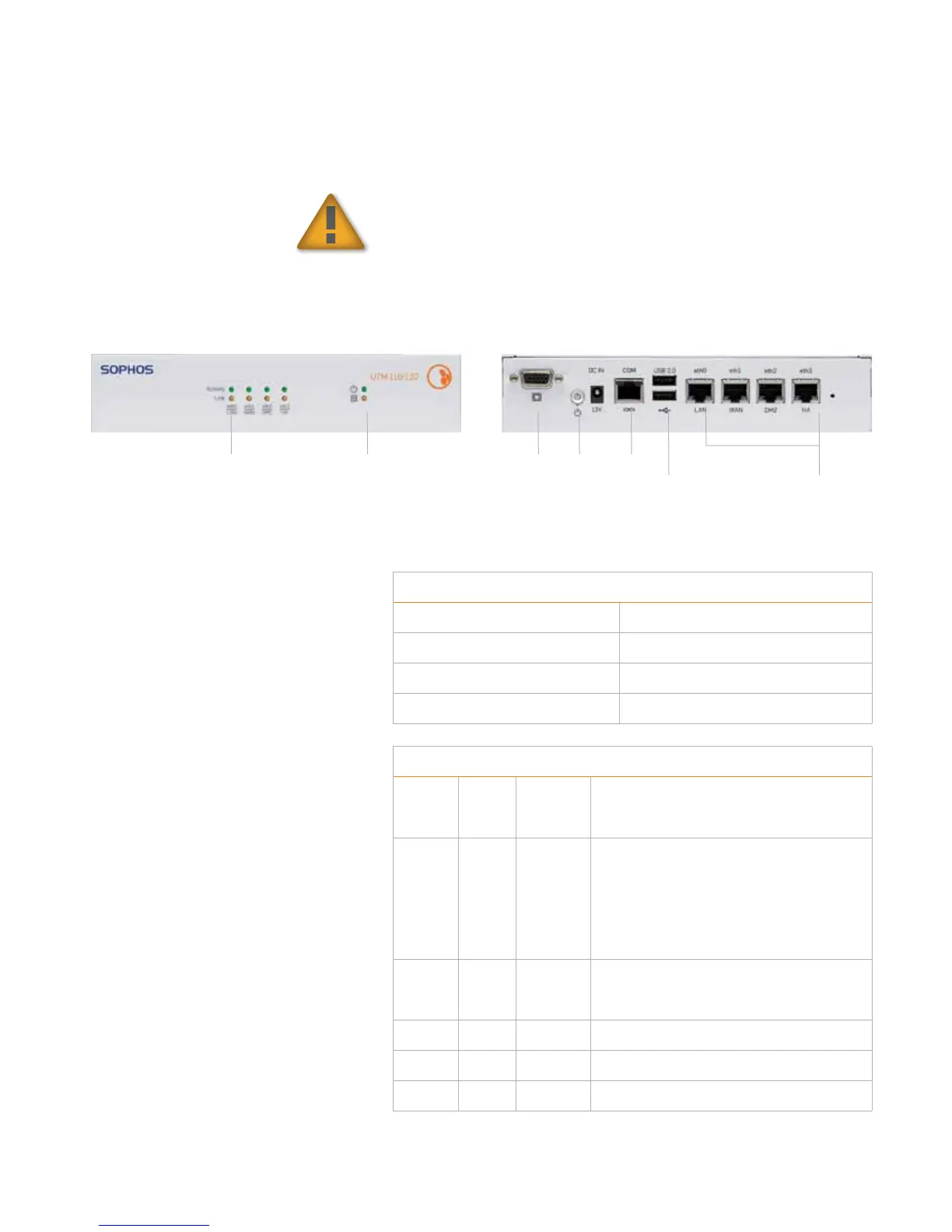

Operating Elements and Connections
Sophos UTM 110/120 (rev.5)
Controls
Power (LED Display)
Green Power on
Green / Yellow Link
Green / Yellow Activity
Yellow Hard drive
LEDs on each Ethernet connector (Speed LED: left, Act/Link LED: right)
Act/Link Green Constantly
1. The Ethernet port is receiving power.
2. Good connection between the Ethernet
port and hub.
Off
1. The adapter and switch are
not receiving power.
2. No connection between both
ends of the network.
3. Network drivers have not been loaded
or do not function correctly.
Flashing
The adapter is sending or receiving network
data. The frequency of the flashes varies with
the amount of traffic.
Speed Yellow On Operating at 1000 Mbps
Green On Operating at 100 Mbps
Off Operating at 10 Mbps if Act/Link is on
LED: data
activity link
LED: data
activity link
VGA
power
switch
COM
2 x USB 4 x 10/100/1000
Base-TX ports
