4.0: MIXER CHANNELS
MIXER CHANNELS
4.0: MIXER CHANNELS

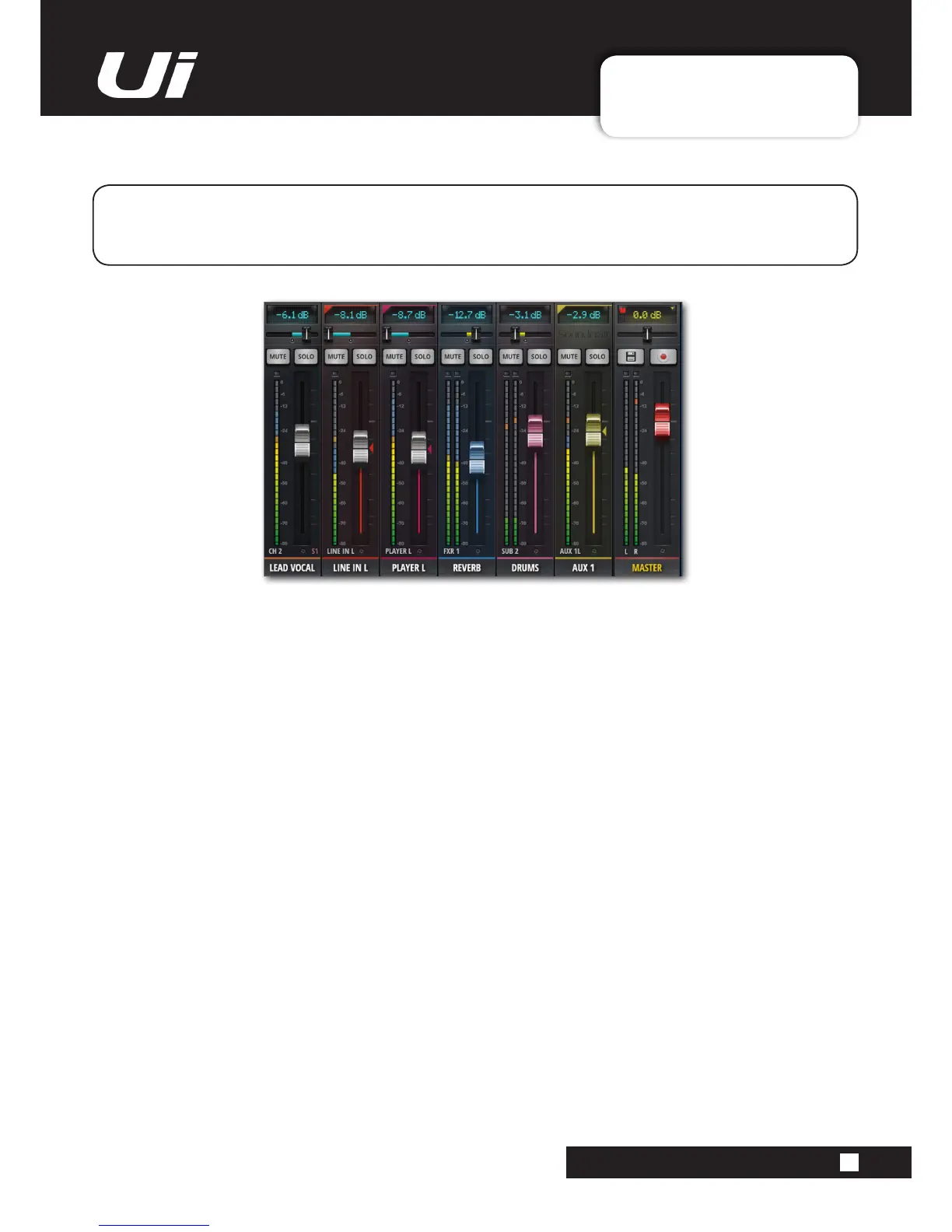

The Ui mixers has a variety of input and output channel types. You can view all channels in the main
MIX screen and drag-scrolling along the virtual console. You can also use the MIX page Slideout
panelstoselectspecicchanneltypesandpresetviews.
INPUT CHANNEL - sections 4.1 and 4.2
A Ui Input channel consists of a GAIN section (physical input, pre-amp, phase, phantom power etc) and the
MIX section. Input channels feed the main stereo bus (to the Master Channel), the aux send busses (to the Aux
Master channels), and the FX send busses (and on to the FX Returns). An input channel’s contribution to these
busses is controlled on the relevant software page, or in the channel’s EDIT screen.
AUX SENDS / AUX MASTER CHANNEL - section 4.3
Aux Outputs (short for Auxiliary) are the outputs on the top right of the Ui hardware. These outputs each have
their own mix of input sources, separate from the master mix. Generally, aux outputs are used for musicians to
heartheirownmixonstageviaastagemonitorspeakerortoheadphoneampliersforin-earmonitoring.
Alternatively, the aux outputs can be sent to external hardware FX units.
SUB GROUP MASTER CHANNEL - section 4.5
If you want to have individual control over the drum kit mix components, for example, but also want single fader
control over the whole kit’s contribution to the mix, you would use a Sub Group.
FX SENDS / FX RETURN CHANNEL - section 4.4
FX SENDS faders effectively determine the amount of effect on each input channel. They work much like aux
sends in that a mix of input channel contributions is created on the FX SENDS page - one for each FX
processor.
MASTER CHANNEL - section 4.6
The Master Stereo Channel is the output channel for the main stereo (left & right) mix - determined by the input
channel and FX Return channel faders and pan/balance controls.
