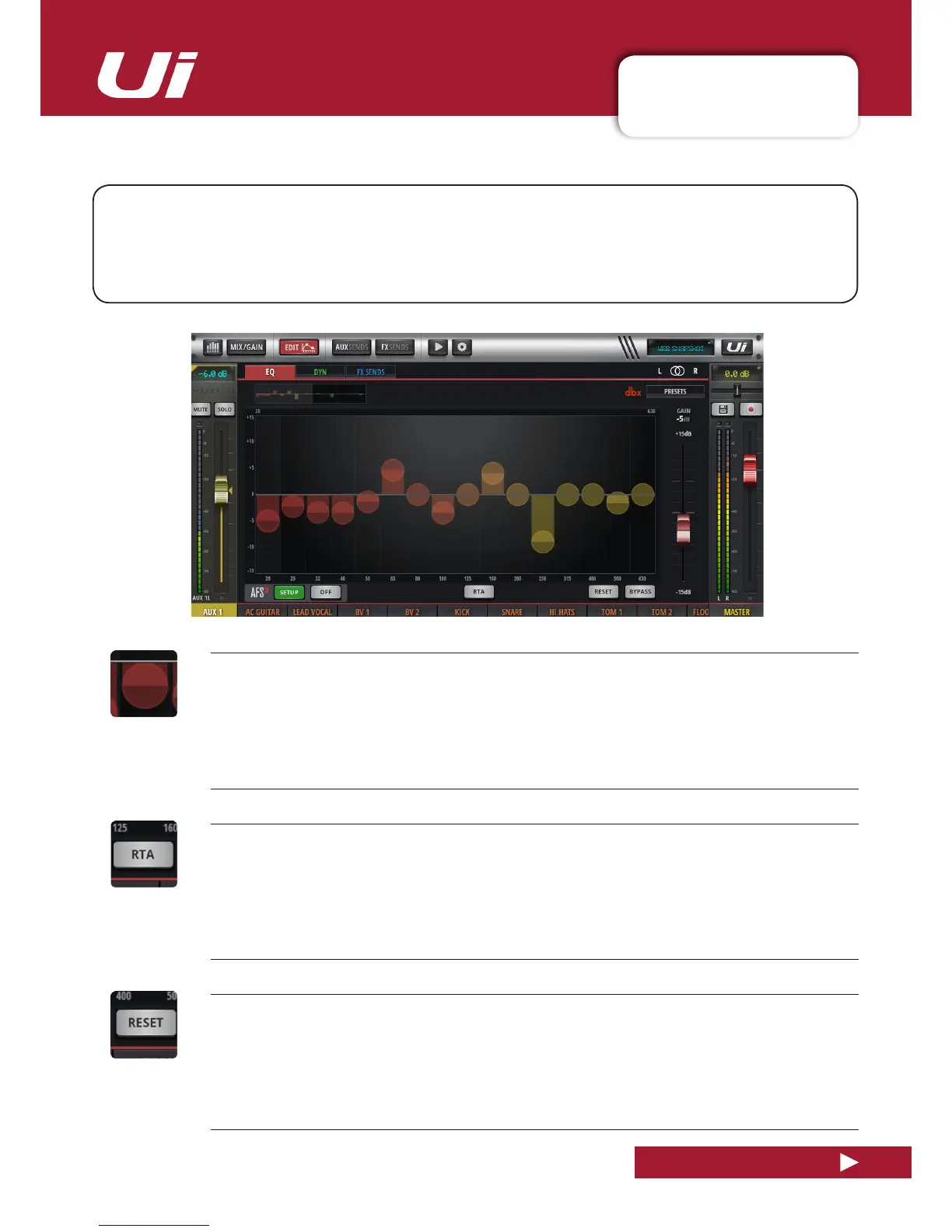

5.3: GRAPHIC EQ
CHANNEL EDIT > GRAPHIC EQ
5.3: GRAPHIC EQ
Ui Aux Send Master channels and the Stereo Master Channel incorporate Graphic EQ (GEQ) instead
oftheparametricEQoftheinputchannels.Thisincludes31xedfrequencybands(selectedinbanks
of 16 and 15 with the mini-GEQ graphic) with adjustable boost/cut. In addition, the GEQ screen gives
access to the dbx AFS
2
(Automatic Feedback Suppression) processing. The display also incorporates
an optional Real Time Analyser (RTA), which shows a spectral view of the incoming signal.
GEQ Band ‘Ball’
Adjust the boost/cut in this audio band
Each ball can be dragged up (boost) or down (Cut), or double-tapped/clicked to reset to zero. Switch bands in
two banks of 16 and 15 by selecting the upper or lower portion of the mini GEQ graphic.
RTA
Activate the Real Time Analyser feature
The RTA display shows a real-time spectral view of incoming audio. This is sometimes useful for targeting specific
characteristics with EQ bands quickly.
RESET
ResettheGEQto‘at’

SoundCraft UI12 Specifications

General

Channels	12
Mic Preamps	4
Hi-Z Inputs	2
USB Playback	Yes
USB Audio Interface	2-in/2-out
Wireless Control	Yes
Mic Inputs	4 x XLR
Effects	Reverb and delay
Connectivity	Wi-Fi
Wi-Fi	Built-in
Power Supply	External
Dimensions	177mm x 297mm
Weight	2.29 kg
Line Inputs	4 x XLR/TRS combo jacks (shared with mic inputs), 2 x RCA (L/R)
Control	Remote control via HTML5 compatible web browser
