SP Controls PixiePro PX2-MP-IR - Group 3 - Security; Group 4 - Interface Settings

Configuration Settings
Group 1 - Core Functions
-Setting1-Multiple-DeviceTCMMode
-Setting2-“Device0”onTCMinMultiple-DeviceMode
-Setting3-InputSelectionLightsonTCMPersistinSingle-DeviceMode
-Setting4-DefeatIn-ProgressMacroonButtonPress
-Setting5-Fixed-LengthCodeLearning
-Setting6-Fixed-LengthCodeLearningAppliestoSingle-CodeLearning
-Setting7-High-FrequencyCarrierDefault
Group 2 - Timers
-Setting1-AutomaticShutdownTimer
-Setting2-WarmUpDisplayTimer
-Setting3-CoolDownDisplayTimer
-Setting4-SecurityRetryLockoutTimer
Group 3 - Security
-Setting1-Enable/DisableSecurityLock
-Setting2-LockonInactivityShutdown
-Setting3-EnterorRetrieveSecurityCode
Group 4 - Interface Settings
-Setting1-ButtonClickOn/Off
-Setting2-ClickonEveryMacroSend
-Setting3-LEDBrightnessLevel
-Setting4-EnableAmbientLightAdjust
-Setting5-VolumeAnimationOn/Off
-Setting6-Press-and-holdOff
Setting Configuration Values
Settingsareoftwotypes:togglingandscalar.Togglingsettingsareeitheronoroff.Scalarsettings
havevalueswithinarange,thelowestsettingbeing0-0,thehighestbeing3-7.
UsetheVolumeUpandVolumeDownbuttonsanddisplaytoadjusteachsetting.Togglingsettings
togglebetweenon(indicatedby“splayed”oralternatingVolumeDisplaylightsilluminated)andoff
(indicatedbyoneLEDinthecenteroftheVolumeDisplayilluminated).Scalarsettingsmaybeset
to32differentvalues,rangingfrom0-0through3-7.Seethefigurebelowforexamples.
20
Toggle - On
Toggle - Off
0-0
0-1
0-7
1-7
2-7
3-7
3-1

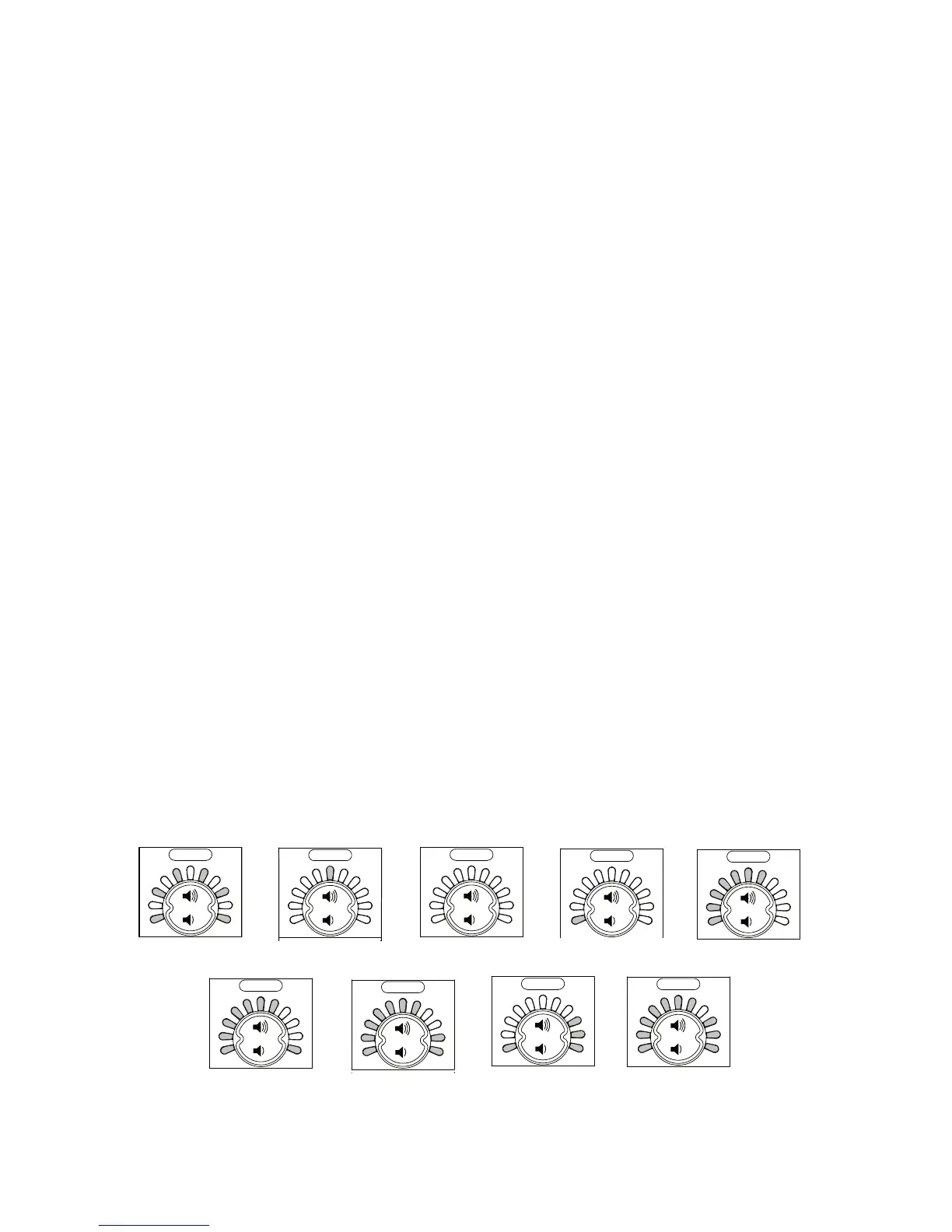

Figure 17: VolumeDisplaysettingexamplesfortoggling
andscalarvalues
