Spanco A Series - Page 25

CAD GENERATED DRAWING,
DO NOT MANUALLY UPDATE,
SIZE
CAD FILE:
DWG. NO.
SHEET
1
OF
2
DATE
APPROVALS
CHECKED
APPVD:
PLOT DATE:
PROJECT NO.:
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
FRACTIONS DECIMALS ANGLES
±
1/16" .XX
±
.05
±
1
°
MATERIAL
FINISH
WT.
REV.
SCALE:
DO NOT SCALE DRAWING
STATUS:
.XXX±.005
.XXXX±.0005
REV.
DATE
NAME
REVISION DESCRIPTION
C
-
-
DRAWN
MATERIAL HANDLING
JRM
01/31/22
-
Item
Quantity
Building Materials Description
1 1
Beam
2 2 Upright Tube
3 2
A-Frame
4
2
Top Plate
5
2*
Hitch Pin
6
4
Caster
7
16
Lock Washer
8 16
Flat Washer
9 16
Hex Nut
10 16
Hex Bolt
11 8
Hex Bolt
12 8
Lock Washer
13 8
Hex Nut
14
Quantity
Varies
Clipped Washer
15 8
Beam Clamp
16 2
Optional Two-Foot Extension
SHEET 1 OF 2
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SPANCO
INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION
OF SPANCO IS PROHIBITED.

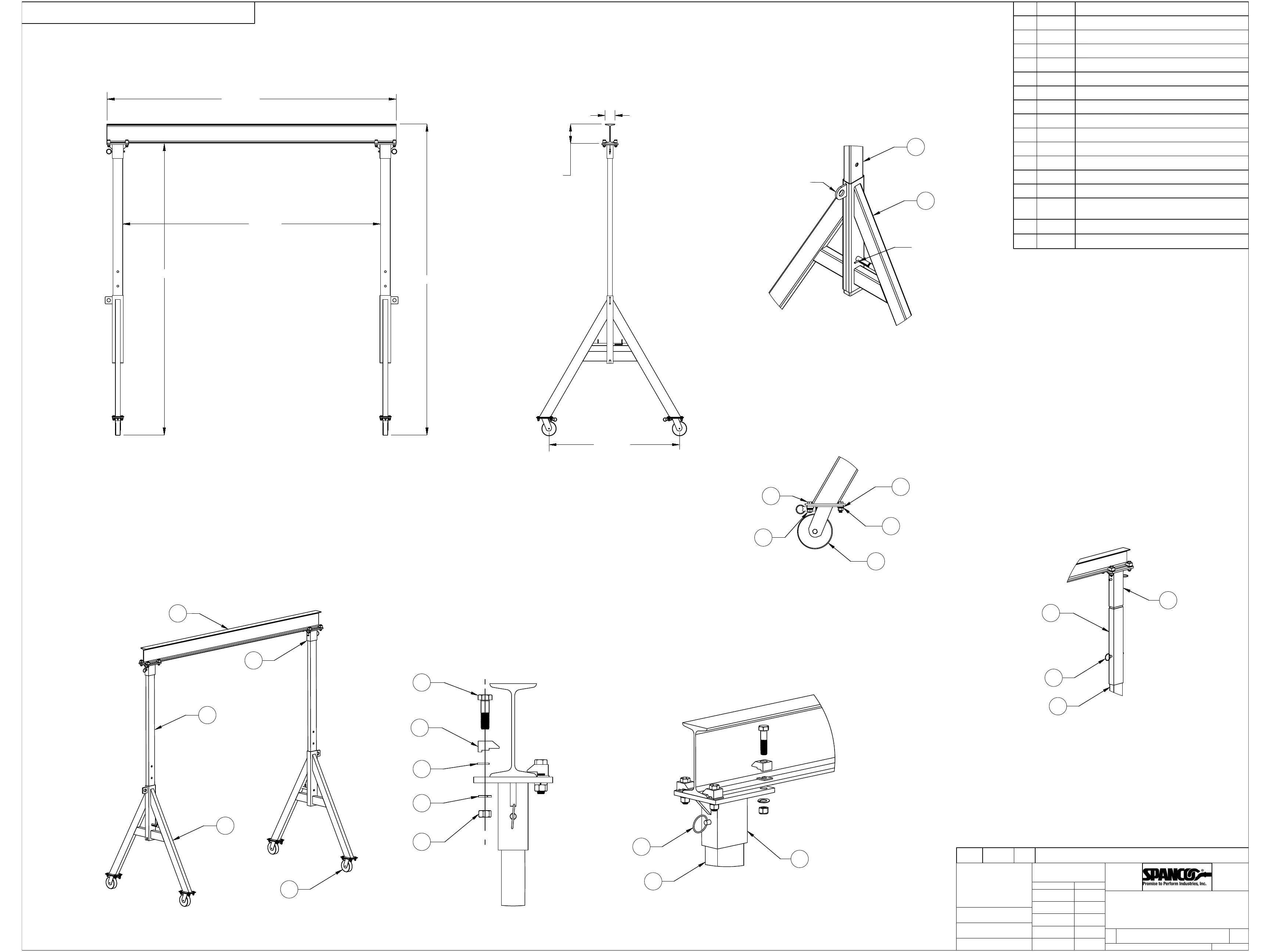

A-SERIES ALUMINUM GANTRY CRANE
ASSEMBLY DRAWING
JRG
07/01/22
7
8
10
9
Lifting Lug
Load Pin
A-SERIES-ALU-ASSEMBLY
Refer to the A-Series Aluminum Gantry Assembly and Maintenance
Instruction Manual for all necessary torque specifications.
Detail "A"
Detail "B"
6
3
2
Height Under Beam
Overall Span
Clear Span
Overall Height
Tread Width
Beam Flange Width
Beam Size
1
3
2
6
3
14
11
12
13
15
4
5
4
Detail "D"
Detail "C"
Detail "E"
4
2
5
16
*4 for systems with the optional two-foot extension.
