Spanco A Series - Page 26

P/N 53-0589
DRAWN:
DO NOT SCALE DRAWING
PROJECT NO.:
PLOT DATE:
APPVD:
CHECKED:
DO NOT MANUALLY UPDATE,
CAD GENERATED DRAWING,
REV.
DATE
NAME
REV.
OF
CAD FILE:
SHEET
2
REVISION DESCRIPTION
SCALE:
DATE
WT.
APPROVALS
C
SIZE
DWG. NO.
2
-
01/31/22
SHEET 2 OF 2
P/N 53-0039
NOTE 1:
LABEL 53-0001 "A" SHOULD BE CENTERED ON BOTH
SIDES OF THE BEAM.
LABEL 53-0039 "C" SHOULD BE PLACED ON BOTH
UPRIGHT TUBES ABOVE THE LOWEST HOLE.
LABEL 53-0003 "D" SHOULD BE PLACED ON BOTH
SUPPORT LEGS.
LABEL 53-0004 "E" SHOULD BE PLACED ON BOTH
SUPPORT LEGS.
LABEL 53-0589 "F" SHOULD BE PLACED ON BOTH
A-FRAMES OR UPRIGHT TUBES AT EYE LEVEL
(APPROXIMATELY 62 INCHES).
LABEL "G" SHOULD BE PLACED ON EACH A-FRAME AND
ON LABEL "A" INSIDE THE OUTLINED AREA.
"D"
"C"
"E"
SEE NOTE 1 FOR MORE INFO.
SEE NOTE 1 FOR MORE INFO.
"A"
07/01/22JRG
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF RIGID
LIFELINES. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION
OF RIGID LIFELINES IS PROHIBITED.
"F"
SEE NOTE 1 FOR MORE INFO.
P/N 53-0001
P/N 53-0003
SEE NOTE 1 FOR MORE INFO.
P/N 53-0004
SEE NOTE 1 FOR MORE INFO.
A-SERIES-ALU-ASSEMBLY
"G"
SEE NOTE 1 FOR MORE INFO.
MATERIAL HANDLING

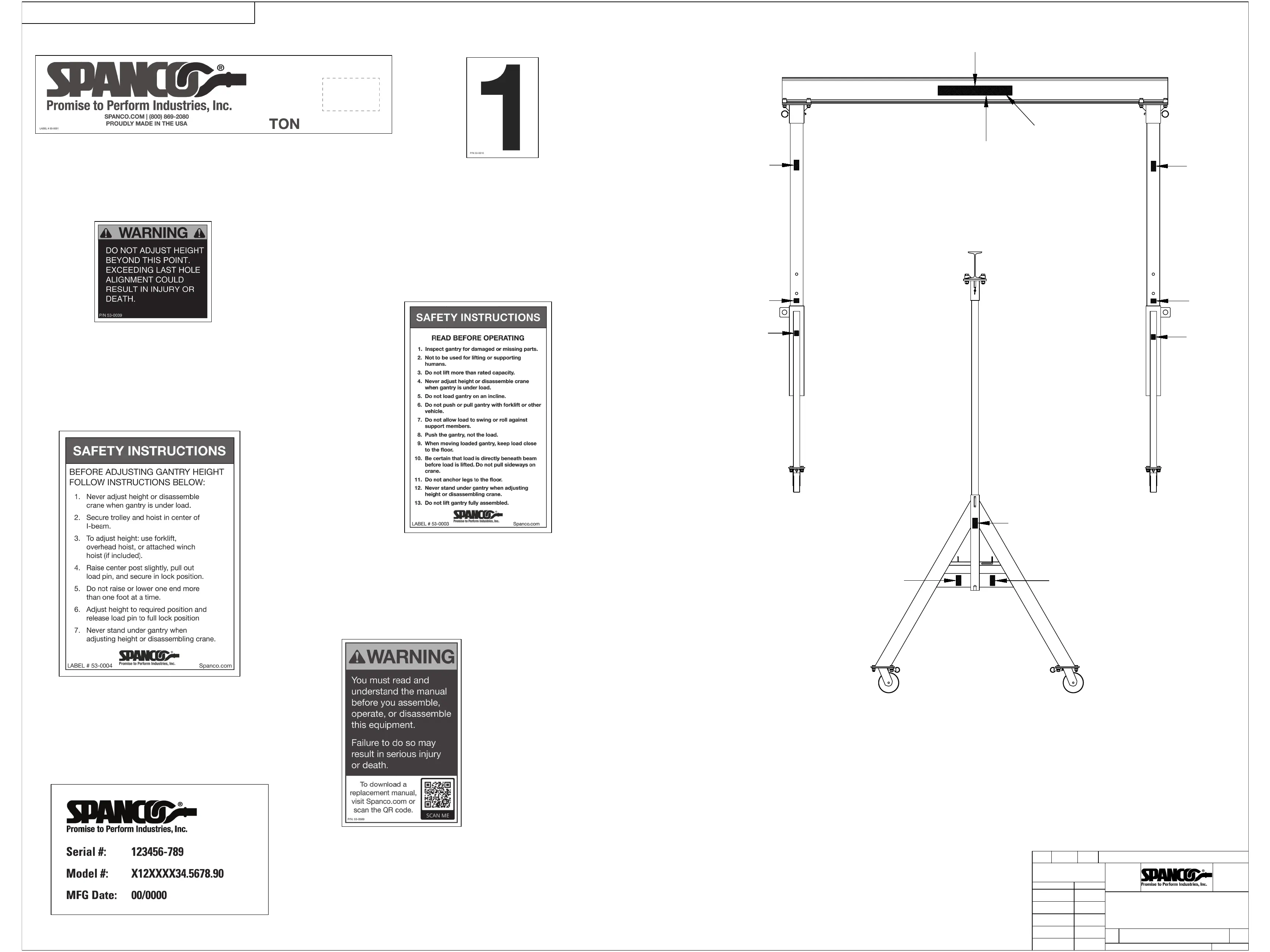

A-SERIES ALUMINUM GANTRY CRANE
LABEL PLACEMENT DRAWING
SEE NOTE 2
FOR MORE INFO.
"H"
NOTE 2:
LABEL "B" SHOULD BE PLACED ON LABEL "A" AND IS P/N 53-0009 FOR ONE-HALF-TON
CAPACITY SYSTEMS, 53-0010 FOR ONE-TON CAPACITY SYSTEMS, 53-0011 FOR TWO-TON
CAPACITY SYSTEMS, AND 53-0012 FOR THREE-TON SYSTEMS.
JRM
"A"
"G"
"F"
"F"
"G"
"C"
"F"
"E"
"D"
"B"
"C"
"G"
