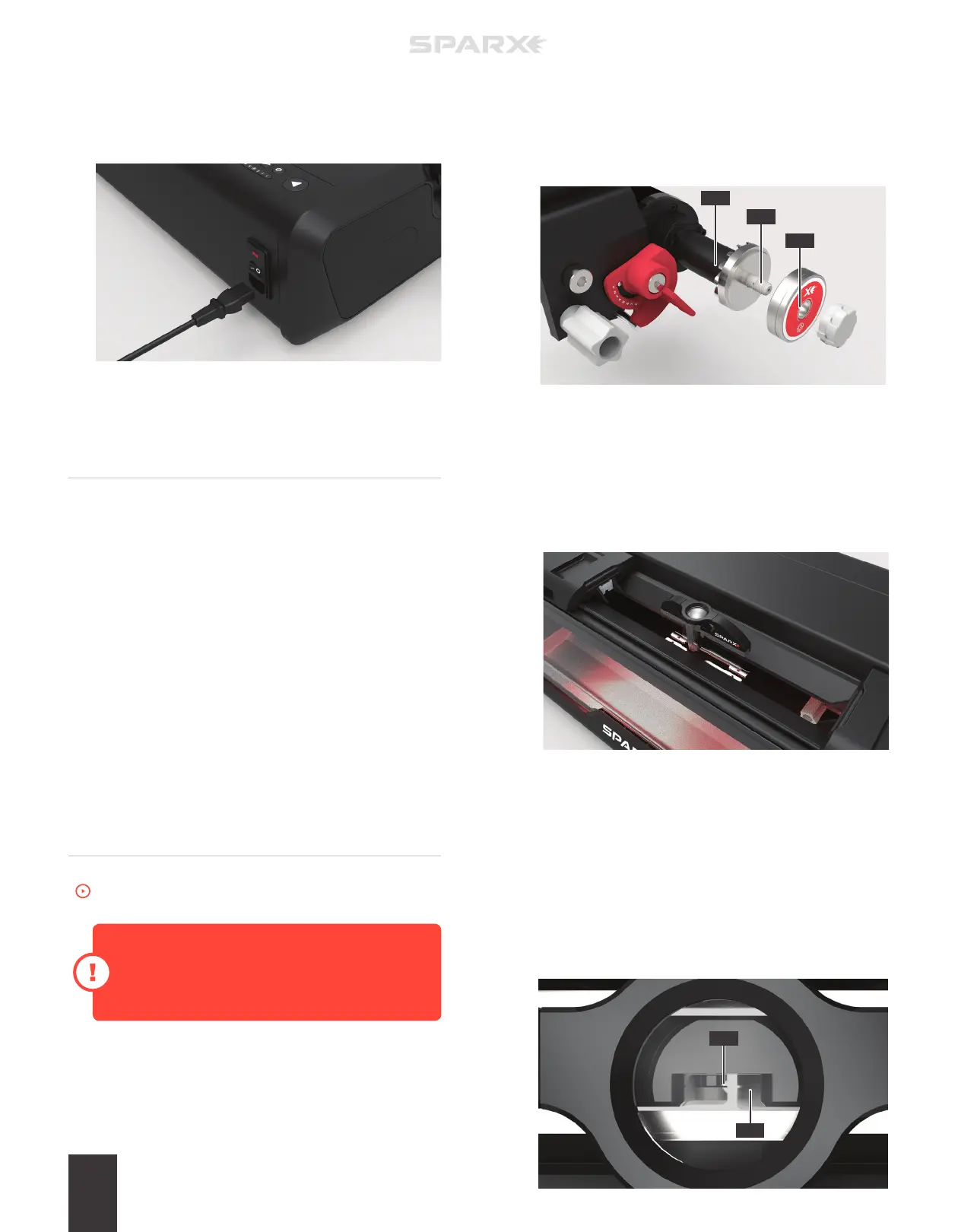

SETUP12
the install position, and the sharpener will play a “ready” tone.
While holding the Grinding Ring Shaft (C), unscrew the Thumb
Nut (A). Slide the Alignment Ring (B) onto the Grinding Ring
Shaft (C), with the label facing out. Replace and tighten the
Thumb Nut until hand-tight. Close the Glass Door.
2 INSTALL THE OPTICAL ALIGNMENT TOOL
Press down on the Clamp Lever to open the Skate Clamp.
Place the Optical Alignment Tool (with Sparx® logo facing
towards the user) into the Skate Clamp and let it fall into place.
Release the Clamp Lever.
3 INITIATE ALIGNMENT MODE
Press the
c
Alignment Button to send the Carriage to its
alignment position. When the Carriage is in place, a tone will
sound and the case will illuminate blue.
4 LOCATE THE TAB AND GROOVE
Look through the eyepiece of the Optical Alignment Tool and
locate the indicator tab (A) of the Optical Alignment Tool and
the groove (B) on the Alignment Ring.
6 PLUG IN THE POWER CORD
Plug the Power Cord into the Power Input Port on the back of
the sharpener. Plug the other end into a wall outlet. Toggle the
switch on the Power Input Port to the on position (I=on, 0=o).
INSTALLING THE
PV100 VACUUM
1 CONNECT THE SUCTION HOSE
Install the Vacuum near the sharpener, preferably at floor level,
or under the table that the sharpener is installed on. This is
recommended for noise suppression. Connect the included
Suction Hose directly from the Exhaust Port to one of the
vacuum’s inlet ports.
2 CONNECT THE FOOTSWITCH
If using an accessory Footswitch, connect the power cord for
the Vacuum to the Footswitch and connect the Footswitch
Power Cord to a wall outlet. Ensure that the power switch for
the Vacuum System is turned on. The Footswitch can then be
used to turn the Vacuum on during sharpening, and turn the
Vacuum o when sharpening is complete.
ALIGNMENT
To watch the How-To video, visit sparxhockey.com/alignment.
The Alignment process is required when you first
receive your Sparx® Sharpener and also after every
time the sharpener is moved and/or travels.
1 INSTALL THE ALIGNMENT RING
Open the Glass Door. The Carriage will automatically move into
For installation of the Auto-Switch, see included instructions.
A
A
B
B
C
