9.1.2 Variant with single mechanical seal and clamped casing cover
Table 22: This view applies to the following pump sizes:
32-125
32-160
40-125
40-160
50-125
50-160
65-125
65-160
80-160
80-200
100-160
100-200
125-200 150-200
[ Supplied in packaging units only
DA
AE
903.03
411.03
1M
903.04
411.04
903.01
411.01
102
102
411.01/.02/.03/.04
502.01
902.01/.50
903.01/.02/.03/.04
920.01
903.02
411.02
DA
AE
502.01
920.95
930.95
550.95
230
400.10
433
502.02
400.75
523
523
400.75
161
161
502.02
E
210
940.01 931.95
901.50
914.24
515
515
914.24
210
515
515
914.24
550.95
920.95
930.95
940.01
68-3.01/.02 68-3
902.11
801
920.11
341
341
68-3.01/.02
901.31
902.11
920.11
183
920.01
914.22
901.31
902.01
902.50

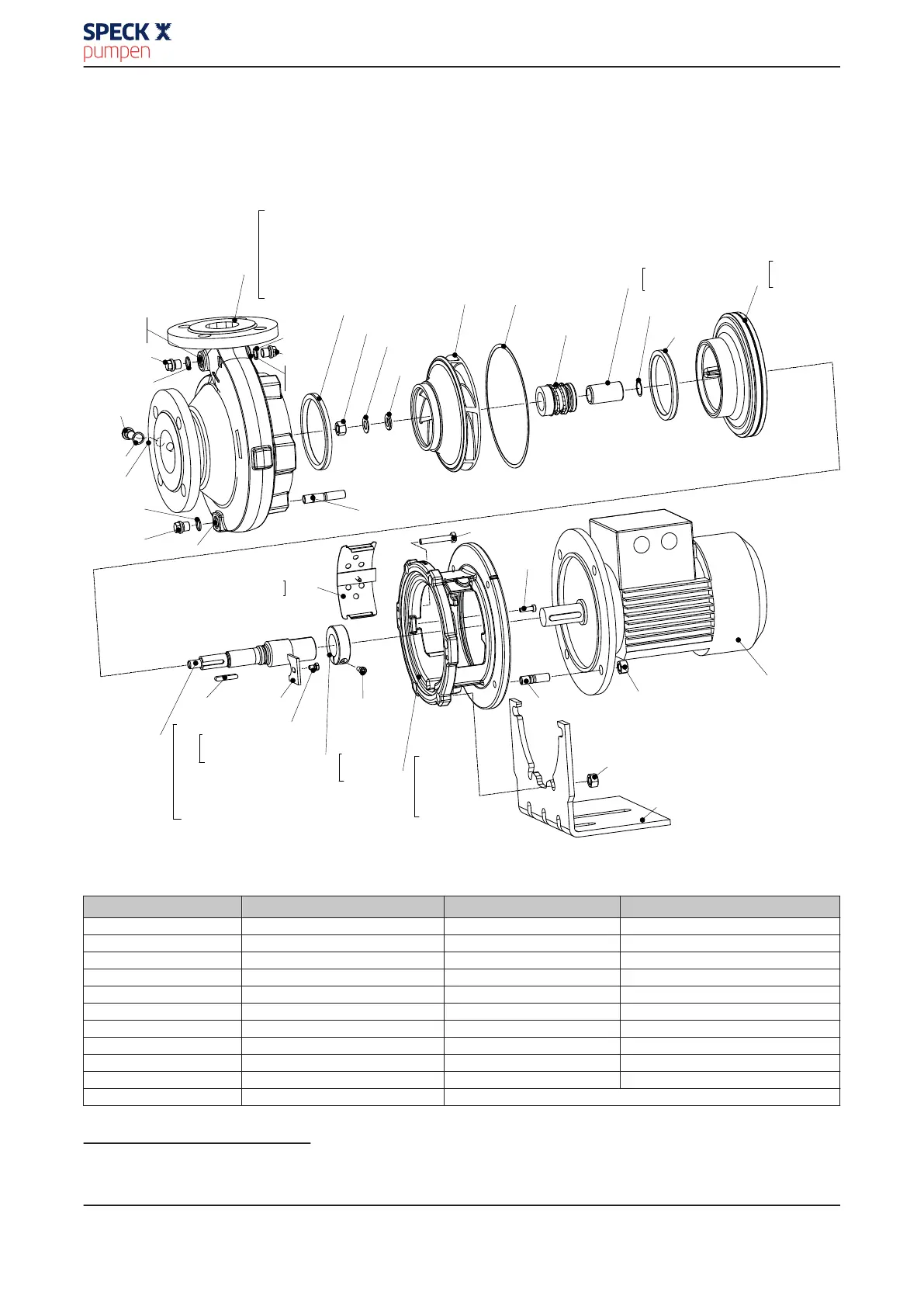

Fig. 12: Variant with single mechanical seal and clamped casing cover
Table 23: List of components
8)
Part No. Description Part No. Description
102 Volute casing 68-3.01/.02 Cover plate
146 Intermediate lantern 801 Flanged motor
161 Casing cover 901.30/.31/.50 Hexagon head bolt
183 Support foot 902.01/.06/.11/.15/.50/.51 Stud
210 Shaft 903.01/.02/.03/.04/.08 Screw plug
230 Shaft 914.22/.24 Hexagon socket head cap screw
341 Drive lantern 920.01/.06/.11/.15/.95 Hexagon nut
400.10/.75 Gasket 930.95 Spring washer
411.01/.02/.03/.04/.08 Joint ring 931.95 Lock washer
433 Mechanical seal 940.01 Key
502.01/.02 Casing wear ring Connections:
8)
Some individual components might not be applicable, depending on the size and material.
9 Related Documents
Normblock
