Speco D4VX - Keyboard Controller & PTZ Setup

32

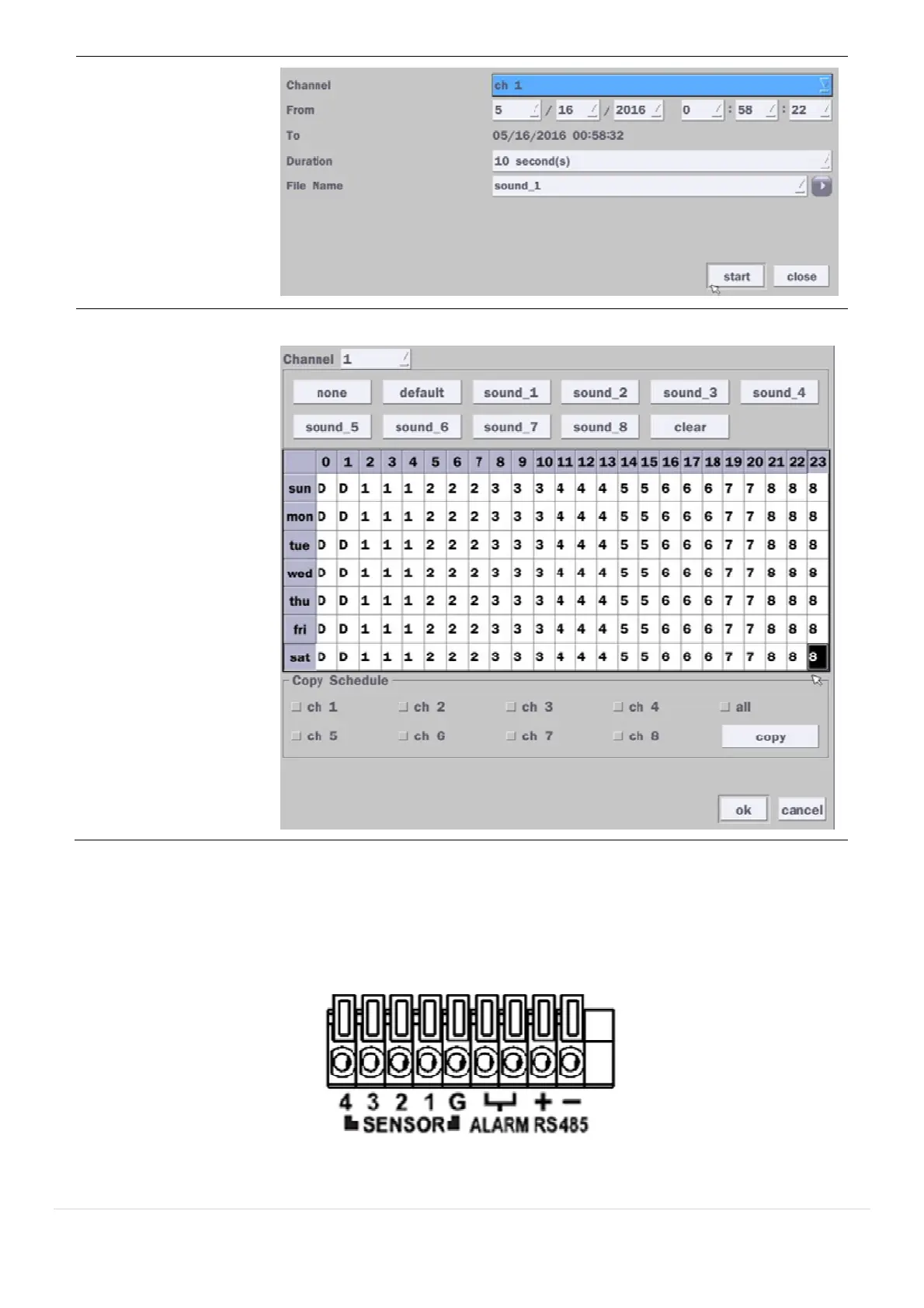

Schedule Schedule the sound file considering the expected situation.
4-4-2. Keyboard Controller & PTZ Setup
To control the PTZ functions of the camera, connect the PTZ controller to the RS-485 port on the back of
the chassis with CAT5 (or equivalent) cable.
① Connect the RS-485 cables of PTZ camera to the RS-485 port on the rear panel.
Figure 4.4.3. Device Mode Setup Screen
