8) ‘export’ and ‘e-mail’ icon will be activate for backup or mail notice
5-3-3. Time Line Search
The Calendar Search window is used to find the stored video by using the time line bar.

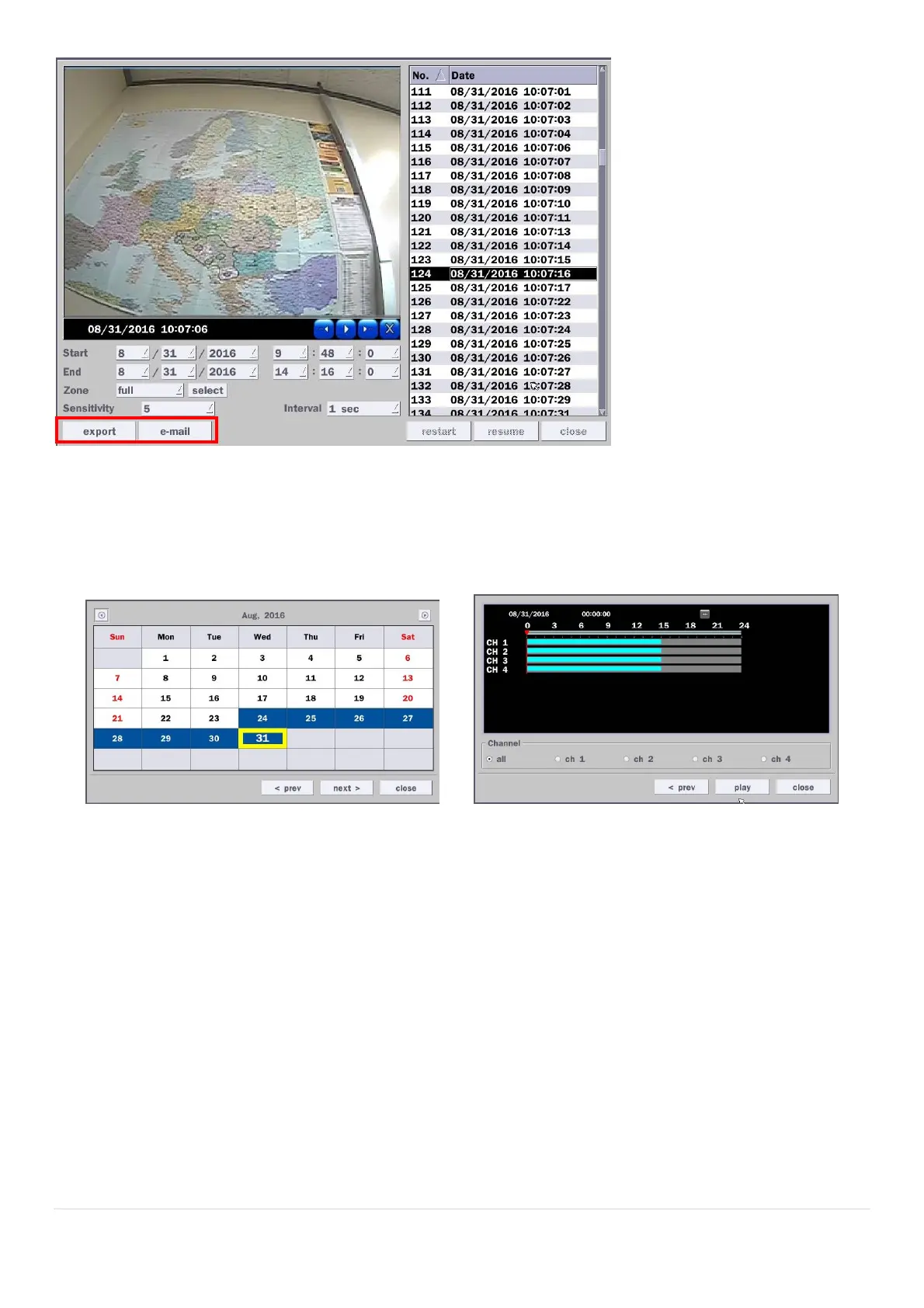

Figure 5.3.7. Calendar Screen Figure 5.3.8. Time-Line Search Screen
When the Timeline menu is selected, the user can see a calendar, which displays recorded dates with
highlights. Select a specific date and time. Click and drag the red time indicator bar to the desired hour.
User can select a specific minutes using a button in the above red box. Press the “play” button after
selecting the specific time. Press the “prev” to return to the Search window.
5-3-4. Event Search
The Event Search window is used to find stored video.
