EPOCH 35 GNSS System User Guide 17
Setup, Connection, and Cabling 2
2.4 Base setup
To set up a base receiver, you must:
1. Connect the radio cable securely to the GNSS receiver.
2. Set up the receiver on a tripod:
a. Place the receiver on the tripod.
b. Attach the external radio to the tripod.
c. Connect the antenna to the external radio.
d. Connect the radio cable between the radio and the receiver.
e. Connect the radio and the receiver to the external battery.

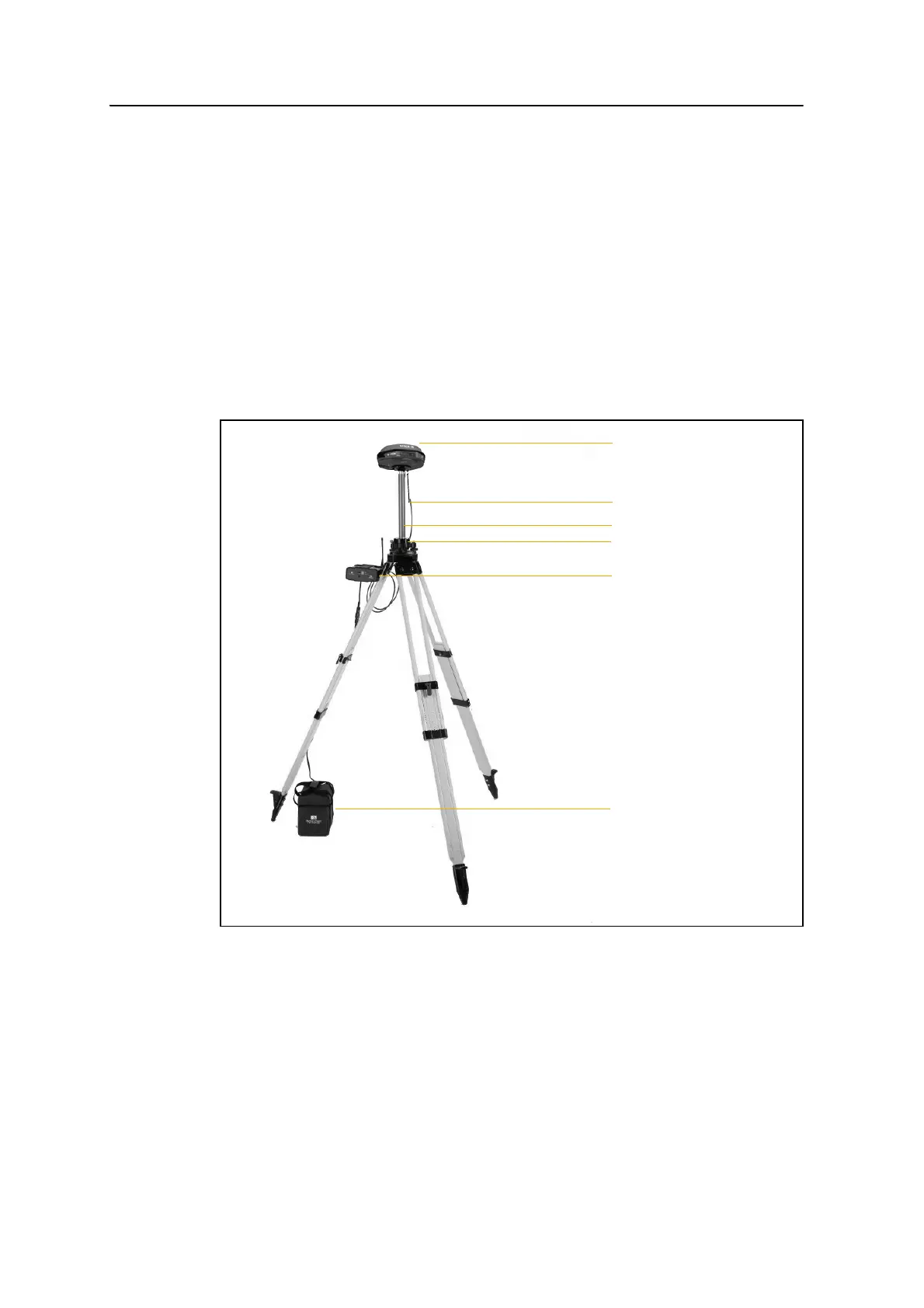

Figure 2.3 EPOCH 35 GNSS receiver, base setup
20.1 Other system components
The base receiver requires the PacificCrest PDL HPB external radio.
EPOCH 35 GNSS receiver
External radio
Tribrach
Extension pole
External battery
Radio cable
and antenna
