2.1 Rover setup
C
WARNING – The rover uses a rechargeable Lithium-ion battery. To avoid personal injury
or equipment damage, make sure that you read and understand the Safety Information
on page 5 at the front of this manual.
When you set up the rover receiver, securely connect a TNC cable by aligning the cable
connector with the receiver receptacle and then threading the cable connector onto
the receptacle until the cable fits snugly.
Figure 2.4 on page 18 shows the pole-mounted setup for the receiver. To mount the
receiver on a range pole:
1. Thread the receiver onto the range pole.
2. Attach the controller bracket to the pole.
3. Insert the controller into the bracket.

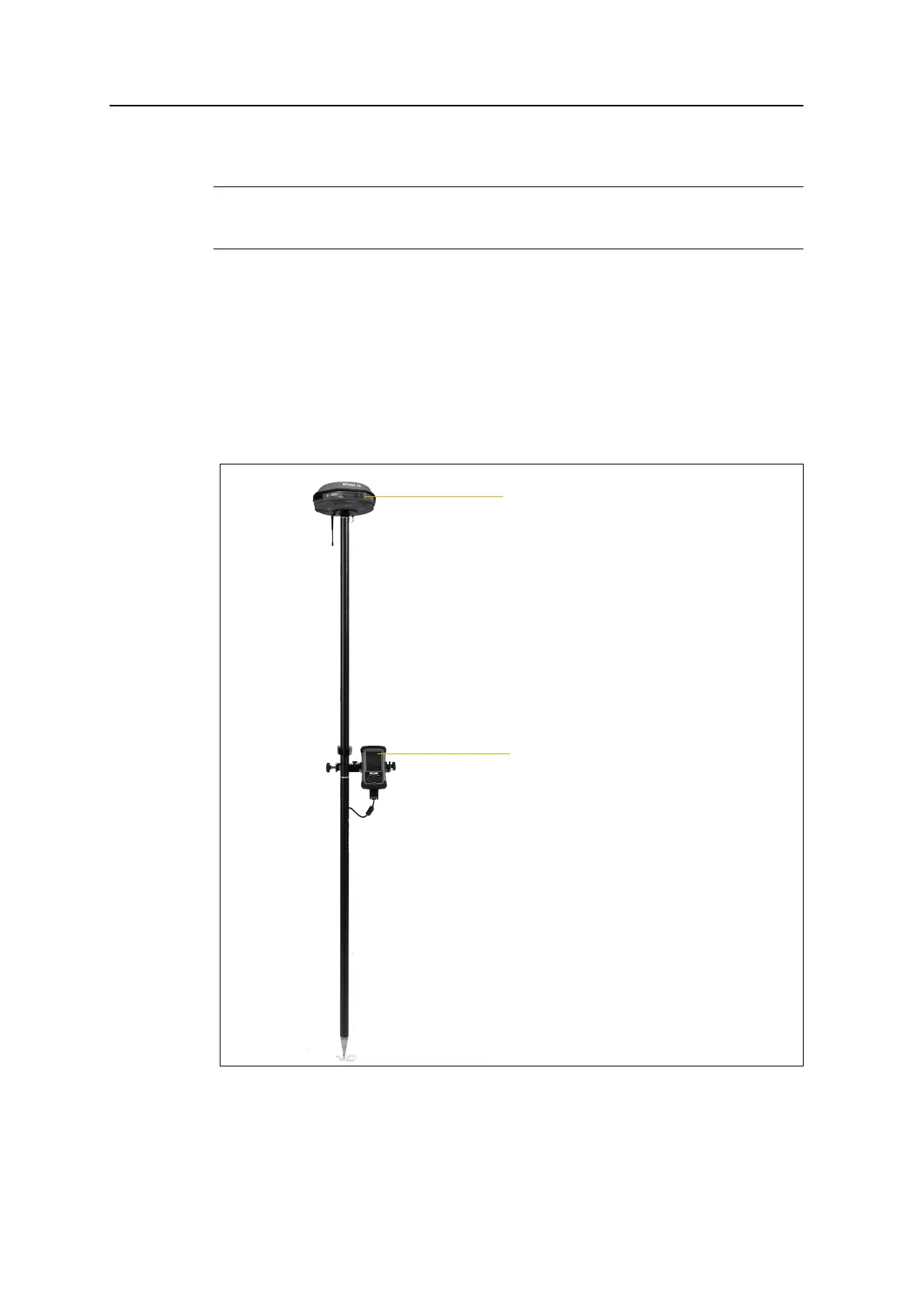

Figure 2.4 EPOCH 35 GNSS receiver set up as a rover receiver
EPOCH 35 GNSS receiver and antenna
Spectra Precision controller
