3.2 Main Unit Installation

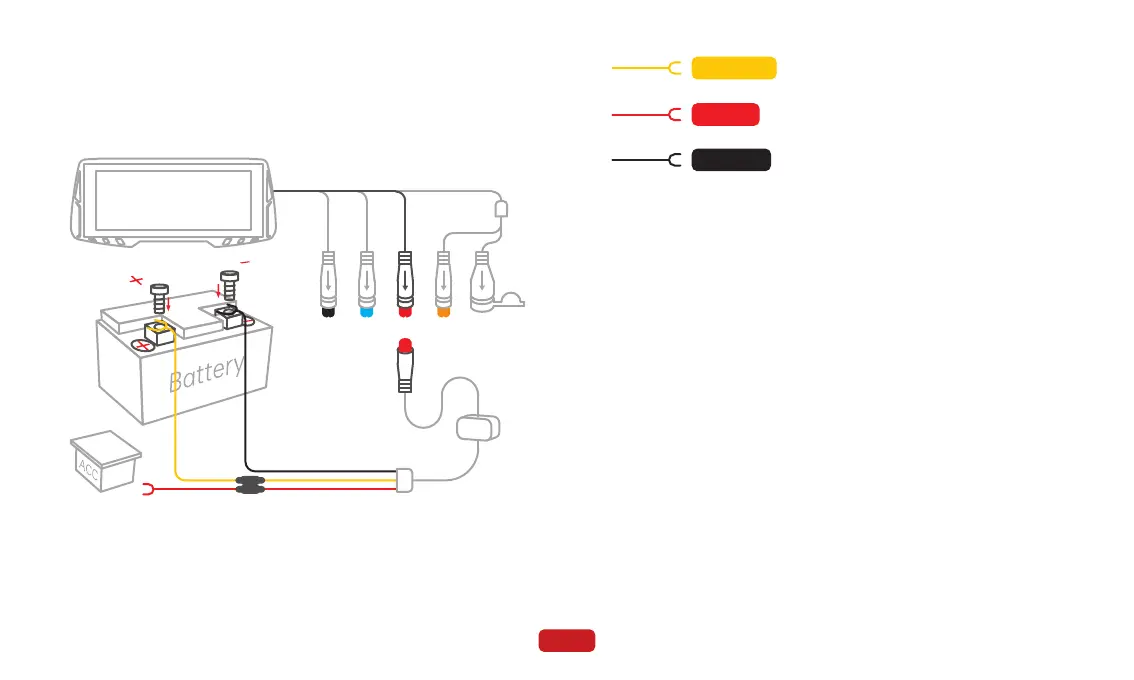

① Connect the power cable to the motorcycle's power output inter-
face (be careful not to reverse the polarity).
Yellow wire
Red wire
Black wire
Connect to the constant power supply of
the power box.
Connect to ACC power (only powered when
the ignition switch is turned on).
Ground wire.
② Connect the red interface of the other end of the power cable to
the red power interface of the main unit.
