EN
RECEIVER COMPATIBILITY
The DX5R transmitter is compatible with Spektrum™ DSMR
®
receivers. The inlcuded Spektrum SR6000T* Telemetry Surface
receiver is compatible with all Spektrum DSMR transmitters and
is also backwards compatible with DSM2 transmitters.
Receiver Installation and Setup
Install the Receiver in your vehicle using double-sided foam servo tape. Foam servo tape will hold the receiver in place and help isolate
it from vibrations.
Mount the antenna up and away from the vehicle. The higher up the antenna is, the better signal it will receive.
NOTICE: Do not cut or modify the antenna.

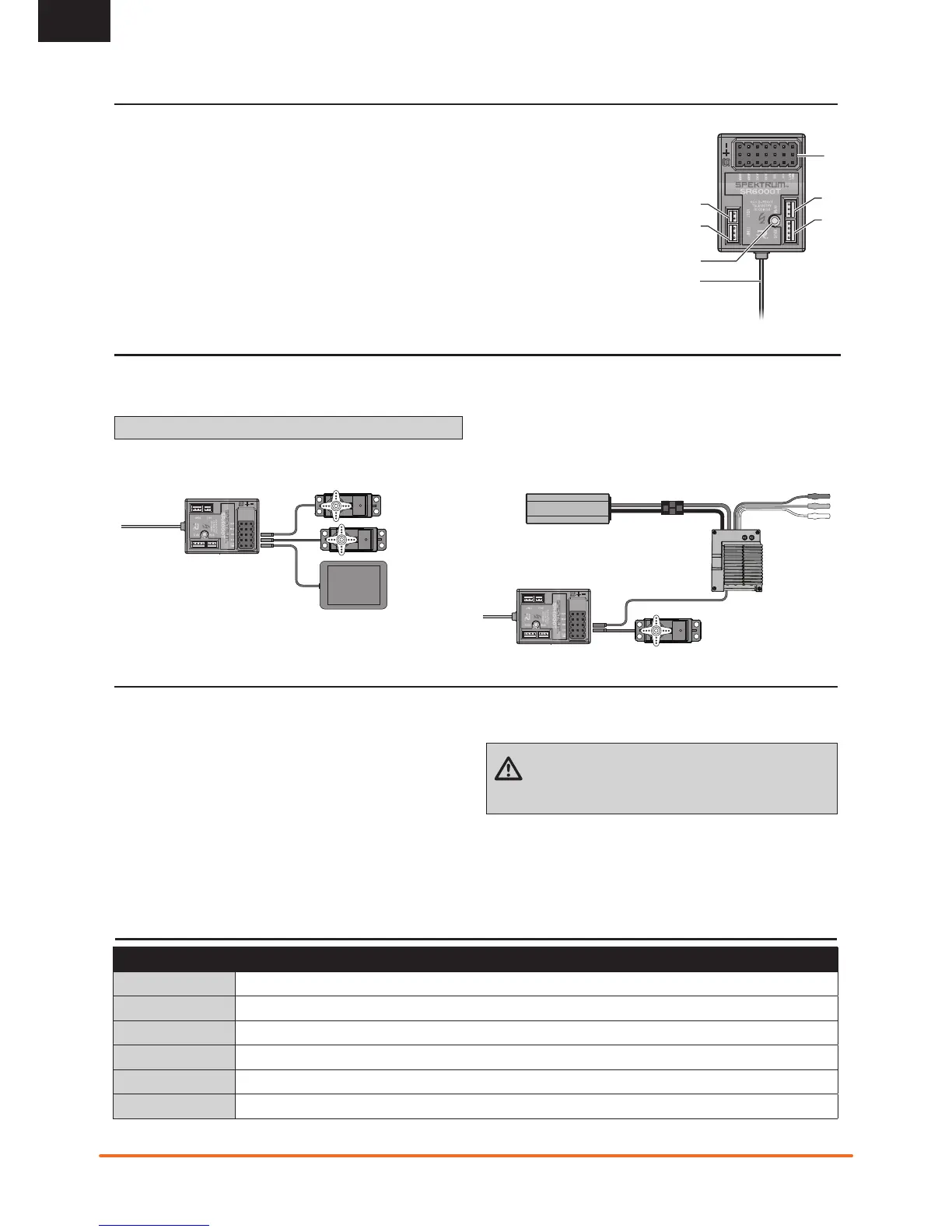

Powering the receiver with an ESC
Receiver
Battery To Motor
Electronic
Speed Control
Steering Servo
Steering Servo
Throttle Servo
Battery
Receiver
Powering the receiver with a separate receiver pack
1. Push and hold the bind button on the receiver while
powering up the receiver. The orange LED will flash
continuously, indicating that the receiver is in bind mode.
Tip: It is possible to use a bind blug in the BIND/BATT port if
desired.
2. With all channels in the desired preset failsafe position
(normally neutral), put your transmitter in bind mode.
Continue holding the failsafe position until the binding
process is complete.
3. The bind process is complete when the orange LED on
the receiver is solid.
CAUTION: When the bind process is complete,
the throttle and steering channels are active. Keep
hands and loose objects away from all spinning
parts on the vehicle.
Binding
A: Voltage sensor port
B: Temperature sensor port
C: Bind Button
D: Antenna
E: RPM sensor port
F: XBUS Port
G: Servo ports-
D
E
F
G
A
B
C
•Bind/Battery
•Steering
•Throttle
•Aux1-Aux4
*For more information on the SR6000T receiver, see the
receivers full manual.
PART # PARTS DESCRIPTION
SPM6719 Spektrum DX6R Transmitter Case
SPM9050 Grip Set, S, M, L: DX6R
SPM9052 Small Wheel w/Foam: DX6R
SPM9053 Wedges, 10/15 Deg: DX6R
SPM9055 Wheel Cam Set, 32/36 Deg: DX6R
SPM9058 Grip Attachment Tape: DX6R
OPTIONAL PARTS LIST
